Tandy 1000

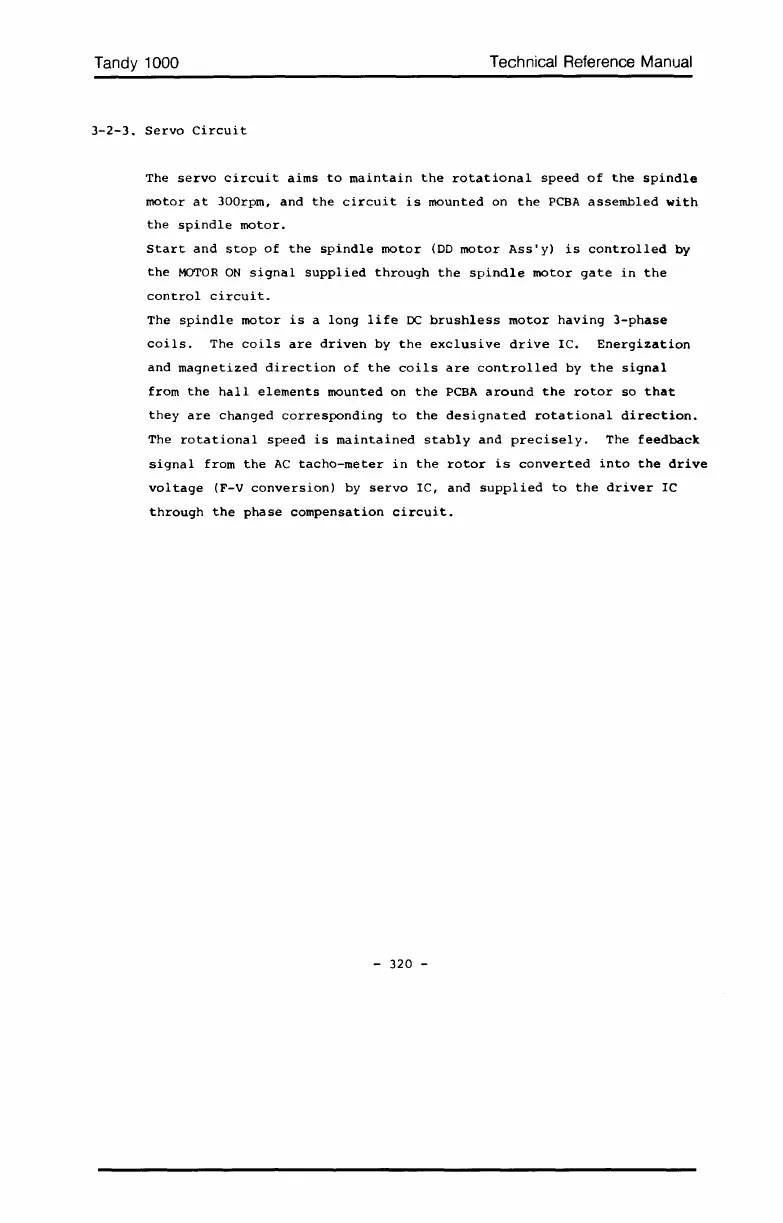

3-2-3.
Servo
Circuit
Technical Reference Manual
The
servo
circuit
aims
to
maintain
the
rotational
speed
of
the
spindle
motor
at
300rpm,
and
the
circuit
is
mounted
on
the
PCBA
assembled
with
the
spindle
motor.
Start
and
stop
of
the
spindle
motor
(DD
motor
Ass'y)
is
controlled
by
the
MOTOR
ON
signal
supplied
through
the
spindle
motor
gate
in
the
control
circuit.
The
spindle
motor
is
a
long
life
DC
brushless
motor
having
3-phase
coils.
The
coils
are
driven
by
the
exclusive
drive
IC.
Energization
and
magnetized
direction
of
the
coils
are
controlled
by
the
signal
from
the
hall
elements
mounted
on
the
PCBA
around
the
rotor
so
that
they
are
changed
corresponding
to
the
designated
rotational
direction.
The
rotational
speed
is
maintained
stably
and
precisely.
The
feedback
signal
from
the
AC
tacho-meter
in
the
rotor
is
converted
into
the
drive
voltage
(F-V
conversion)
by
servo
IC,
and
supplied
to
the
driver
IC
through
the
phase
compensation
circuit.
- 320 -
