Tandy 1000
Technical Reference Manual

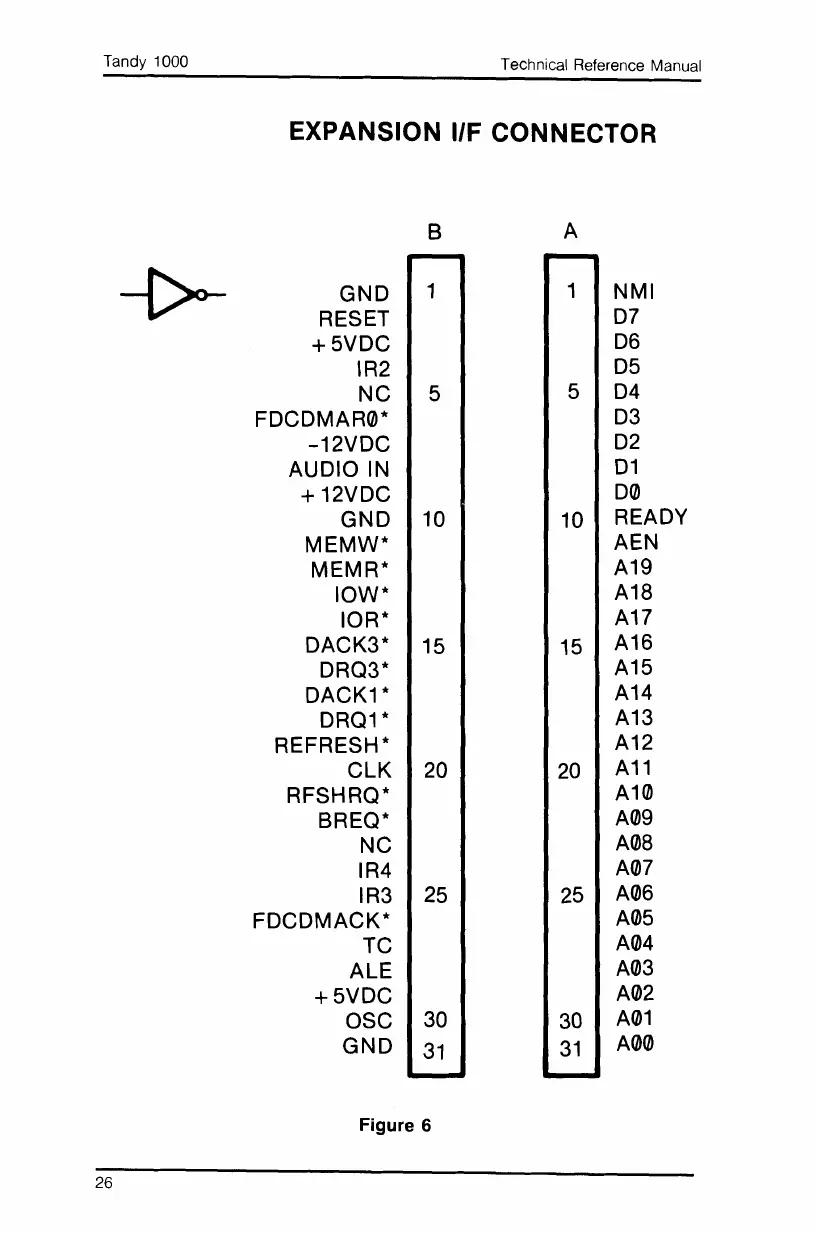

EXPANSION I/F CONNECTOR
B
A
-{»-
GND
1
1
NMI
RESET
07
+5VDC
06
IR2
05
NC
5
5
04
FDCDMAR0*
03
-12VDC
02
AUDIO
IN
01
+
12VDC
00
GND
10
10
READY
MEMW*
AEN
MEMR*
A19
IOW*
A18
IOR*
A17
DACK3*
15
15
A16
DRQ3*
A15
DACK1
*
A14
DRQ1*
A13
REFRESH*
A12
ClK
20
20
A11
RFSHRQ*
A10
BREQ*
A09
NC
A08
IR4
A07
IR3
25
25
A06
FDCDMACK*
A05
TC
A04
ALE
A03
+5VDC
A02
OSC
30
30
A01
GND
31
31
A00
Figure 6
