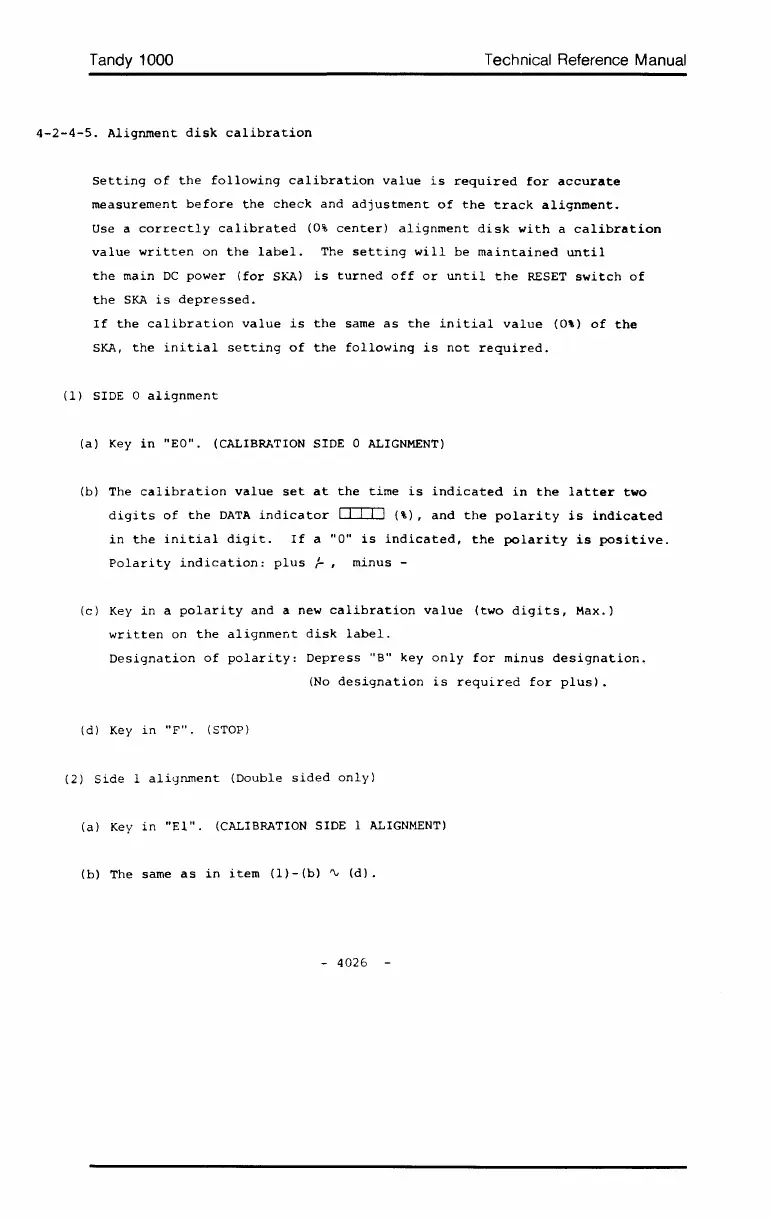

4-2-4-5. Alignment disk calibration
Technical Reference Manual
Setting of the following calibration value is required for accurate
measurement before the check and adjustment of the track alignment.
Use a correctly calibrated (0% center) alignment disk with a calibration
value written on the label. The setting will be maintained until
the main DC power (for SKA) is turned off or until the RESET switch of
the SKA is depressed.
If the calibration value is the same as the initial value (0\) of the
SKA, the initial setting of the following is not required.
(1) SIDE 0 alignment
(a) Key in "EO". (CALIBRATION SIDE 0 ALIGNMENT)
(b) The calibration value set at the time is indicated in the latter two
digits of the DATA indicator [I][I] (\), and the polarity is indicated
in the initial digit. If a "0" is indicated, the polarity is positive.
Polarity indication: plus
I
,-,
minus -
(c) Key in a polarity and a new calibration value (two digits, Max.)
written on the alignment disk label.
Designation of polarity: Depress "B" key only for minus designation,
(No designation is required for plus).
(d) Key in "P". (STOP)
(2) Side 1 alignment (Double sided only)
(al Key in "EI". (CALIBRATION SIDE I ALIGNMENT)
(b) The same as in item (l)-(b) ~ (d).
- 4026
