Tandy 1000 Technical Reference Manual

Tandy 1000
Technical Reference Manual

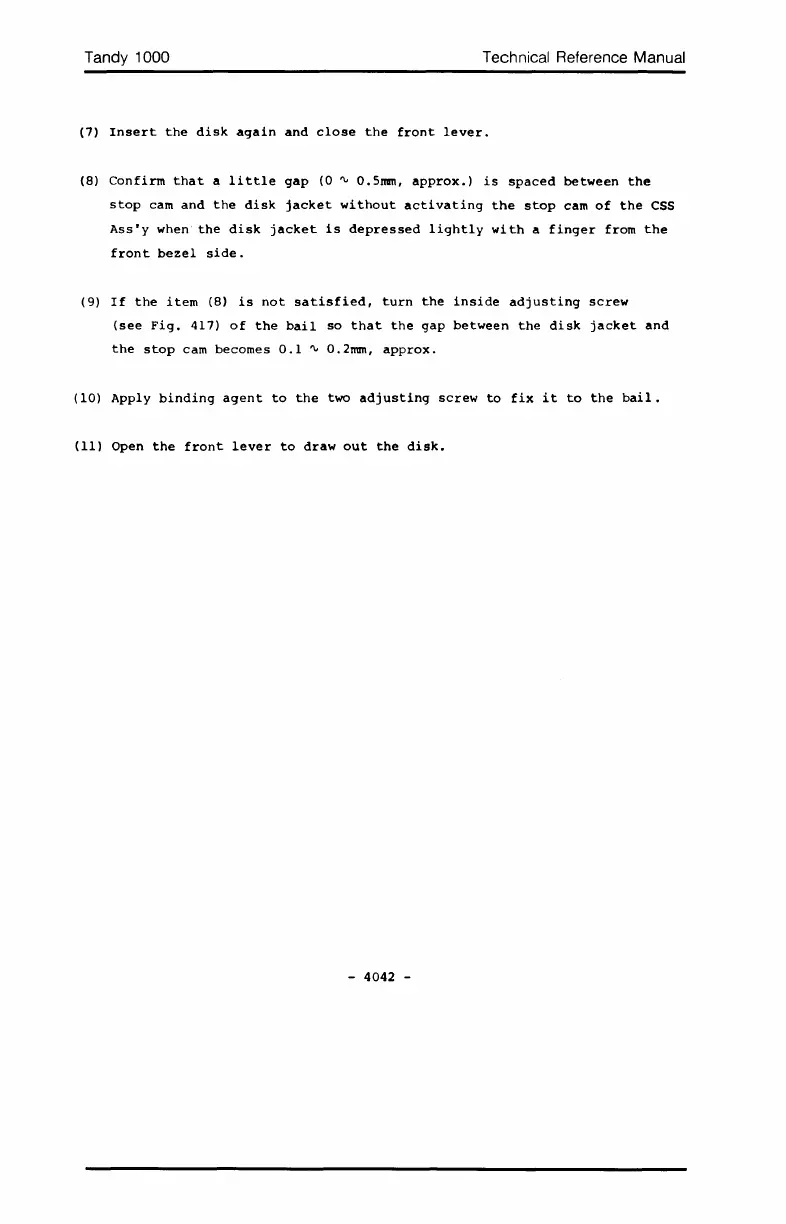

(7) Insert the disk again and close the front lever.
(8) Confirm that a little gap (0 ~ 0.5mm, approx.) is spaced between the
stop cam and the disk jacket without activating the stop cam of the CSS
ASs'y when the disk jacket is depressed lightly with a finger from the
front bezel side.
(9) If the item (8) is not satisfied, turn the inside adjusting screw
(see Fig. 417) of the bail so that the gap between the disk jacket and
the stop cam becomes 0.1 ~ 0.2mm, approx.
(10) Apply binding agent to the two adjusting screw to fix it to the bail.
(11) Open the front lever to draw out the disk.
- 4042 -

Tandy 1000 Specifications

General

Processor	Intel 8088
Processor Speed	4.77 MHz
RAM	128 KB (expandable to 640 KB)
Operating System	MS-DOS 2.11
Manufacturer	Tandy Corporation
Release Year	1984
Storage	Single or double 5.25" floppy disk drive (360 KB), optional hard drive
Sound	Tandy 3-voice sound
Ports	Parallel, Serial
Graphics	CGA (Color Graphics Adapter)
Graphics Modes	320x200, 640x200
