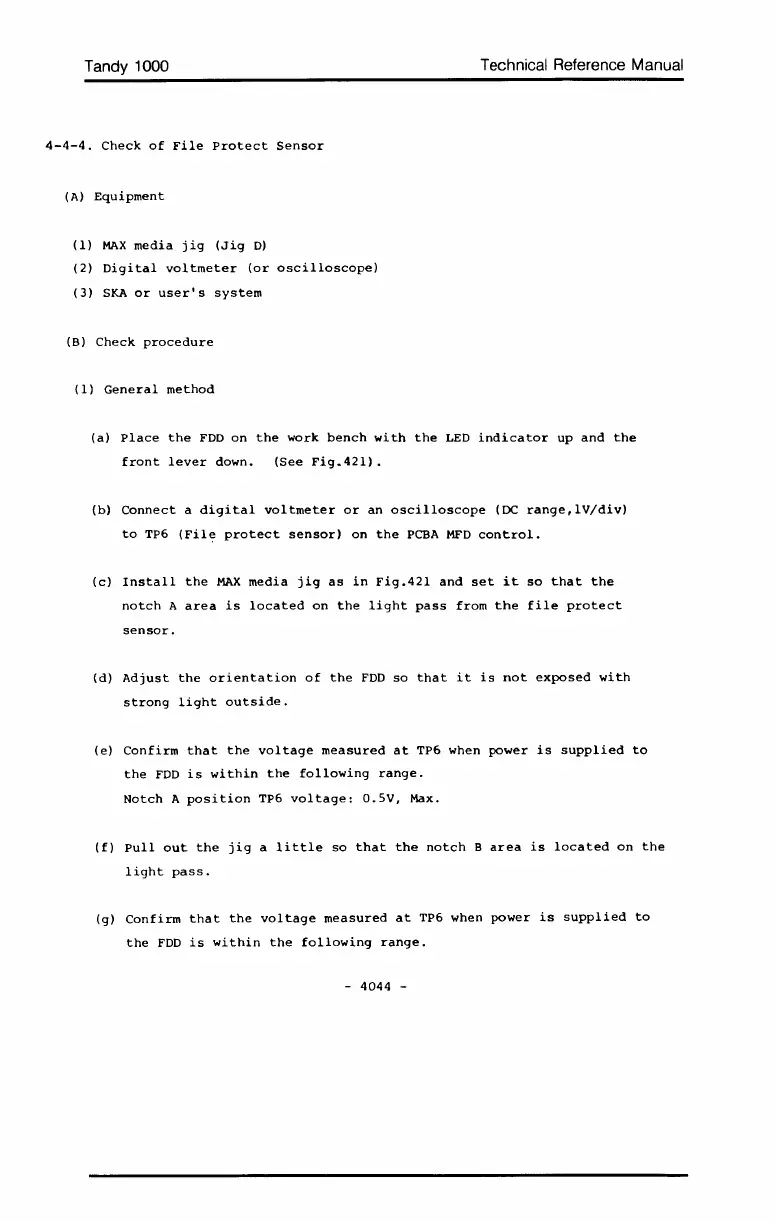

Tandy 1000
4-4-4.
Check
of
File
Protect
Sensor
(A)
Equipment
(1)
MAX
media
jig
(Jig
D)
(2)
Digital
voltmeter
(or
oscilloscope)
(3)
SKA
or
user's
system
(B)
Check
procedure
(1)
General
method
Technical Reference Manual
(a)
Place
the
FDD
on
the
work
bench
with
the
LED
indicator
up
and
the
front
lever
down.
(See
Fig.42l).
(b)
Connect
a
digital
voltmeter
or
an
oscilloscope
(DC
range,lV/div)
to
TP6
(File
protect
sensor)
on
the
PCBA
MFD
control.
(c)
Install
the
MAX
media
jig
as
in
Fig.42l
and
set
it
so
that
the
notch
A
area
is
located
on
the
light
pass
from
the
file
protect
sensor.
(d)
Adjust
the
orientation
of
the
FDD
so
that
it
is
not
exposed
with
strong
light
outside.
(e)
Confirm
that
the
voltage
measured
at
TP6
when
power
is
supplied
to
the
FDD
is
within
the
following
range.
Notch
A
position
TP6
voltage:
O.SV,
Max.
(f)
Pullout
the
jig
a
little
so
that
the
notch
B
area
is
located
on
the
light
pass.
(g)
Confirm
that
the
voltage
measured
at
TP6
when
power
is
supplied
to
the
FDD
is
within
the
following
range.
-
4044
-
