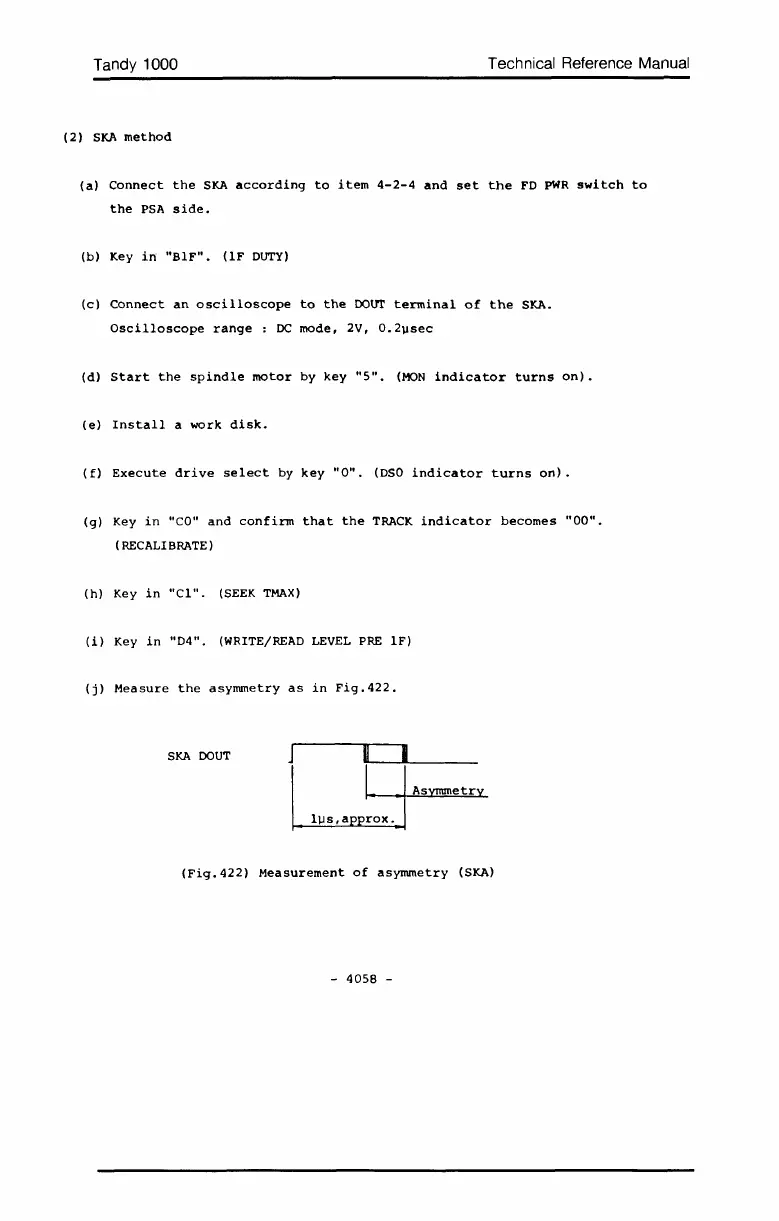

Tandy 1000
(2)
SKA
method
Technical Reference Manual
(a)
Connect
the
SKA
according
to
item
4-2-4
and
set
the
FD
PWR
switch
to
the
PSA
side.
(b) Key
in
"BIF".
(IF
DUTY)
(c)
Connect
an
oscilloscope
to
the
DOUT
terminal
of
the
SKA.
Oscilloscope
range:
DC
mode, 2V,
0.2~sec
(d)
Start
the
spindle
motor
by
key
"5".
(OON
indicator
turns
on).
(e)
Install
a
work
disk.
(f)
Execute
drive
select
by
key
"0".
(DSO
indicator
turns
on).
(g) Key
in
"CO"
and
confirm
that
the
TRACK
indicator
becomes
"00".
(RECALIBRATE)
(h)
Key
in
"CI".
(SEEK
TMAX)
(i)
Key
in
"04".
(WRITE/READ
LEVEL
PRE
IF)
(j)
Measure
the
asymmetry
as
in
Fig.422.
SKA
DOUT
IlJs,a
rox.
(Fig.422)
Measurement
of
asymmetry
(SKA)
-
4058
-
