Tandy 1000 Technical Reference Manual

Tandy 1000
Track 00 stopper
fixing screw
Head carriage ASs'y
Technical Reference Manual
Track 00 stopper

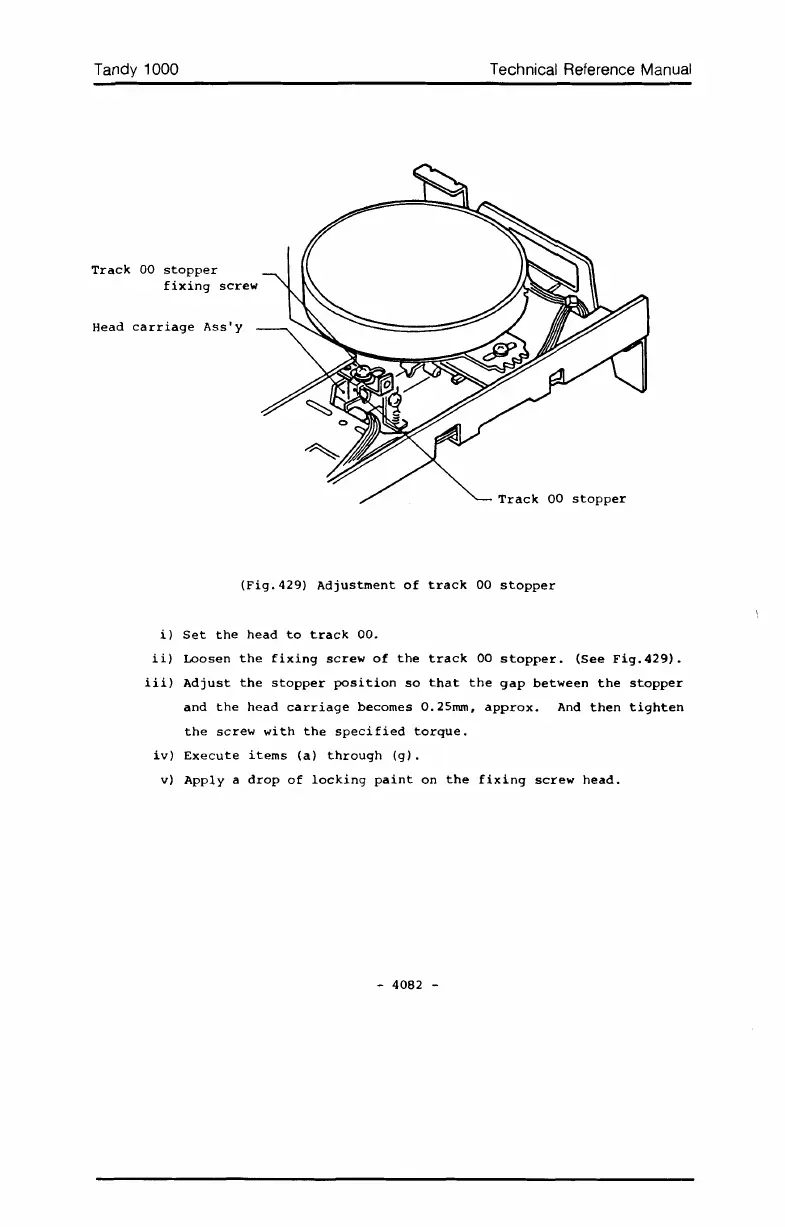

(Fig.429) Adjustment of track 00 stopper
i) Set the head to track 00.
ii) Loosen the fixing screw of the track 00 stopper. (See Fig.429).
iii) Adjust the stopper position so that the gap between the stopper
and the head carriage becomes 0.25mrn, approx. And then tighten
the screw with the specified torque.
iv) Execute items (a) through (g).
v) Apply a drop of locking paint on the fixing screw head.
- 4082 -

Tandy 1000 Specifications

General

Processor	Intel 8088
Processor Speed	4.77 MHz
RAM	128 KB (expandable to 640 KB)
Operating System	MS-DOS 2.11
Manufacturer	Tandy Corporation
Release Year	1984
Storage	Single or double 5.25" floppy disk drive (360 KB), optional hard drive
Sound	Tandy 3-voice sound
Ports	Parallel, Serial
Graphics	CGA (Color Graphics Adapter)
Graphics Modes	320x200, 640x200
