Tandy 1000 Technical Reference Manual

Tandy 1000
Technical Reference Manual

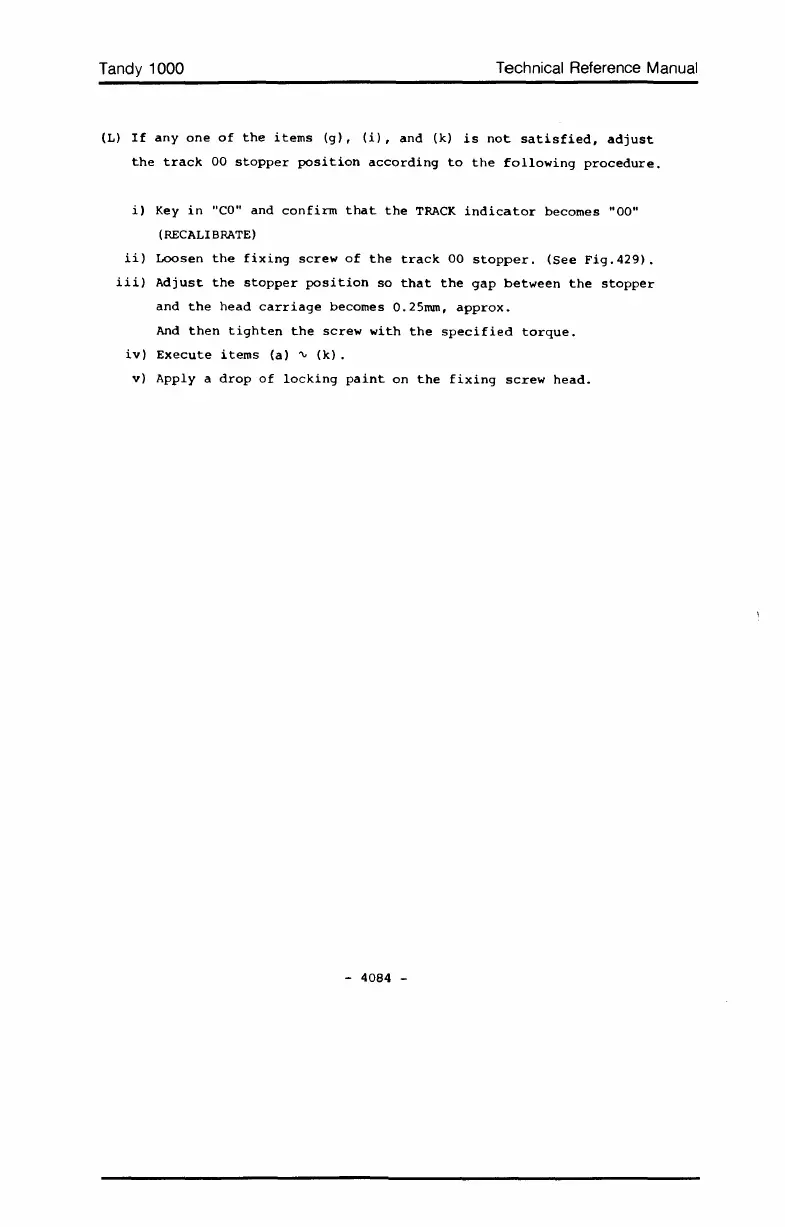

(L) If anyone of the items (g), (i), and (k) is not satisfied, adjust
the track 00 stopper position according to the following procedure.
i) Key in "CO" and confirm that the TRACK indicator becomes "00"
(RECALIBRATE)
ii) Loosen the fixing screw of the track 00 stopper. (See Fig.429).
iii) Adjust the stopper position so that the gap between the stopper
and the head carriage becomes 0.25mm, approx.
And then tighten the screw with the specified torque.
iv) Execute items (a) ~ (k).
v) Apply a drop of locking paint on the fixing screw head.
- 4084 -

Tandy 1000 Specifications

General

Processor	Intel 8088
Processor Speed	4.77 MHz
RAM	128 KB (expandable to 640 KB)
Operating System	MS-DOS 2.11
Manufacturer	Tandy Corporation
Release Year	1984
Storage	Single or double 5.25" floppy disk drive (360 KB), optional hard drive
Sound	Tandy 3-voice sound
Ports	Parallel, Serial
Graphics	CGA (Color Graphics Adapter)
Graphics Modes	320x200, 640x200
