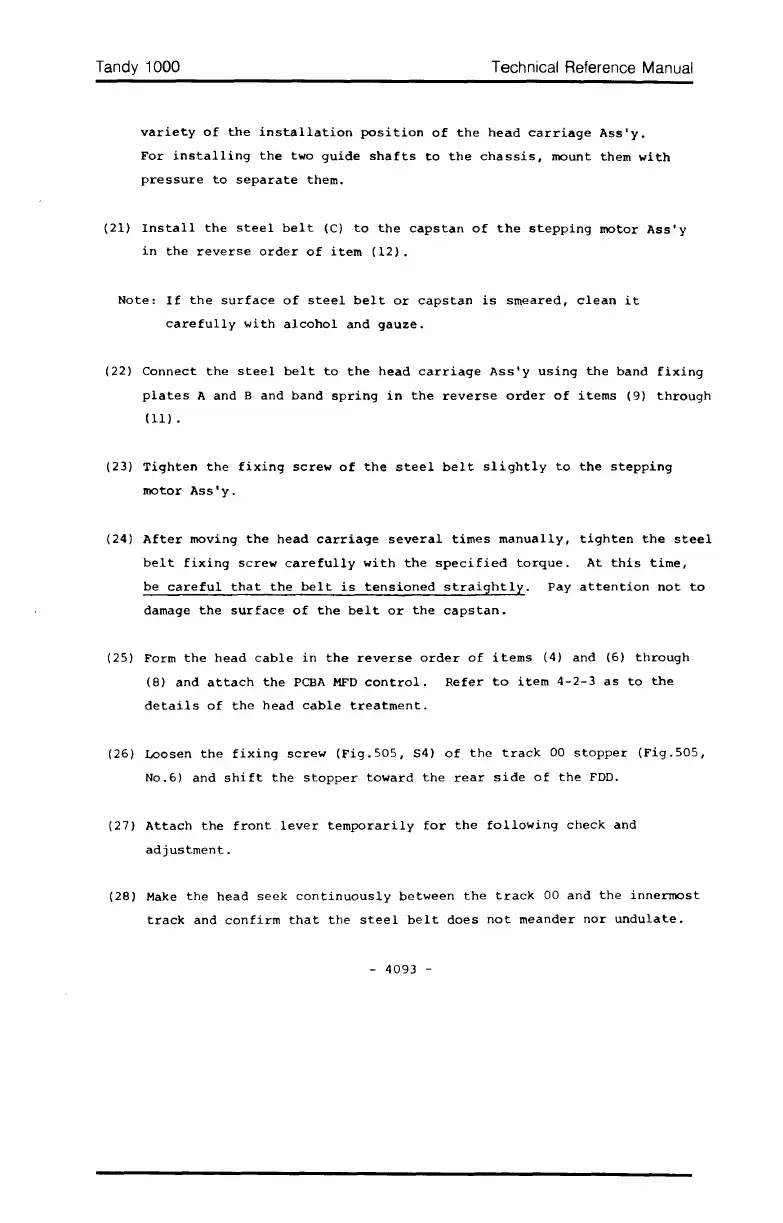

Tandy 1000
Technical Reference Manual
variety
of
the
installation
position
of
the
head
carriage
Ass'y.
For
installing
the
two
guide
shafts
to
the
chassis,
mount
them
with
pressure
to
separate
them.
(21)
Install
the
steel
belt
(C)
to
the
capstan
of
the
stepping
motor
Ass'y
in
the
reverse
order
of
item
(12).
Note:
If
the
surface
of
steel
belt
or
capstan
is
smeared,
clean
it
carefully
with
alcohol
and
gauze.
(22)
Connect
the
steel
belt
to
the
head
carriage
Ass'y
using
the
band
fixing
plates
A
and
B
and
band
spring
in
the
reverse
order
of
items
(9)
through
(ll)
.
(23)
Tighten
the
fixing
screw
of
the
steel
belt
slightly
to
the
stepping
motor
ASs'y.
(24)
After
moving
the
head
carriage
several
times
manually,
tighten
the
steel
belt
fixing
screw
carefully
with
the
specified
torque.
At
this
time,
be
careful
that
the
belt
is
tensioned
straightly.
Pay
attention
not
to
damage
the
surface
of
the
belt
or
the
capstan.
(25) Form
the
head
cable
in
the
reverse
order
of
items
(4)
and
(6)
through
(8)
and
attach
the
PCBA
MFD
control.
Refer
to
item
4-2-3
as
to
the
details
of
the
head
cable
treatment.
(26)
Loosen
the
fixing
screw
(Fig.505,
54)
of
the
track
00
stopper
(Fig.505,
No.6)
and
shift
the
stopper
toward
the
rear
side
of
the
FDD.
(27)
Attach
the
front
lever
temporarily
for
the
following
check
and
adjustment.
(28)
Make
the
head
seek
continuously
between
the
track
00
and
the
innermost
track
and
confirm
that
the
steel
belt
does
not
meander
nor
undulate.
-
