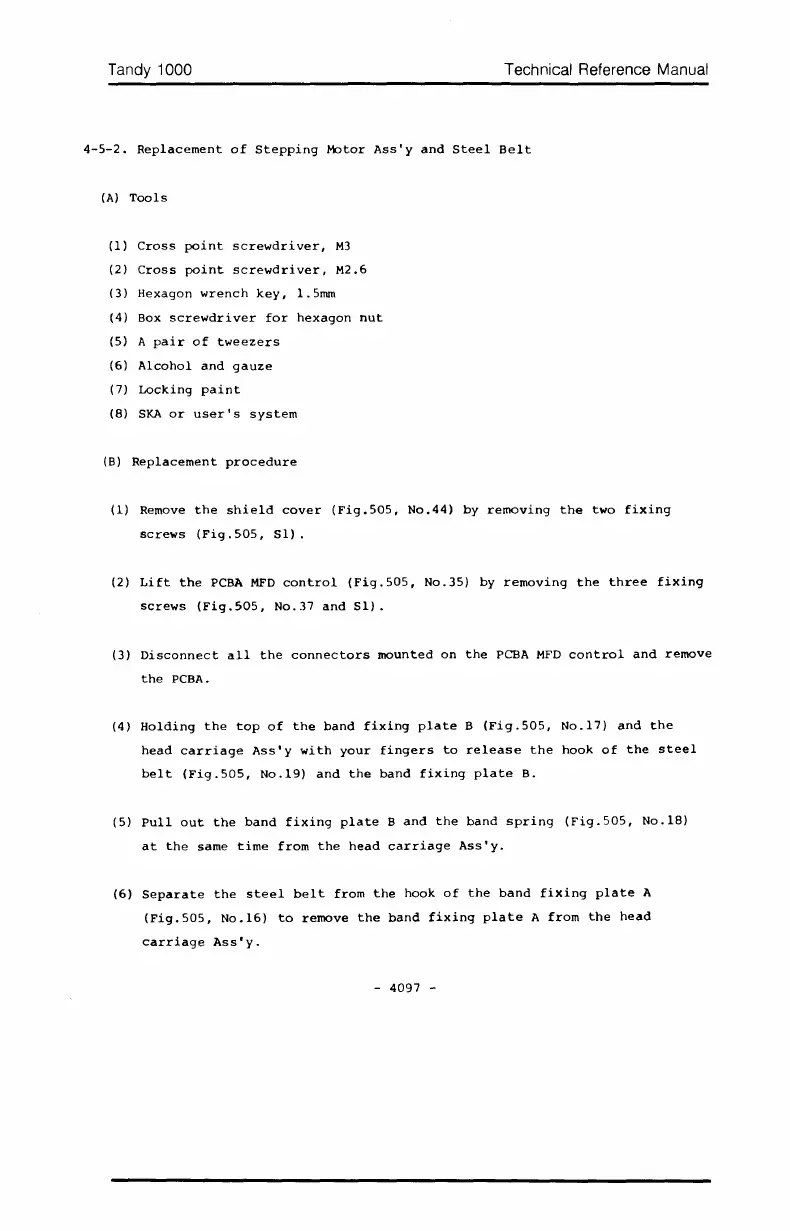

4-5-2. Replacement of Stepping Motor ASS'y and Steel Belt
(A) Tools
(1) Cross point screwdriver,
M3
(2)
Cross point screwdriver, M2.6
(3)
Hexagon wrench key, 1.Smm
(4) Box
screwdriver for hexagon nut
(5) A pair of tweezers
(6) Alcohol and gauze
(7) Locking paint
(8) SKA or user's system
(B) Replacement procedure
(1) Remove the shield cover (Fig.50S. No.44) by removing the two fixing
screws (Fig.50S, Sl).
(2) Lift the peBA MFD control (Fig. 505, No.35) by removing the three fixing
screws (Fig.50S, No.37 and Sl).
(3) Disconnect all the connectors mounted on the PCBA MFD control and remove
the PCBA.
(4) Holding the top of the band fixing plate B (Fig.50S, No.17) and the
head carriage ASs'y with your fingers to release the hook of the steel
belt (Fig.505, No.19) and the band fixing plate B.
(5)
Pullout the band fixing plate B and the band spring (Fig.SOS, No.18)
at the same time from the head carriage Ass'y.
(6) Separate the steel belt from the hook of the band fixing plate A
(Fig. 505, No.16) to remove the band fixing plate A from the head
carriage Ass'y.
- 4097 -
