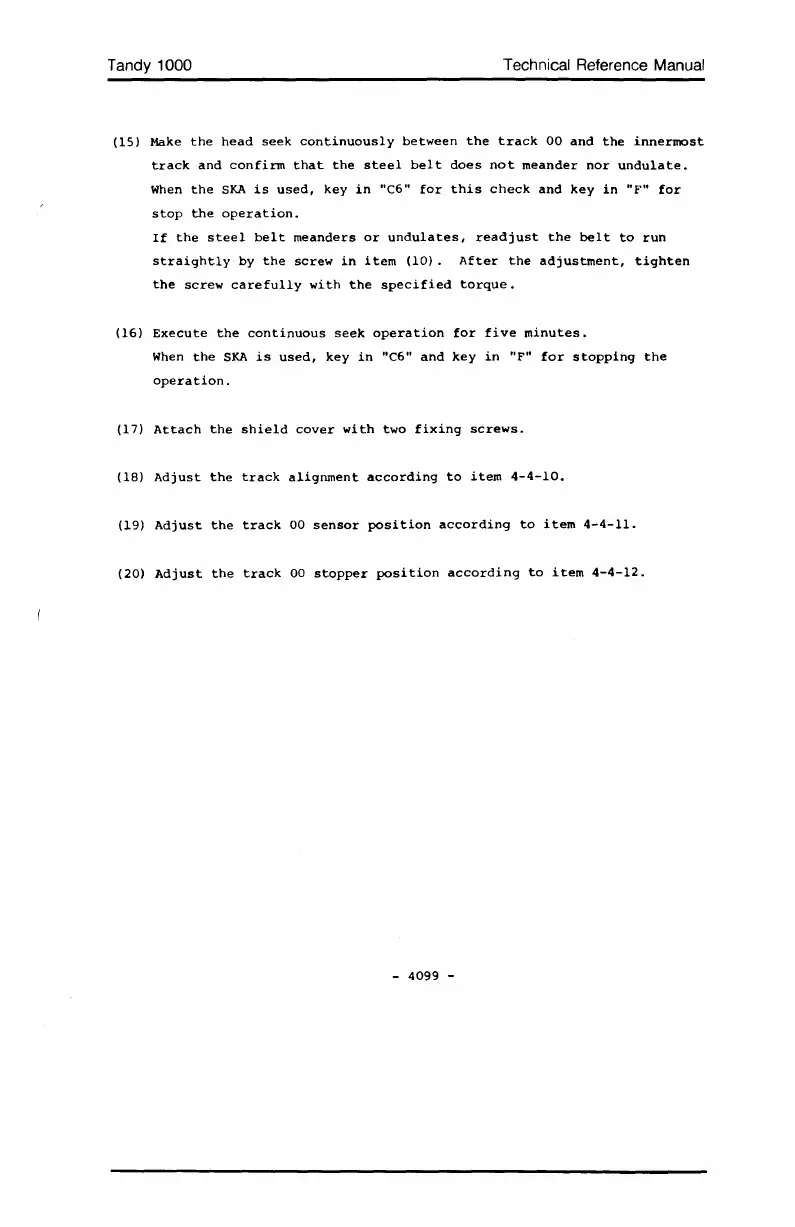

(15) Make the head seek continuously between the track 00 and the innermost
track and confirm that the steel belt does not meander nor undulate.
When the SKA is used, key in "C6" for this check and key in "F" for
stop the operation.
If the steel belt meanders or undulates, readjust the belt to run
straightly by the screw in item (10). After the adjustment, tighten
the screw carefully with the specified torque.
(16) Execute the continuous seek operation for five minutes.
When the SKA is used, key in "C6" and key in "F" for stopping the
operation.
(17) Attach the shield cover with two fixing screws.
(18) Adjust the track alignment according to item 4-4-10.
(19) Adjust the track 00 sensor position according to item 4-4-11.
(20) Adjust the track 00 stopper position according to item 4-4-12.
- 4099 -

Tandy 1000 Specifications

General

Processor	Intel 8088
Processor Speed	4.77 MHz
RAM	128 KB (expandable to 640 KB)
Operating System	MS-DOS 2.11
Manufacturer	Tandy Corporation
Release Year	1984
Storage	Single or double 5.25" floppy disk drive (360 KB), optional hard drive
Sound	Tandy 3-voice sound
Ports	Parallel, Serial
Graphics	CGA (Color Graphics Adapter)
Graphics Modes	320x200, 640x200
