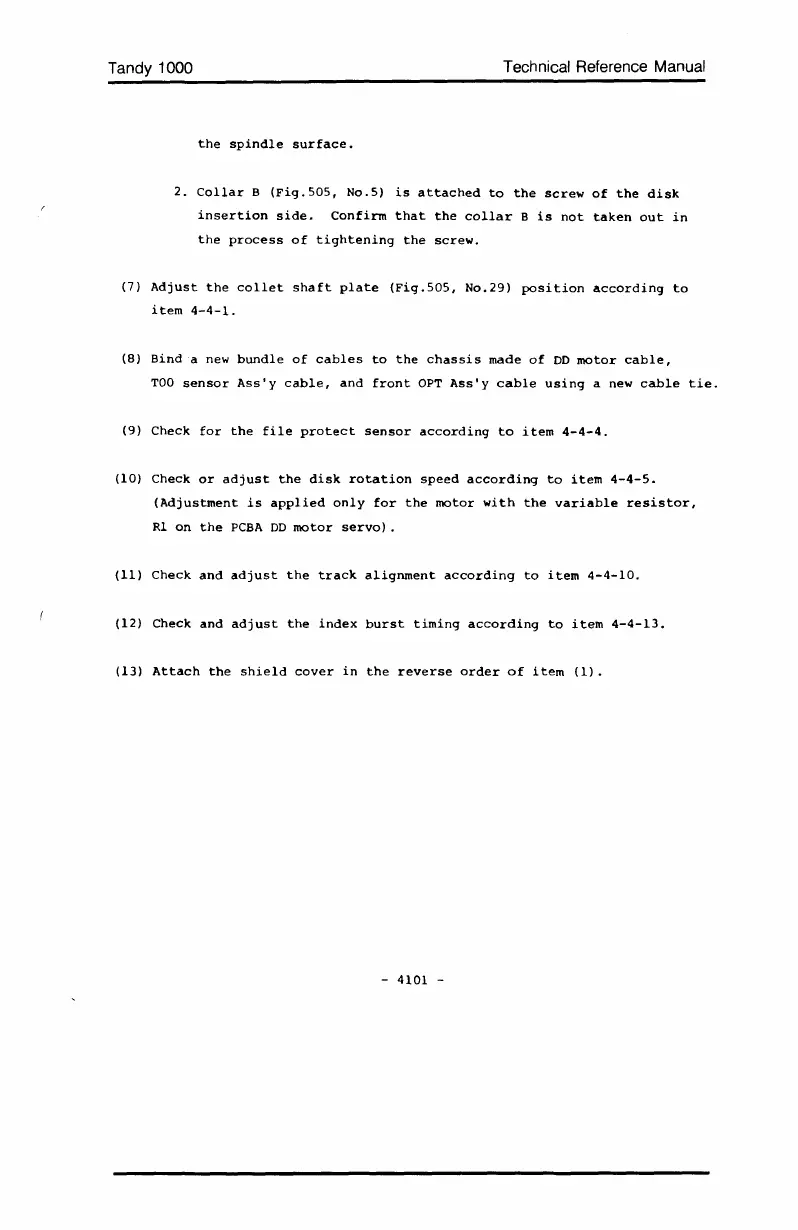

Tandy 1000
the
spindle
surface.
Technical Reference Manual
2.
Collar
B
(Fig.505,
No.5)
is
attached
to
the
screw
of
the
disk
insertion
side.
Confirm
that
the
collar
B
is
not
taken
out
in
the
process
of
tightening
the
screw.
(7)
Adjust
the
collet
shaft
plate
(Fig.50S,
No.29)
position
according
to
item
4-4-1.
(8)
Binda
new
bundle
of
cables
to
the
chassis
made
of
DO
motor
cable,
TOO
sensor
ASs'y
cable,
and
front
OPT
Ass'y
cable
using
a new
cable
tie.
(9)
Check
for
the
file
protect
sensor
according
to
item
4-4-4.
(10)
Check
or
adjust
the
disk
rotation
speed
according
to
item
4-4-5.
(Adjustment
is
applied
only
for
the
motor
with
the
variable
resistor,
Rl
on
the
PCBA
DO
motor
servo).
(11)
Check
and
adjust
the
track
alignment
according
to
item
4-4-10.
(12)
Check
and
adjust
the
index
burst
timing
according
to
item
4-4-13.
(13)
Attach
the
shield
cover
in
the
reverse
order
of
item
(1).
- 4101 -
