Tandy 1000 Technical Reference Manual

Tandy 1000

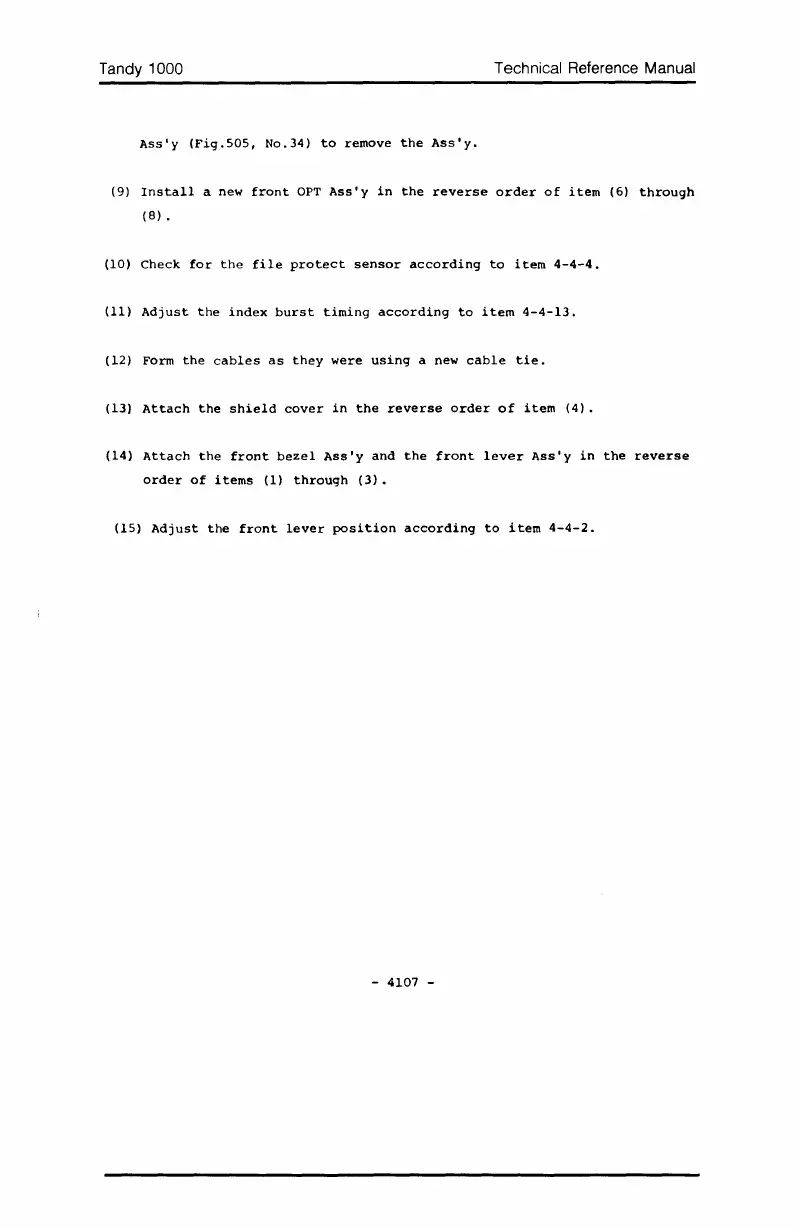

Ass'y (Fig.505, No.34) to remove the Ass'y.
Technical Reference Manual
(9) Install a new front OPT Ass'y in the reverse order of item (6) through
(8) •
(10) Check for the file protect sensor according to item 4-4-4.
(11) Adjust the index burst timing according to item 4-4-13.
(12) Form the cables as they were using a new cable tie.
(13) Attach the shield cover in the reverse order of item (4).
(14) Attach the front bezel Ass'y and the front lever Ass'y in the reverse
order of items (1) through (3).
(15) Adjust the front lever position according to item 4-4-2.
- 4107 -

Tandy 1000 Specifications

General

Processor	Intel 8088
Processor Speed	4.77 MHz
RAM	128 KB (expandable to 640 KB)
Operating System	MS-DOS 2.11
Manufacturer	Tandy Corporation
Release Year	1984
Storage	Single or double 5.25" floppy disk drive (360 KB), optional hard drive
Sound	Tandy 3-voice sound
Ports	Parallel, Serial
Graphics	CGA (Color Graphics Adapter)
Graphics Modes	320x200, 640x200
