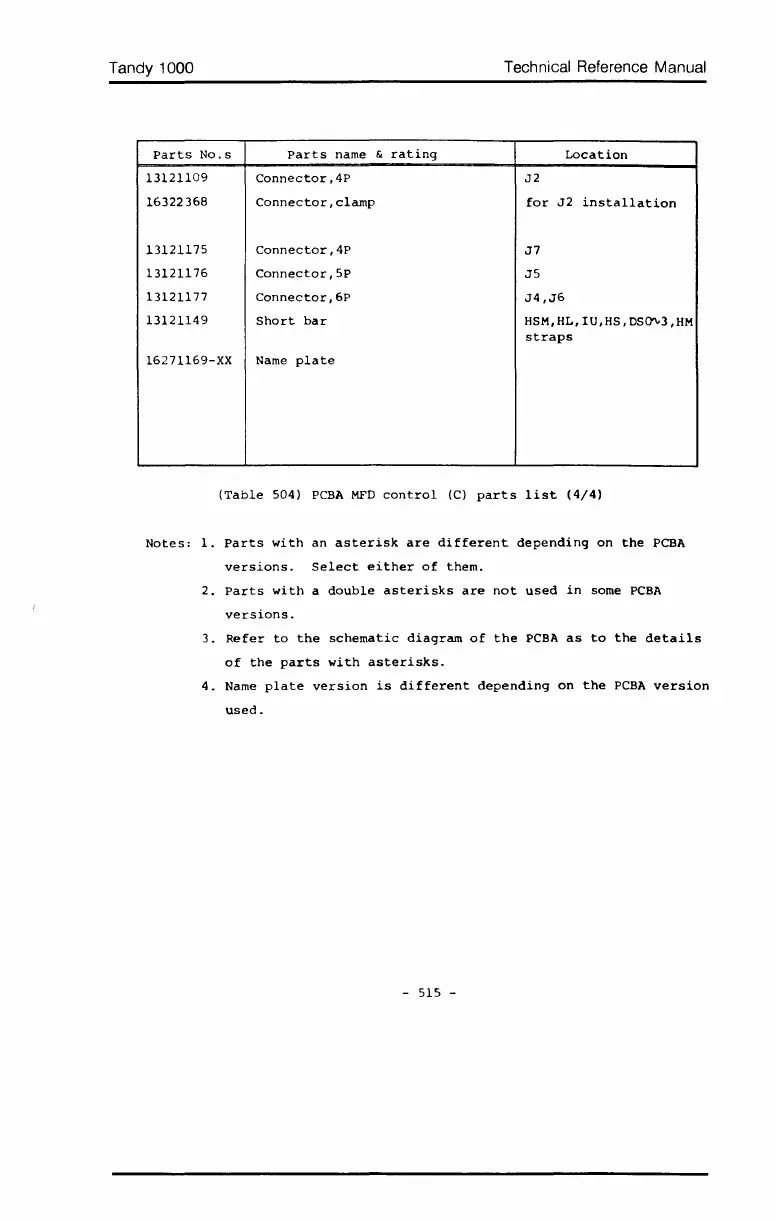

Tandy 1000
Technical Reference Manual
Parts
No.s
Parts
name
&
rating
Location
13121109
Connector.4P
J2
16322368
Connector,
clamp
for
J2
installation
13121175
Connector,4P
J7
13121176
Connector,5P
J5
13121177
Connector,6P
J4,J6
13121149
Short
bar
HSM,HL,IU,HS,DSOV3,HM
straps
16271169-XX
Name
plate
(Table
504)
PCBA
MFD
control
(C)
parts
list
(4/4)
Notes:
1.
Parts
with
an
asterisk
are
different
depending
on
the
PCBA
versions.
Select
either
of
them.
2.
Parts
with
a
double
asterisks
are
not
used
in
some
PCBA
versions.
3.
Refer
to
the
schematic
diagram
of
the
PCB
A
as
to
the
details
of
the
parts
with
asterisks.
4.
Name
plate
version
is
different
depending
on
the
PCBA
version
used.
-
515
-
