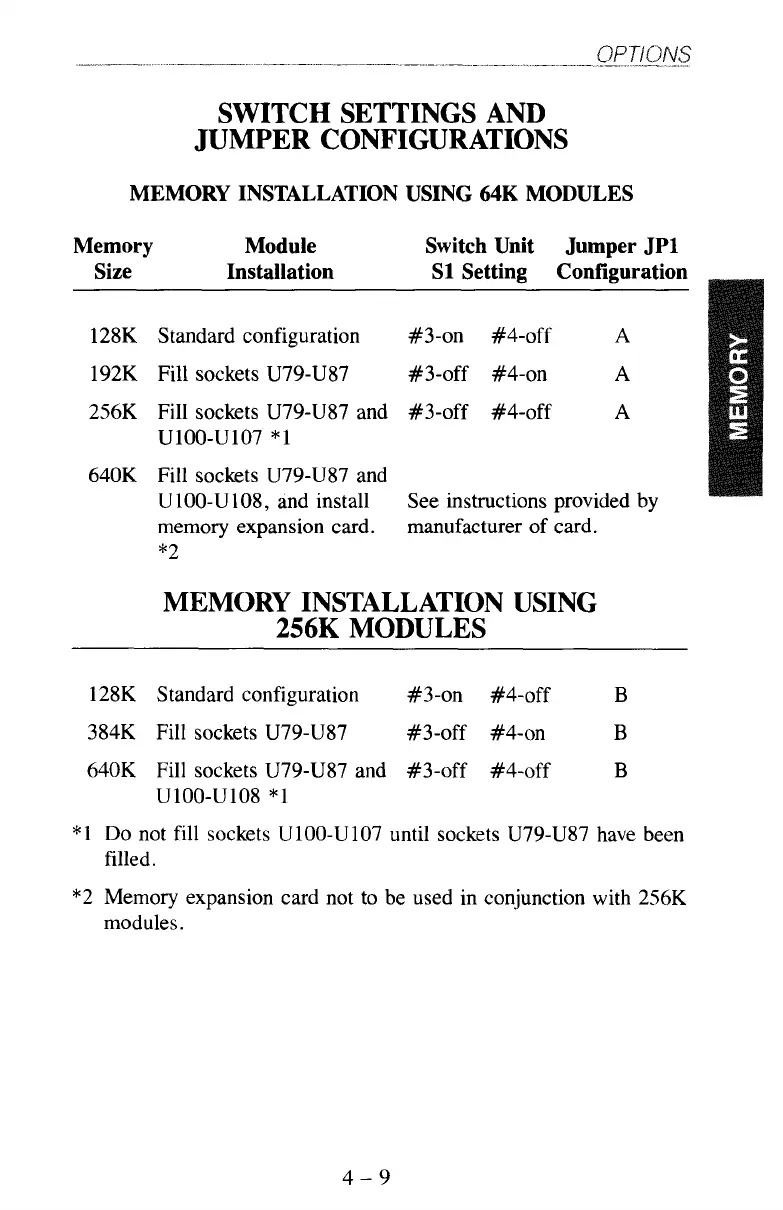

SWITCH SETTINGS AND
JUMPER CONFIGURATIONS
MEMORY INSTALLATION USING
64K
MODULES
Memory Module Switch Unit Jumper JP1
Size Installation
SI
Setting Configuration
128K
192K
256K
640K
Standard configuration
Fill sockets U79-U87
Fill sockets U79-U87 and
U100-U107 "1
Fill sockets U79-U87 and
U100-U108, and install
#3-on #4-0ff
A
#3-off #4-on
A
#3-Off #4-Off
A
See instructions provided by
memory expansion card.
"2
manufacturer of card.
MEMORY INSTALLATION USING
256K
MODULES
128K Standard configuration #3-on #4-off
B
384K Fill sockets U79-U87 #3-off #4-on
B
640K Fill sockets U79-U87 and #3-off #4-off
B
U100-U108 "1
"1
Do
not fill sockets U100-U107 until sockets U79-U87 have been
filled.
"2 Memory expansion card not to be used in conjunction with 256K
modules.
4-9
