Tandy 1200 HD - Page 18

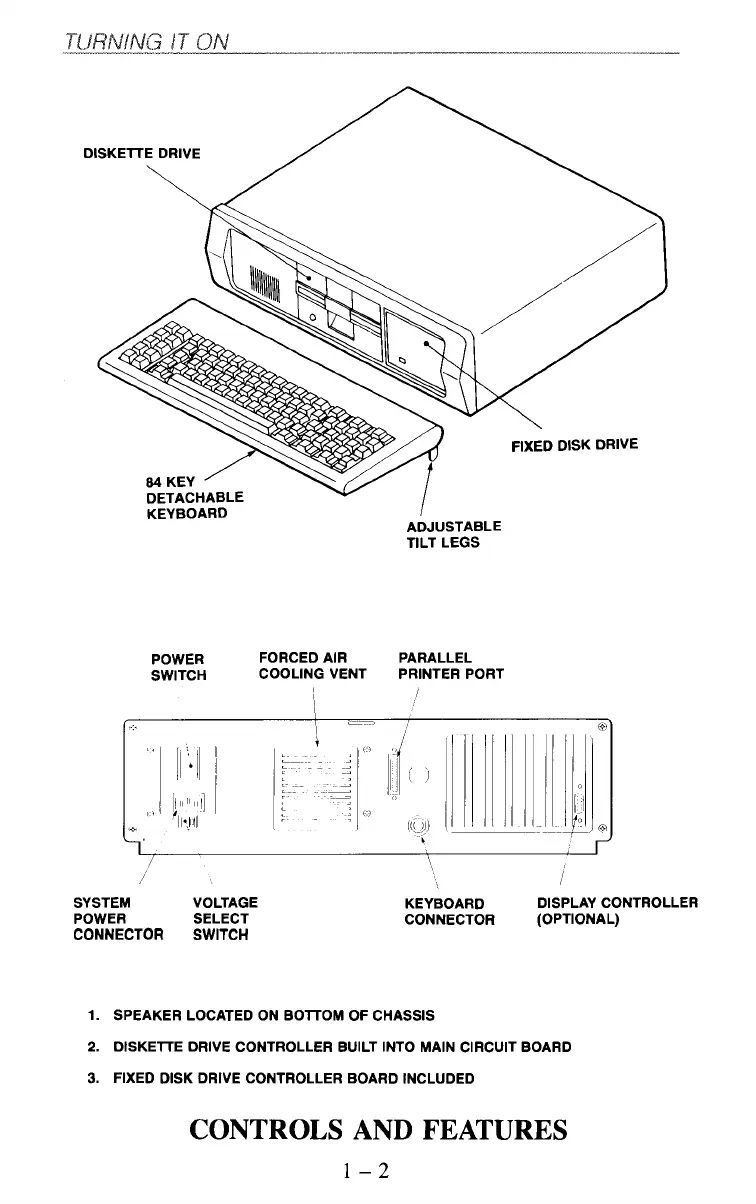

DISKETTE DRIVE / \
84 KEY /\
DETACHABLE
KEYBOARD
I
ADJUSTABLE
TILT LEGS
POWER
FORCED AIR PARALLEL
SWITCH COOLING VENT
PRINTER PORT
I I
~
/
/
SYSTEM VOLTAGE
POWER SELECT
CONNECTOR SWITCH
\
I
KEYBOARD DISPLAY CONTROLLER
CONNECTOR (OPTIONAL)
1.
2.
3.
SPEAKER LOCATED ON BOTTOM OF CHASSIS
DISKETTE DRIVE CONTROLLER BUILT INTO MAIN CIRCUIT BOARD
FIXED DISK DRIVE CONTROLLER BOARD INCLUDED
CONTROLS AND FEATURES
1-2
