Taylor McDonald's C602 User Manual

9

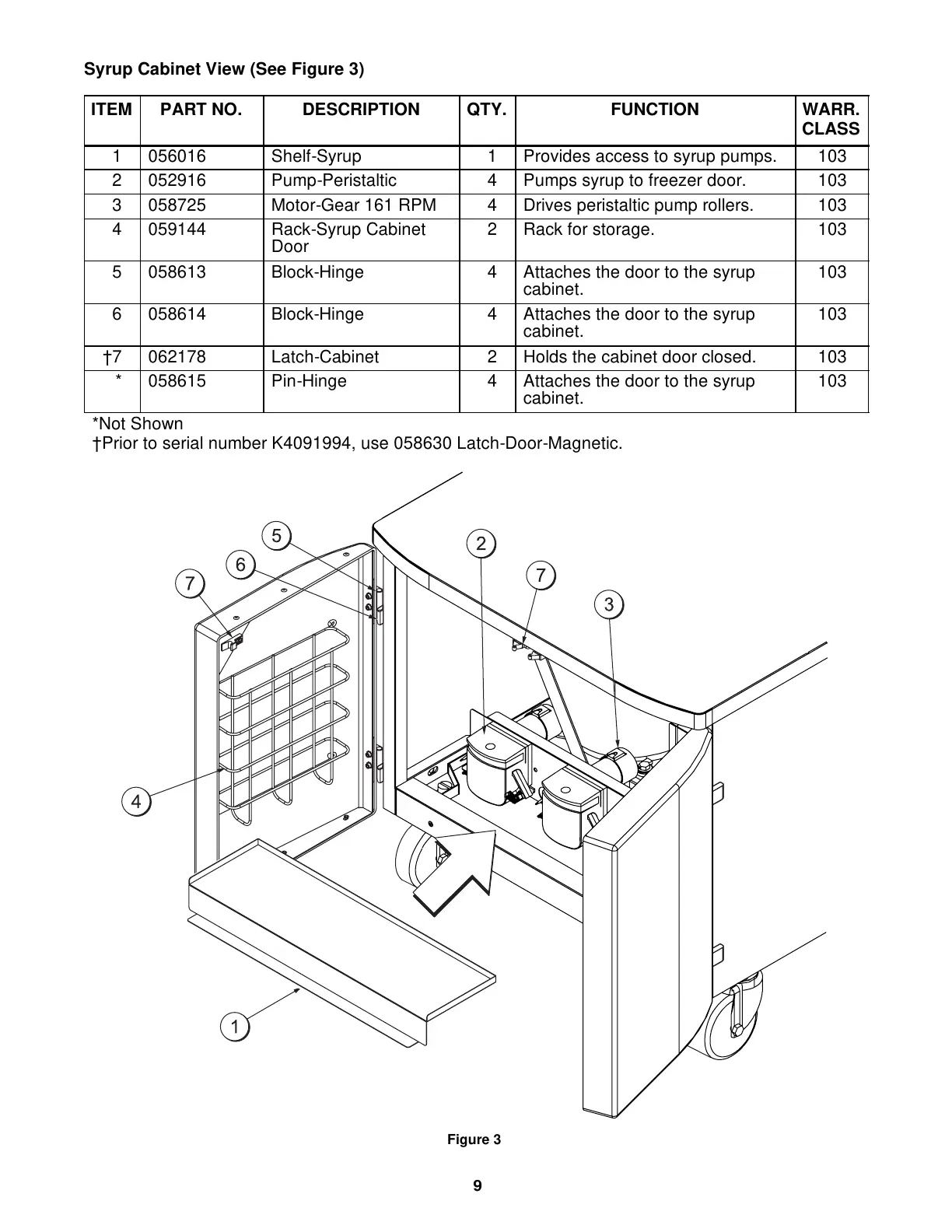

Syrup Cabinet View (See Figure 3)
ITEM
PART NO. DESCRIPTION QTY. FUNCTION WARR.
CLASS
1 056016 Shelf-Syrup 1 Provides access to syrup pumps. 103
2 052916 Pump-Peristaltic 4 Pumps syrup to freezer door. 103
3 058725 Motor-Gear 161 RPM 4 Drives peristaltic pump rollers. 103
4 059144 Rack-Syrup Cabinet
Door
2 Rack for storage. 103
5 058613 Block-Hinge 4 Attaches the door to the syrup
cabinet.
103
6 058614 Block-Hinge 4 Attaches the door to the syrup
cabinet.
103
†7 062178 Latch-Cabinet 2 Holds the cabinet door closed. 103
* 058615 Pin-Hinge 4 Attaches the door to the syrup
cabinet.
103
*Not Shown
†Prior to serial number K4091994, use 058630 Latch-Door -Magnetic.
Figure 3
