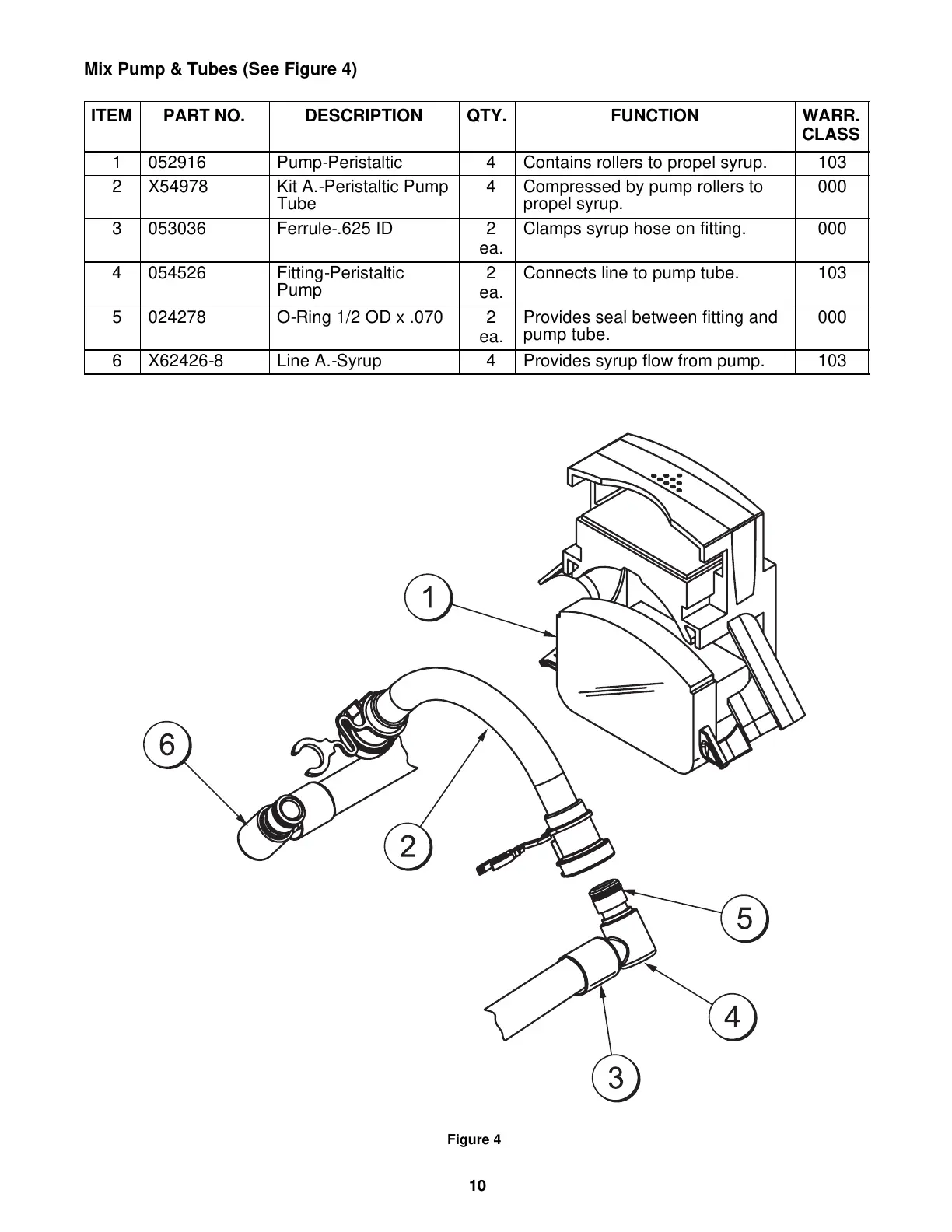

Mix Pump & Tubes (See Figure 4)
ITEM
PART NO. DESCRIPTION QTY. FUNCTION WARR.
CLASS
1 052916 Pump-Peristaltic 4 Contains rollers to propel syrup. 103
2 X54978 Kit A.-Peristaltic Pump
Tube
4 Compressed by pump rollers to
propel syrup.
000
3 053036 Ferrule-.625 ID 2
ea.
Clamps syrup hose on fitting. 000
4 054526 Fitting-Peristaltic
Pump
2
ea.
Connects line to pump tube. 103
5 024278 O-Ring 1/2 OD x .070 2
ea.
Provides seal between fitting and
pump tube.
000
6 X62426-8 Line A.-Syrup 4 Provides syrup flow from pump. 103
Figure 4
