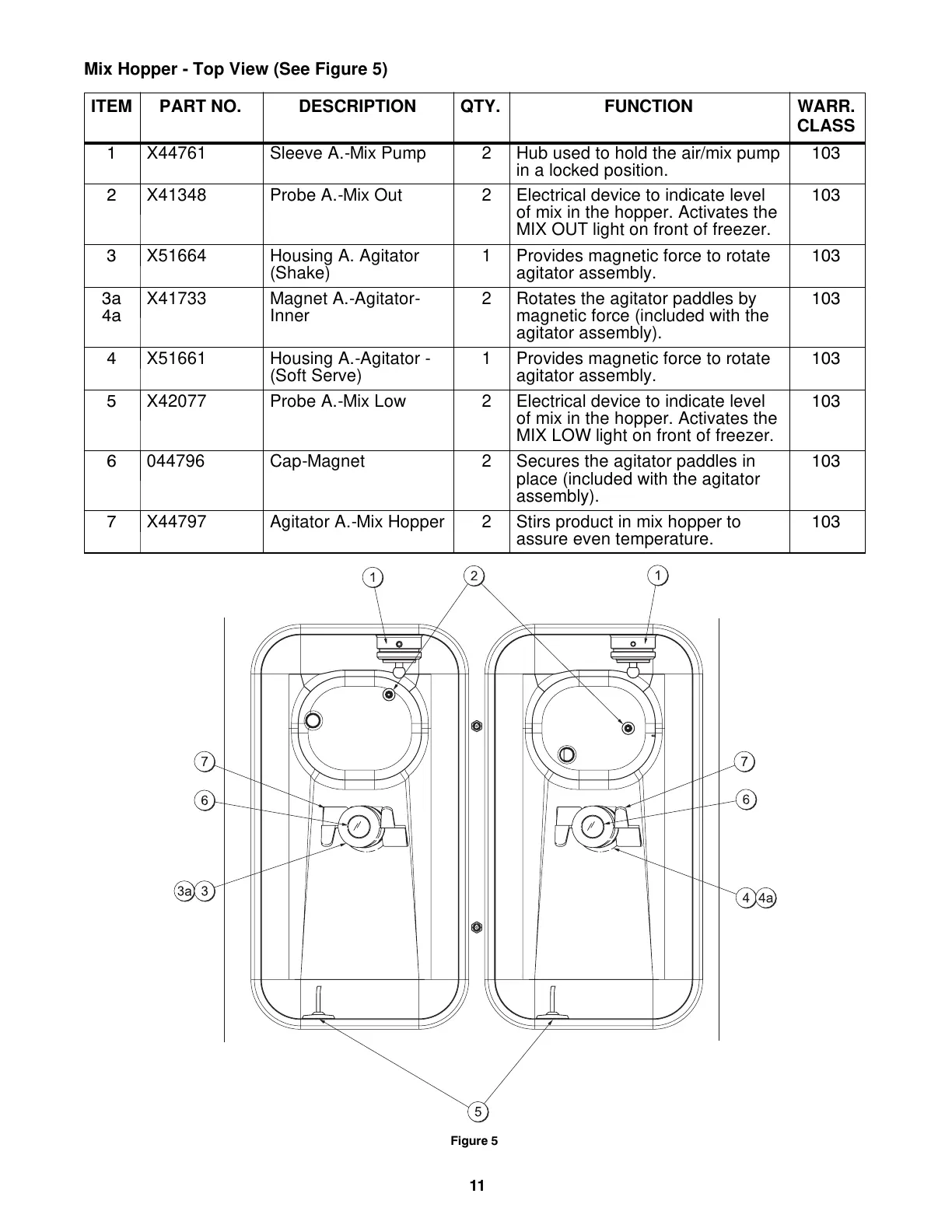

Mix Hopper - Top View (See Figure 5)
ITEM
PART NO. DESCRIPTION QTY. FUNCTION WARR.
CLASS
1 X44761 Sleeve A.-Mix Pump 2 Hub used to hold the air/mix pump
in a locked position.
103
2 X41348 Probe A.-Mix Out 2 Electrical device to indicate level
of mix in the hopper. Activates the
MIX OUT light on front of freezer.
103
3 X51664 Housing A. Agitator
(Shake)
1 Provides magnetic force to rotate
agitator assembly.
103
3a
4a
X41733 Magnet A.-Agitator-
Inner
2 Rotates the agitator paddles by
magnetic force (included with the
agitator assembly).
103
4 X51661 Housing A.-Agitator -
(Soft Serve)
1 Provides magnetic force to rotate
agitator assembly.
103
5 X42077 Probe A.-Mix Low 2 Electrical device to indicate level
of mix in the hopper. Activates the
MIX LOW light on front of freezer.
103
6 044796 Cap-Magnet 2 Secures the agitator paddles in
place (included with the agitator
assembly).
103
7 X44797 Agitator A.-Mix Hopper 2 Stirs product in mix hopper to
assure even temperature.
103
Figure 5
