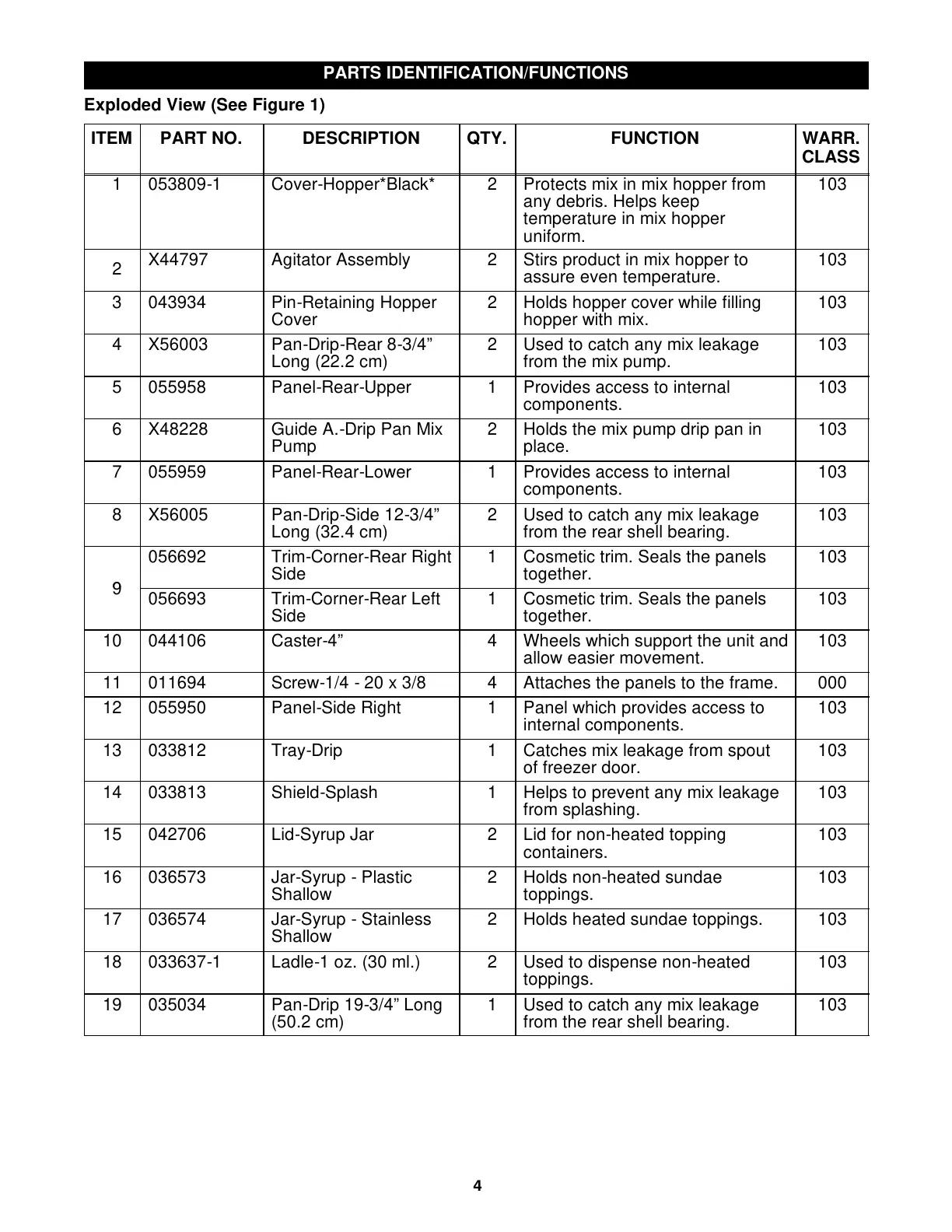

PARTS IDENTIFICATION/FUNCTIONS
Exploded View (See Figure 1)
ITEM
PART NO. DESCRIPTION QTY. FUNCTION WARR.
CLASS
1 053809-1 Cover-Hopper*Black* 2 Protects mix in mix hopper from
any debris. Helps keep
temperature in mix hopper
uniform.
103
2
X44797 Agitator Assembly 2 Stirs product in mix hopper to
assure even temperature.
103
3 043934 Pin-Retaining Hopper
Cover
2 Holds hopper cover while filling
hopper with mix.
103
4 X56003 Pan-Drip-Rear 8-3/4”
Long (22.2 cm)
2 Used to catch any mix leakage
from the mix pump.
103
5 055958 Panel-Rear-Upper 1 Provides access to internal
components.
103
6 X48228 Guide A.-Drip Pan Mix
Pump
2 Holds the mix pump drip pan in
place.
103
7 055959 Panel-Rear-Lower 1 Provides access to internal
components.
103
8 X56005 Pan-Drip- Side 12- 3/4”
Long (32.4 cm)
2 Used to catch any mix leakage
from the rear shell bearing.
103
9
056692 Trim-Corner -Rear Right
Side
1 Cosmetic trim. Seals the panels
together.
103
9
056693 Trim-Corner-Rear Left
Side
1 Cosmetic trim. Seals the panels
together.
103
10 044106 Caster-4” 4 Wheels which support the unit and
allo w easier movement.
103
11 011694 Screw-1/4 - 20 x 3/8 4 Attaches the panels to the frame. 000
12 055950 Panel-Side Right 1 Panel which provides access to
internal components.
103
13 033812 Tray-Drip 1 Catches mix leakage from spout
of freezer door.
103
14 033813 Shield-Splash 1 Helps to prevent any mix leakage
from splashing.
103
15 042706 Lid-Syrup Jar 2 Lid for non-heated topping
containers.
103
16 036573 Jar-Syrup - Plastic
Shallow
2 Hold s non-heated sundae
toppings.
103
17 036574 Jar-Syrup - Stainless
Shallow
2 Holds heated sundae toppings. 103
18 033637-1 Ladle -1 oz. (30 ml.) 2 Used to dispense non-heated
toppings.
103
19 035034 Pan-Drip 19-3/4” Long
(50.2 cm)
1 Used to catch any mix leakage
from the rear shell bearing.
103
