Taylor McDonald's C602 - FRONT VIEW OF MACHINE; Front View Component Identification

5

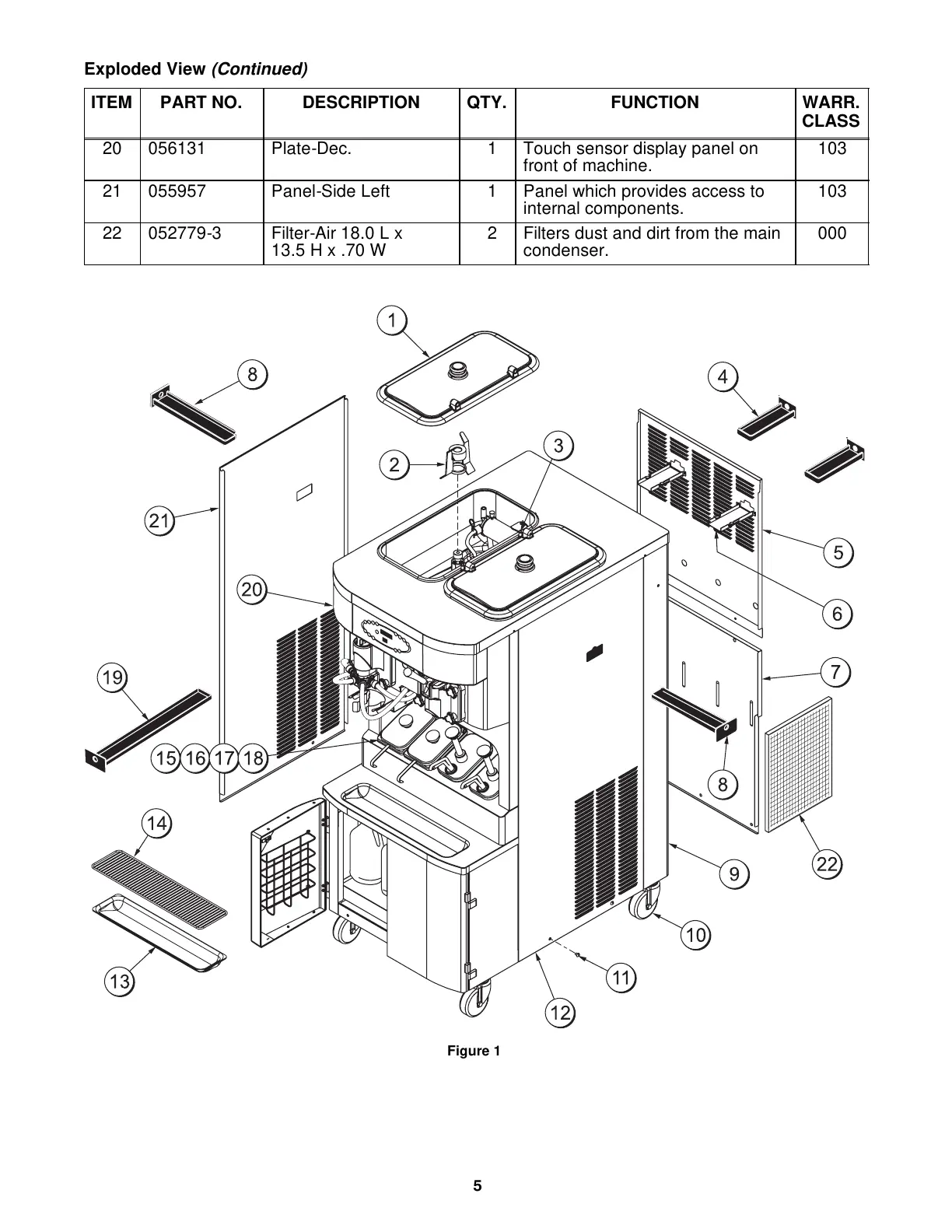

Exploded View (Continued)
ITEM
PART NO. DESCRIPTION QTY. FUNCTION WARR.
CLASS
20 056131 Plate-Dec. 1 Touch sensor display panel on
front of machine.
103
21 055957 Panel-Side Left 1 Panel which provides access to
internal components.
103
22 052779-3 Filter-Air 18.0 L x
13.5 H x .70 W
2 Filters dust and dirt from the main
condenser.
000
Figure 1
