6

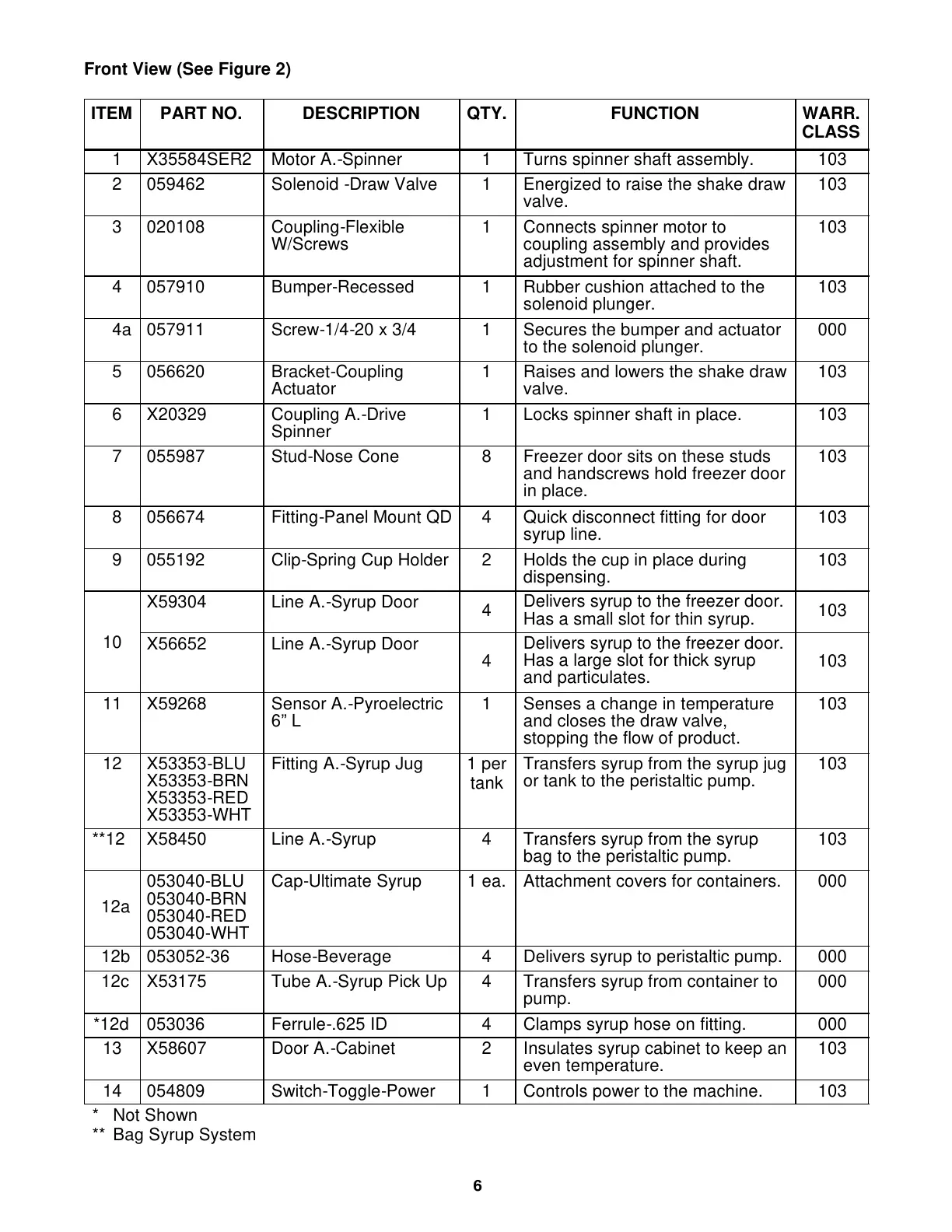

Front View (See Figure 2)
ITEM
PART NO. DESCRIPTION QTY. FUNCTION WARR.
CLASS
1 X35584SER2 Motor A.-Spinner 1 Turns spinner shaft assembly. 103
2 059462 Solenoid -Draw Valve 1 Energized to raise the shake draw
valve.
103
3 020108 Coupling-Flexible
W/Screws
1 Connects spinner motor to
coupling assembly and provides
adjustment for spinner shaft.
103
4 057910 Bumper -Recessed 1 Rubber cushion attached to the
solenoid plunger.
103
4a 057911 Screw -1/4-20 x 3/4 1 Secures the bumper and actuator
to the solenoid plunger.
000
5 056620 Bracket -Coupling
Actuator
1 Raises and lowers the shake draw
valve.
103
6 X20329 Coupling A.-Drive
Spinner
1 Locks spinner shaft in place. 103
7 055987 Stud-Nose Cone 8 Freezer door sits on these studs
and handscrews hold freezer door
in place.
103
8 056674 Fitting -Panel Mount QD 4 Quick disconnect fitting for door
syrup line.
103
9 055192 Clip- Spring Cup Holder 2 Holds the cup in place during
dispensing.
103
X59304 Line A.-Syrup Door
4
Delivers syrup to the freezer door.
Has a small slot for thin syrup.
103
10
X56652 Line A.-Syrup Door
4
Delivers syrup to the freezer door.
Has a large slot for thick syrup
and particulates.
103
11 X59268 Sensor A.-Pyroelectric
6” L
1 Senses a change in temperature
and closes the draw valve,
stopping the flow of product.
103
12 X53353-BLU
X53353-BRN
X53353-RED
X53353-WHT
Fitting A.-Syrup Jug 1 per
tank
Transfers syrup from the syrup jug
or tank to the peristaltic pump.
103
**12 X58450 Line A. -Syrup 4 Transfers syrup from the syrup
bag to the peristaltic pump.
103
12a
053040-BLU
053040-BRN
053040-RED
053040-WHT
Cap-Ultimate Syrup 1 ea. Attachment covers for containers. 000
12b 053052-36 Hose -Beverage 4 Delivers syrup to peristaltic pump. 000
12c X53175 Tube A.-Syrup Pick Up 4 Transfers syrup from container to
pump.
000
*12d 053036 Ferrule- .625 ID 4 Clamps syrup hose on fitting. 000
13 X58607 Door A.-Cabinet 2 Insulates syrup cabinet to keep an
even temperature.
103
14 054809 Switch-Toggle -Power 1 Controls power to the machine. 103
* Not Shown
** Bag Syrup System
