7

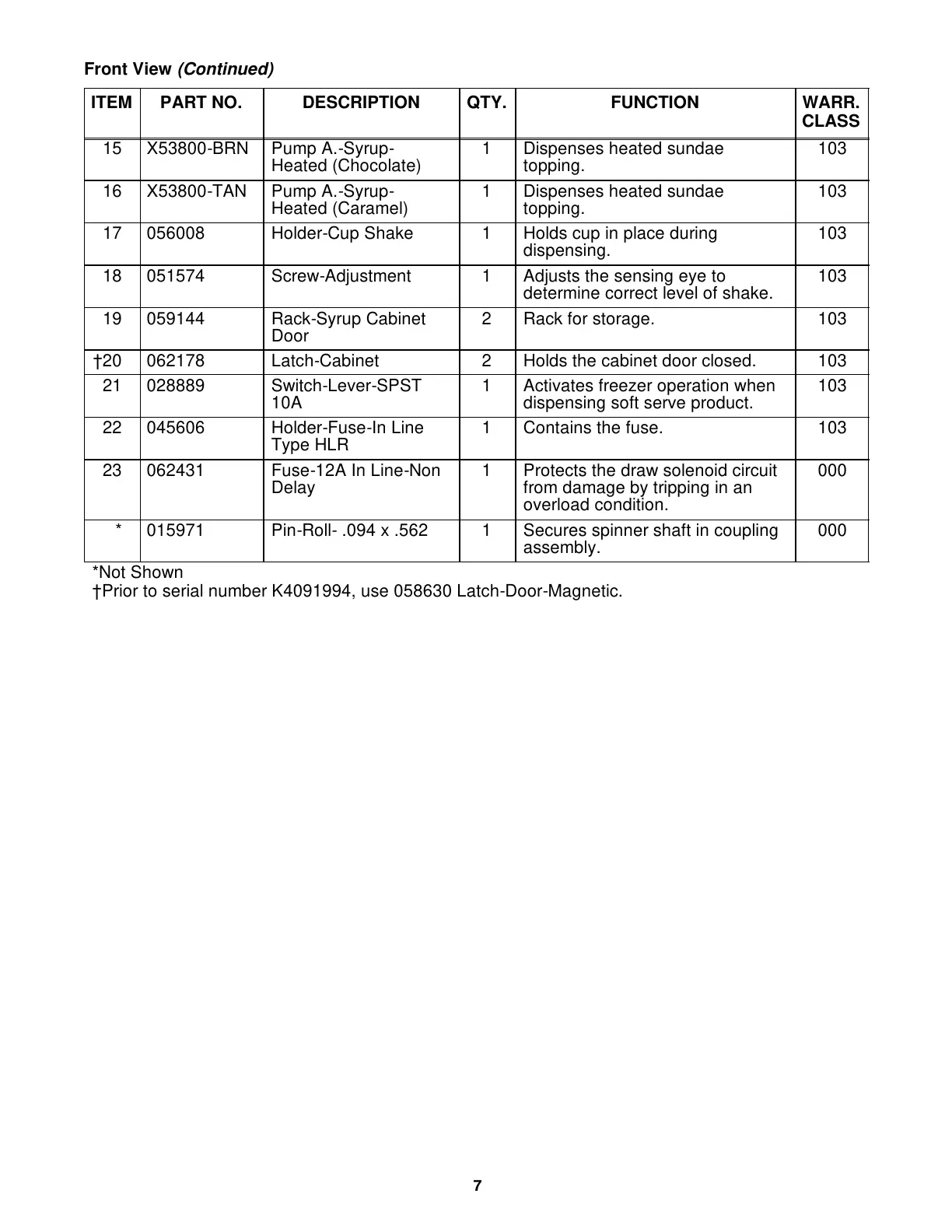

Front View (Continued)
ITEM
PART NO. DESCRIPTION QTY. FUNCTION WARR.
CLASS
15 X53800-BRN Pump A.-Syrup-
Heated (Chocolate)
1 Dispenses heated sundae
topping.
103
16 X53800-TAN Pump A.-Syrup-
Heated (Caramel)
1 Dispenses heated sundae
topping.
103
17 056008 Holder-Cup Shake 1 Holds cup in place during
dispensing.
103
18 051574 Screw-Adjustment 1 Adjusts the sensing eye to
determine correct level of shake.
103
19 059144 Rack-Syrup Cabinet
Door
2 Rack for storage. 103
†20 062178 Latch -Cabinet 2 Holds the cabinet door closed. 103
21 028889 Switch-Lever-SPST
10A
1 Activates freezer operation when
dispensing soft serve product.
103
22 045606 Holder-Fuse-In Line
Type HLR
1 Contains the fuse. 103
23 062431 Fuse-12A In Line-Non
Delay
1 Protects the draw solenoid circuit
from damage by tripping in an
overload condition.
000
* 015971 Pin-Roll- .094 x .562 1 Secures spinner shaft in coupling
assembly.
000
*Not Shown
†Prior to serial number K4091994, use 058630 Latch-Door -Magnetic.
