22
Models PH71/PH84Operating Procedures

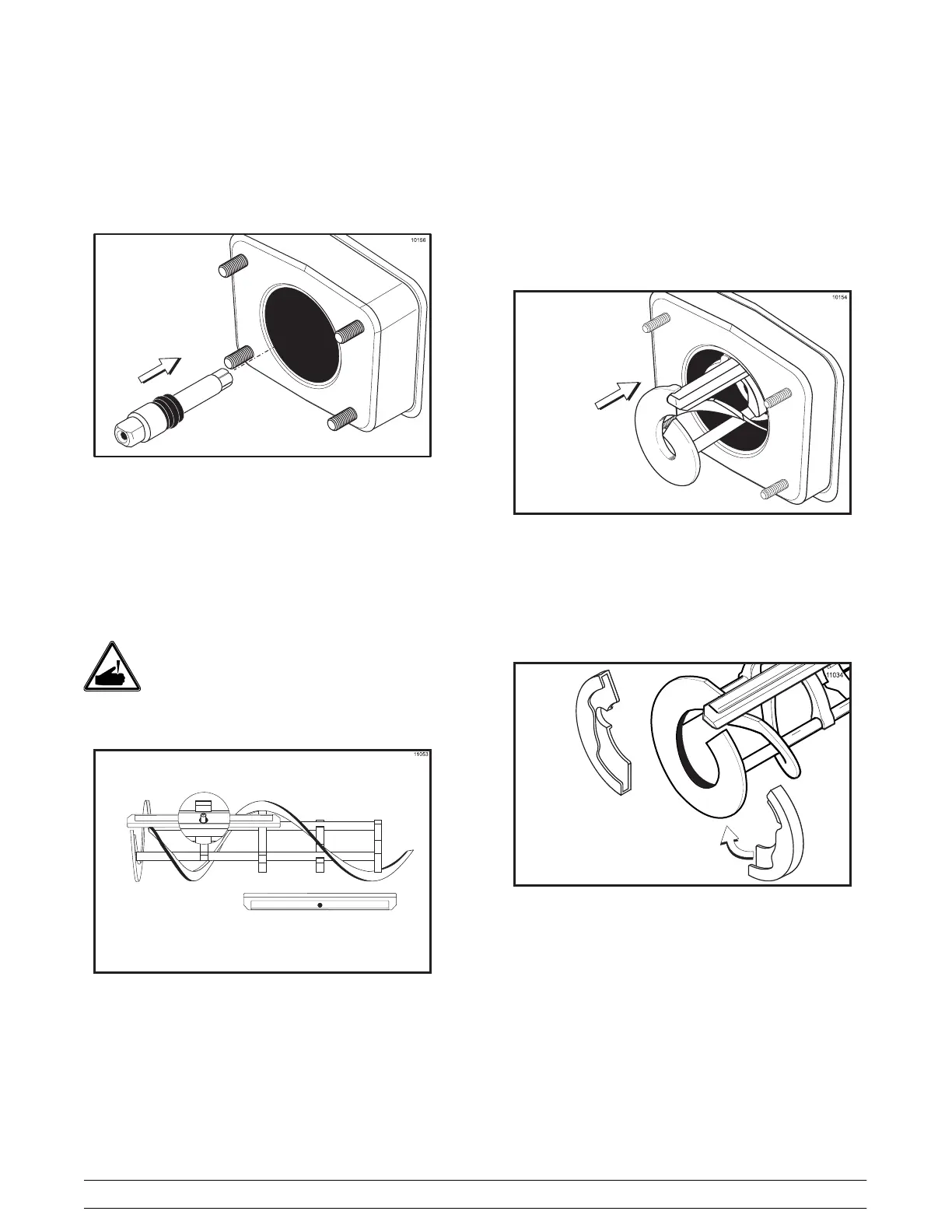

Install the drive shaft. Insert the drive shaft into the
freezing cylinder, hex end first, and into the rear shell
bearing until the seal fits securely over the rear shell
bearing. Be certain the drive shaft fits into the drive
coupling without binding.
Figure 3
Step 2
Install the beater assembly. First check the scraper
blades for any nicks or signs of wear. If any nicks are
present, or if the blades are worn, replace both blades.
If the blades are in good condition, install the scraper
blade clips over the scraper blades. Place the rear
scraper blade over the rear holding pin on the beater .
USE EXTREME CAUTION when handling
the beater assembly. The scraper blades are very
sharp and may cause injury.
Figure 4
Note: The hole on the scraper blade must fit securely
over the pin to prevent costly damage.
Holding the rear blade on the beater, slide it into the
freezing cylinder halfway. Install the front scraper
blade over the front holding pin.
Figure 5
Install the beater shoes.
Figure 6
Slide the beater assembly the rest of the way into the
freezing cylinder.
