24
Models PH71/PH84Operating Procedures

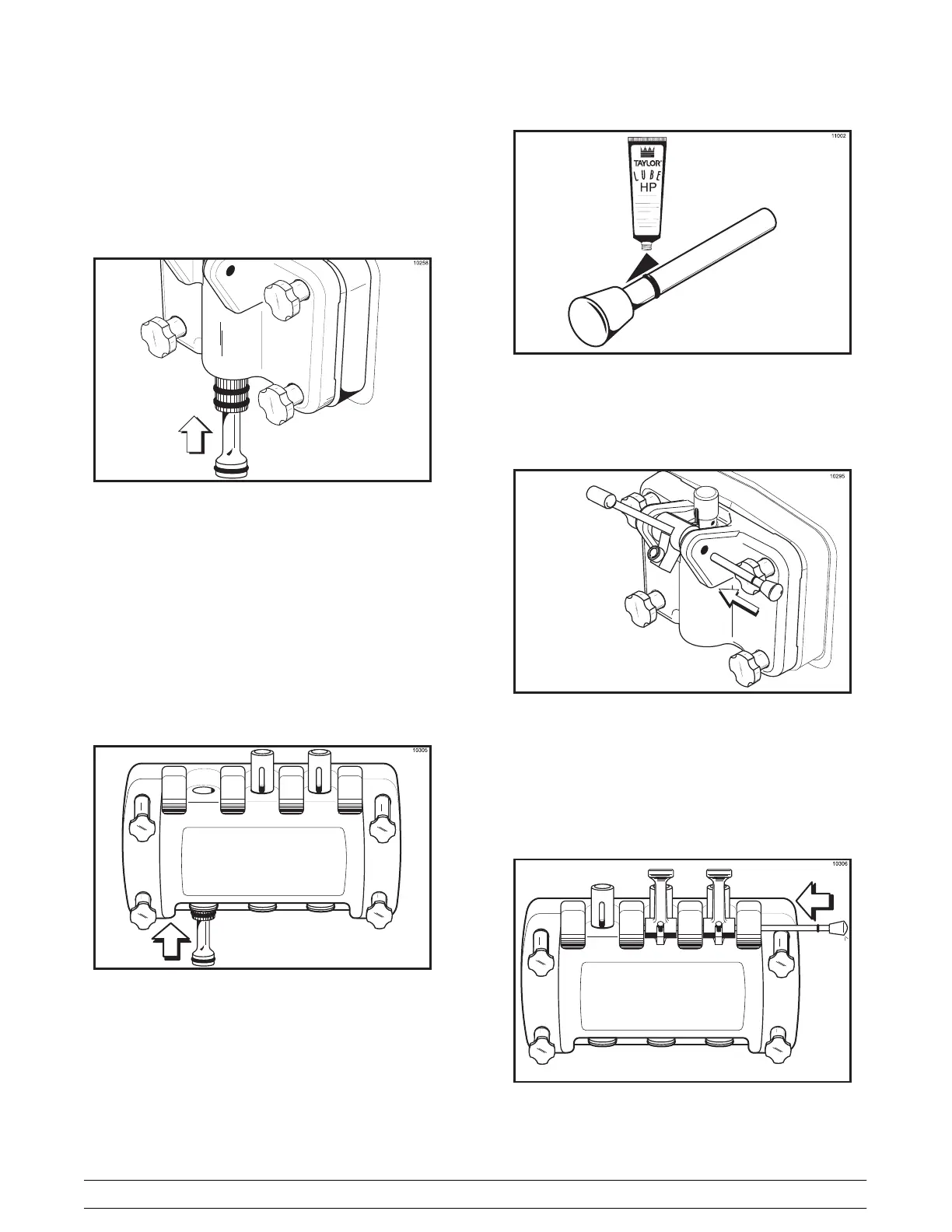

Lubricate the inside of the freezer door spout(s), top
and bottom, and insert the draw valve(s) from the
bottom until the slot in the draw valve(s) comes into
view.
Figure 11
Note: The Model PH84 has three draw valves. For
the left and right draw valves, follow the assembly and
lubrication procedures explained previously. The
center draw valve uses a seal and an o-ring. Slide the
seal and o-ring into the grooves on the draw valve, and
lubricate.
Figure 12
Step 6
Install the draw handle(s). Slide the o-ring into the
groove on the pivot pin, and lubricate.
Figure 13
Slide the fork of the draw handle over the bar in the slot
of the draw valve. Secure with pivot pin.
Figure 14
Note: The Model PH84 has three draw handles. Slide
the fork of the draw handle in the slot of the draw valve,
starting from right to left. Slide the pivot pin through
each draw handle as you insert them into the draw
valves.
Figure 15
