Model PH90 Operator Parts Identification
120724

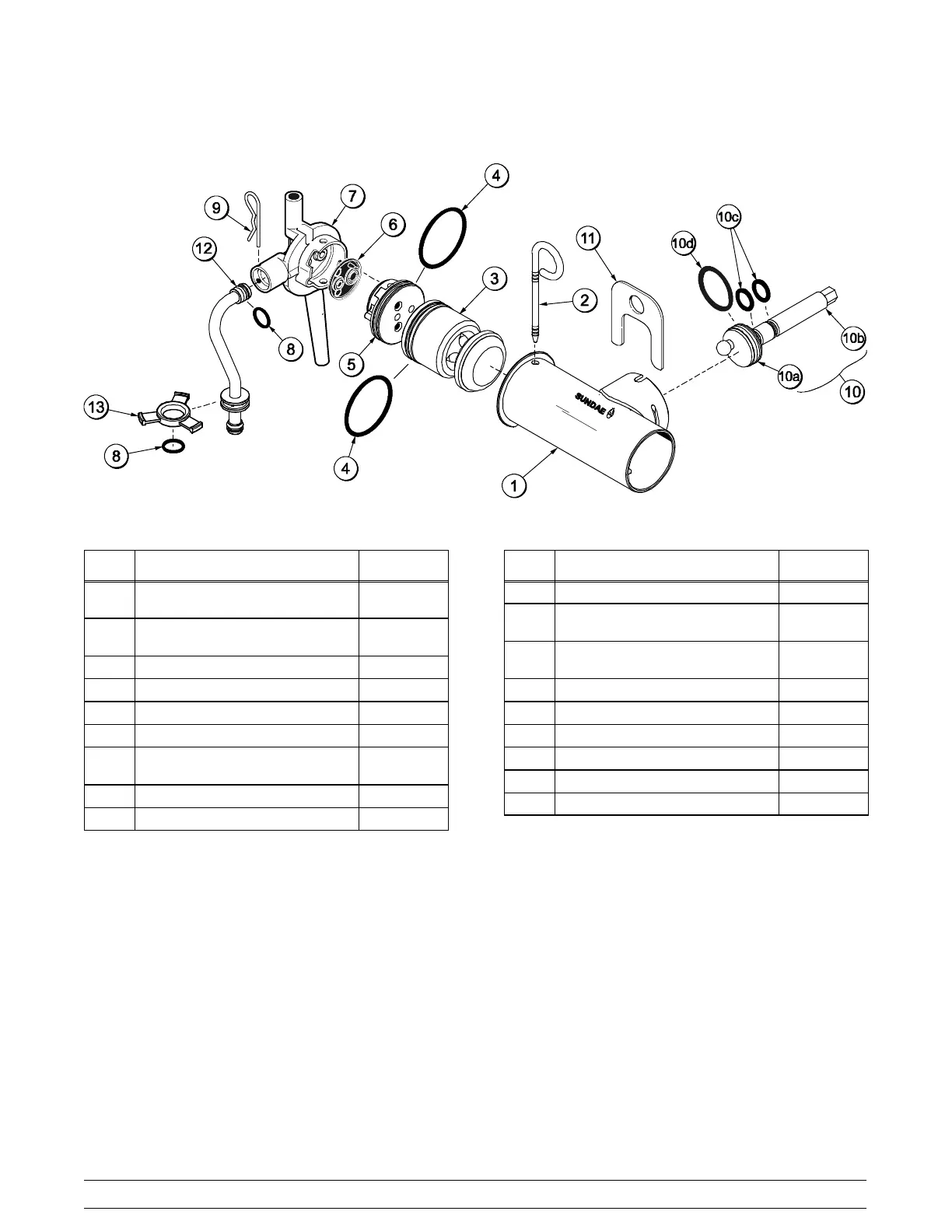

X57029- XX Pump A. - Mix Simplified - Soft Serve
Figure 5
ITEM DESCRIPTION PART NO.
1- 7 PUMP A. - MIX SIMPLIFIED S.S.-
COMPLETE
X57029- 14
1 CYLINDER- PUMP HOPPER
SOFT SERVE
057943
2 PIN A.- RETAINING X55450
3 PISTON- PUMP- SIMPLIFIED 053526
4 O - RING - 2- 1/8 OD X .139W 020051
5 CAP-VALVEBODYSS 056874- 14
6 GASKET- SIMPLIFIED PUMP
VALVE
053527
7 ADAPTOR- MIX INLET- SS- RED 054825
8 O - RING - 11/16ODX.103W- RED 016132
ITEM DESCRIPTION PART NO.
9 PIN- COTTER- HAIRPIN- 1/8 DIA 044731
10 SHAFT A. - DRIVE - MIX
PUMP- HOPPER
X41947
10a CRANK- DRIVE - HOPPER MIX
PUMP
039235
10b SHAFT- DRIVE - MIX PUMP 041948
10c O- RING 1/2 ID X .139W 048632
10d O- RING- 1- 3/4 OD X .139W 008904
11 CLIP- RETAINER - MIX P UMP 044641
12 TUBE A. - FEED- HOPPER S.S. X56521
13 RING- CHECK- FEED - T UBE 056524
