Model PH90Operating Procedures
140815
Note: Be sure your hands are clean and sanitized
before going on in these instructions.
Step 13

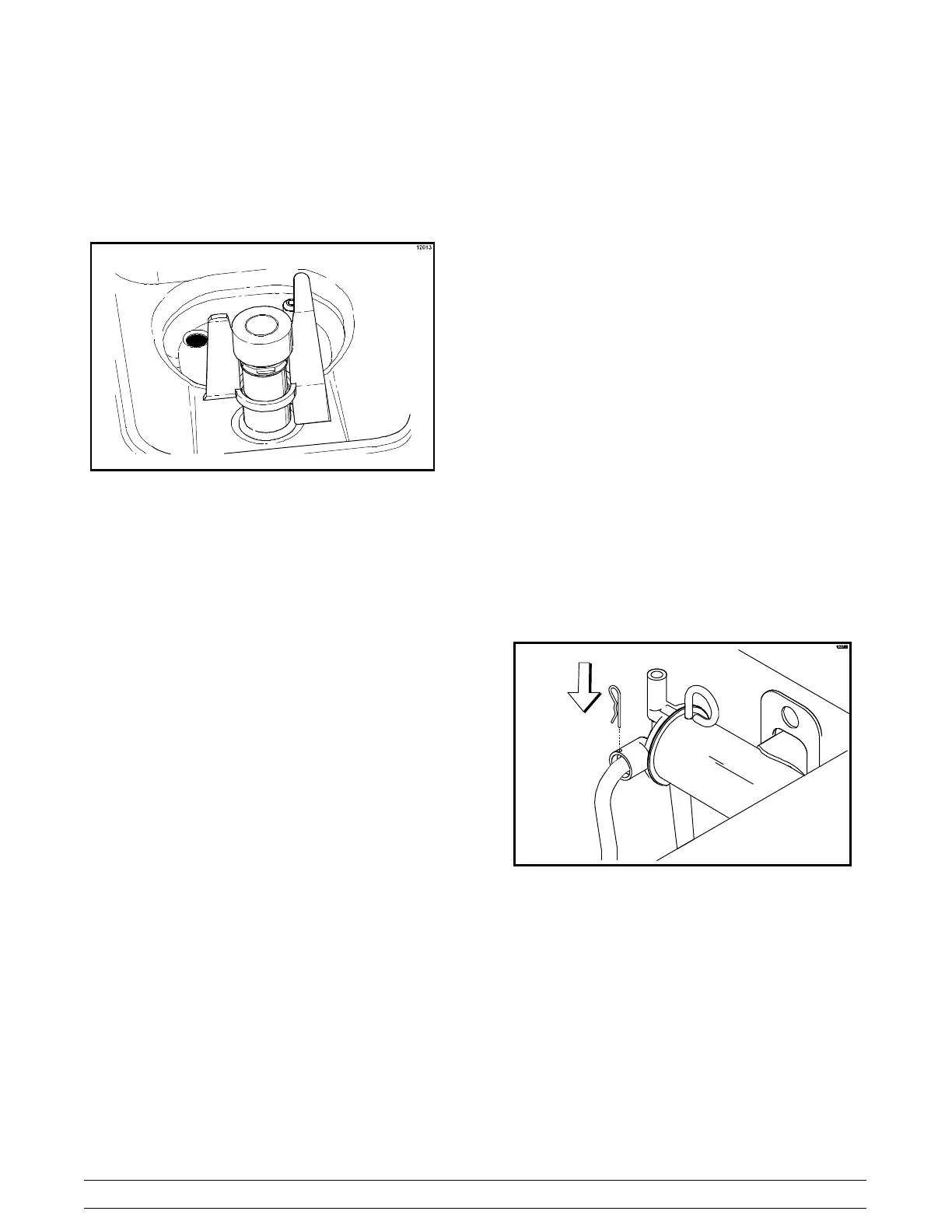

Press the CAL keypad and place the agitator on the
agitator drive shaft housing.
Figure 65
Note: If agitator should stop turning during normal
operation, with sanitized hands, remove agitator
from agitator drive shaft housing and brush clean with
sanitizing solution. Install the agitator back onto the
agitator drive shaft housing.
Step 14
Remove the design cap.
Step 15
Return to the freezer with a small amount of sanitizing
solution. Dip the door spout brush into the sanitizing
solution and brush clean the door spout and bottom of
the draw valve.
Note: To assure sanitary conditions are maintained,
brush clean each item for a total of 60 seconds,
repeatedly dipping the brush in sanitizing solution.
Step 16
Install the design cap.
Note: You have just sanitized all food contact
surfaces of the freezer.
Priming - Shake Side
Note: Evaluate the condition of LED’s (lights) and
screen messages before performing priming
procedures. If all 4 LED’s are flashing, the unit is
locked.
Step 1
With a pail beneath the door spout, open the draw
valve. Pour 2- 1/2 gallons (9.5 liters) of FRESH mix
into the mix hopper and allow it to flow into the freezing
cylinder. This will force out any remaining sanitizing
solution. When full strength mix is flowing from the
door spout, close the draw valve.
Step 2
When mix stops bubbling down into the freezing
cylinder, remove the cotter pin from the outlet fitting of
the mix pump. Remove the mix feed tube. Insert the
outlet end of the mix feed tube into the mix inlet hole
in the mix hopper. Place the inlet end of the mix feed
tube into the outlet fitting of the mix pump. Secure with
cotter pin.
Figure 66
