Model PH90 Operating Procedures
Disassembly - Soft Serve Side
Note: Failure to remove parts, brush clean and
re- lubricate these parts, will result in damage to the
related parts. These parts must be removed every 14
days or the machine will lockout and not operate in the
AUTO mode.
MAKE SURE POWER SWITCH IS IN THE
“OFF ” POSITION. Failure to do so may cause injury
from hazardous moving parts, or electrocution.
With the parts tray available for the soft serve side,
remove the following parts and place them in the parts
tray.
Step 1
Remove the design cap from the bottom of the door
spout.
Step 2
Remove the handscrews, freezer door, beater, shoes,
scraper blades, and drive shaft from the freezing
cylinder.
Step 3
Remove the scraper blade clips from the scraper
blades.
Step 4
Remove the pivot pin and draw handle.
Step 5
From the soft serve pump cylinder, remove the
retaining pin, valve body, piston, spring and poppet,
and the mix inlet tube. Remove all o- rings and check
rings.

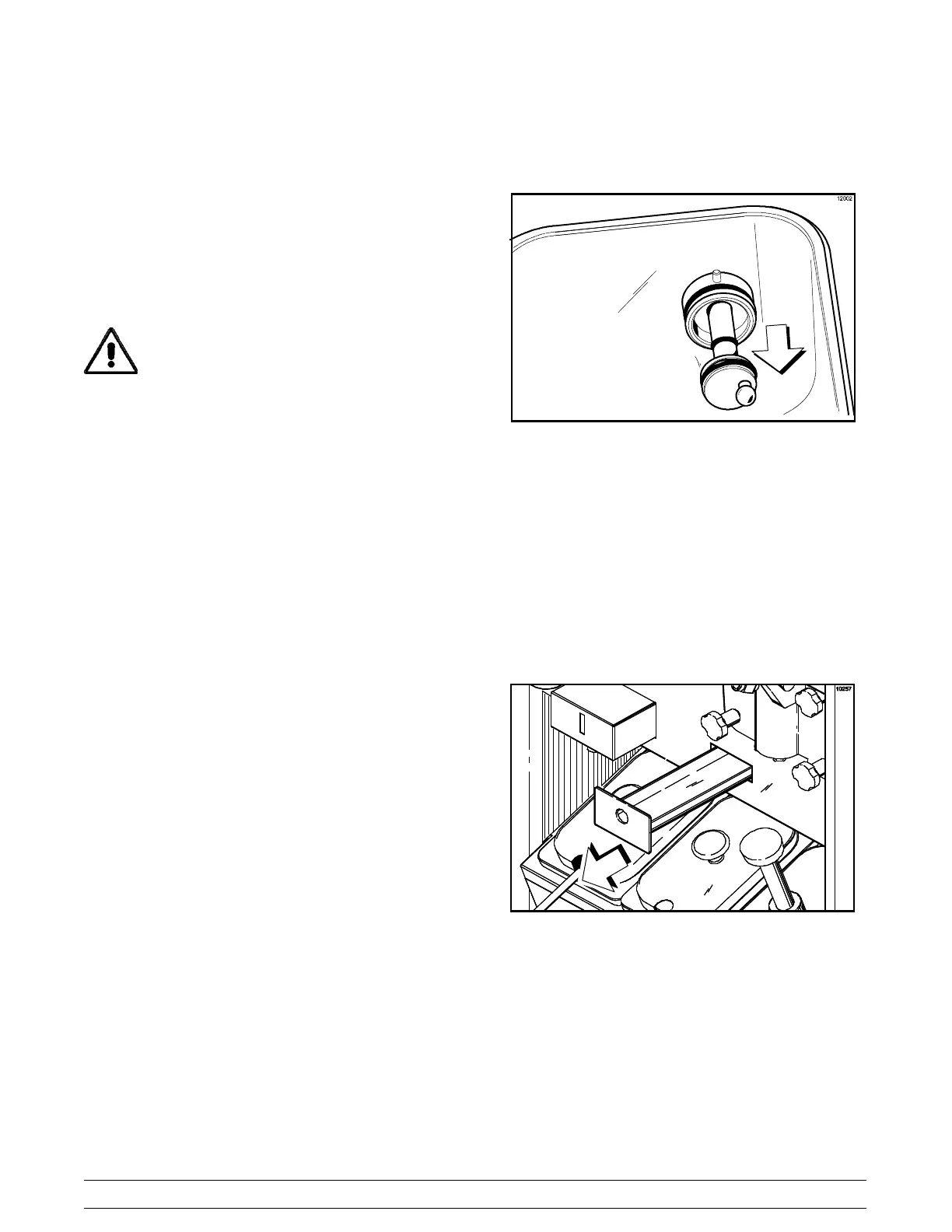

Step 6
Remove the drive shaft from the drive hub in the rear
wall of the mix hopper.
Figure 130
Step 7
Remove the two small o- rings and one large o- ring
from the drive shaft.
Step 8
Remove the front drip tray and splash shield. Remove
the ladles from the two cold topping containers.
Step 9
Remove the long drip pan from the front panel and the
two short drip pans from the rear panel. Take these
items to the sink for cleaning.
Figure 131
