Model PH90 Operating Procedures

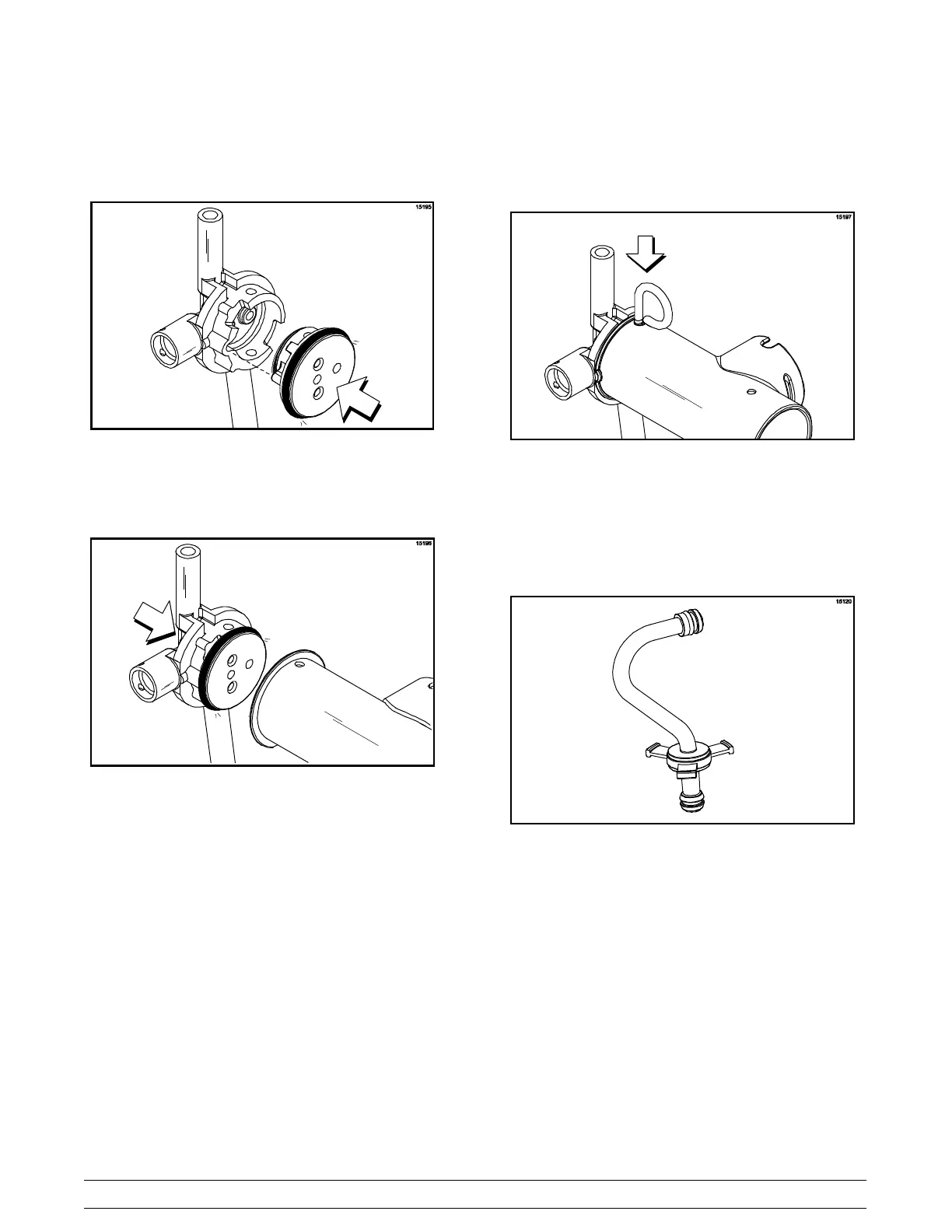

Step 7
Insert the valve cap into the hole in the mix inlet
adapter.
Figure 51
Step 8
Insert the mix inlet assembly into the pump cylinder.
Figure 52
The adapter must be positioned into the notch located
at the end of the pump cylinder.
Step 9
Secure the pump parts in position by sliding the
retaining pin through the cross holes located at one
end of the pump cylinder.
Figure 53
Note: The head of the retaining pin should be located
at the top of the pump when installed.
Step 10
Assemble the feed tube assembly. Slide the check ring
into the groove of the feed tube.
Figure 54
