Model PH90Operating Procedures
Step 10

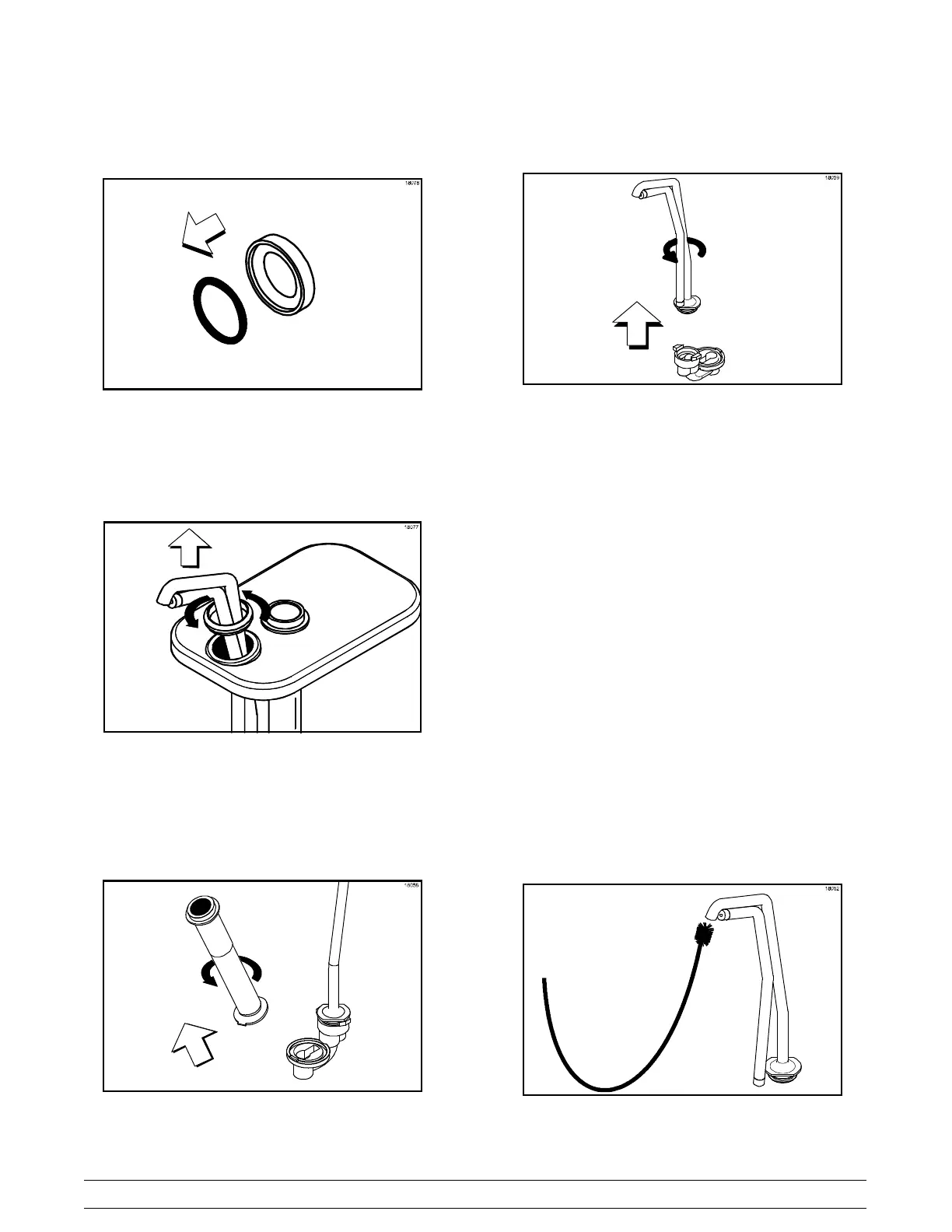

Remove the seal o- ring from the seal.
Figure 107
Step 11
Remove the discharge tube lock nut by turning it
counterclockwise. Remove the discharge lock nut
from the discharge tube.
Figure 108
Step 12
Remove the lid by sliding it off the discharge tube.
Step 13
Remove the cylinder from the valve body.
Figure 109
Step 14
Remove the discharge tube from the valve body.
Figure 110
Step 15
Remove the 1- 5/16” o- ring from the valve body, and
remove the 1” o- ring from the discharge tube.
CleaningtheSyrupPump
Step 1
Flush and rinse the pump in a container of warm water.
Place the lower end of the pump into the water
container and operate the pump until only warm water
flows from the discharge tube.
Step 2
Remove the pump from the container of water for
disassembly.
Step 3
W ash and scrub all parts in clean, warm soapy water .
Use the supplied brushes to clean all confined areas.
Step 4
Insert the brush through the tip of the discharge tube.
Move the brush back and forth to scrub the tip of the
discharge tube.
Figure 111
