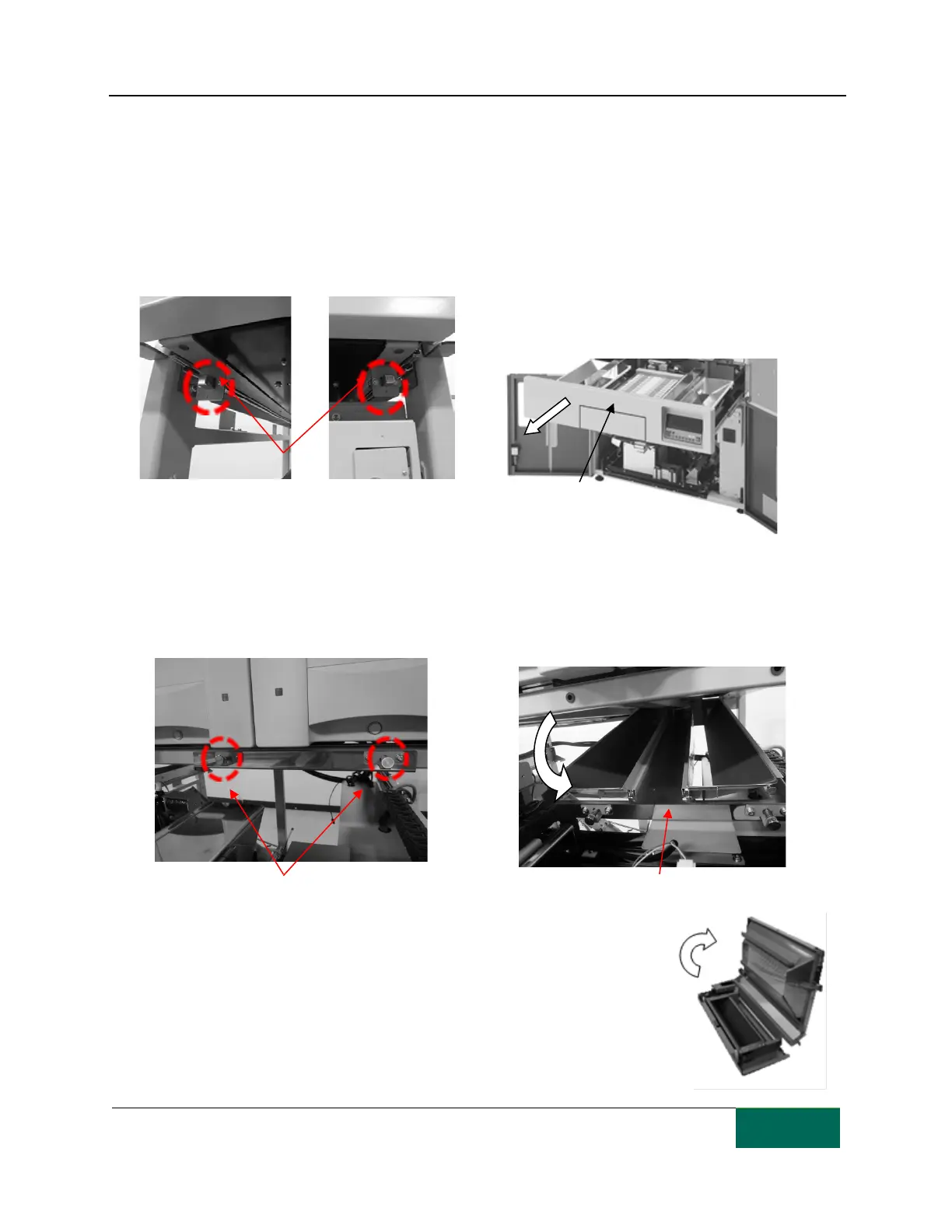

How to Clean the Sub Hopper
[Step 1]
Press the two push latches at the bottom of the primary shutter base and pull out the primary shutter
base.
*Push the right push latch while pressing the right latch to pull it out.
[Step 2]
Pull the knobs (one each on the right and left sides) that hold the sub hopper in place towards you and
gently lower the sub hopper base.
[Step 3]
Open the primary shutter chute as shown.
When opening the primary shutter chute, gently lower it to rest it against the
base.
Opening or closing the chute abruptly or exposing it to strong impacts when
contacting the base may damage the primary shutter.
Push latch
Primary Shutter Base
Knobs
Sub hopper base
