ATP Operator Instructions
Chapter 4 | INSTALLATION
Securing the Unit to the Floor
This unit is supplied with four anchor bolts and four fixtures. Use these fixtures to secure the unit to the
floor.
1.
Use anchor bolts and secure the unit to the floor (Figure 3-1)
a.
Use a drill to open holes in the floor that are 50 mm deep and 10 mm in diameter.
b.
Embed the anchor bolt so that the rod is 2 or 3 threads above the nut.
c.
Use a hammer to insert the rod.
d.
When the rod reaches the head of the bolt, the anchor expands to secure the bolt.

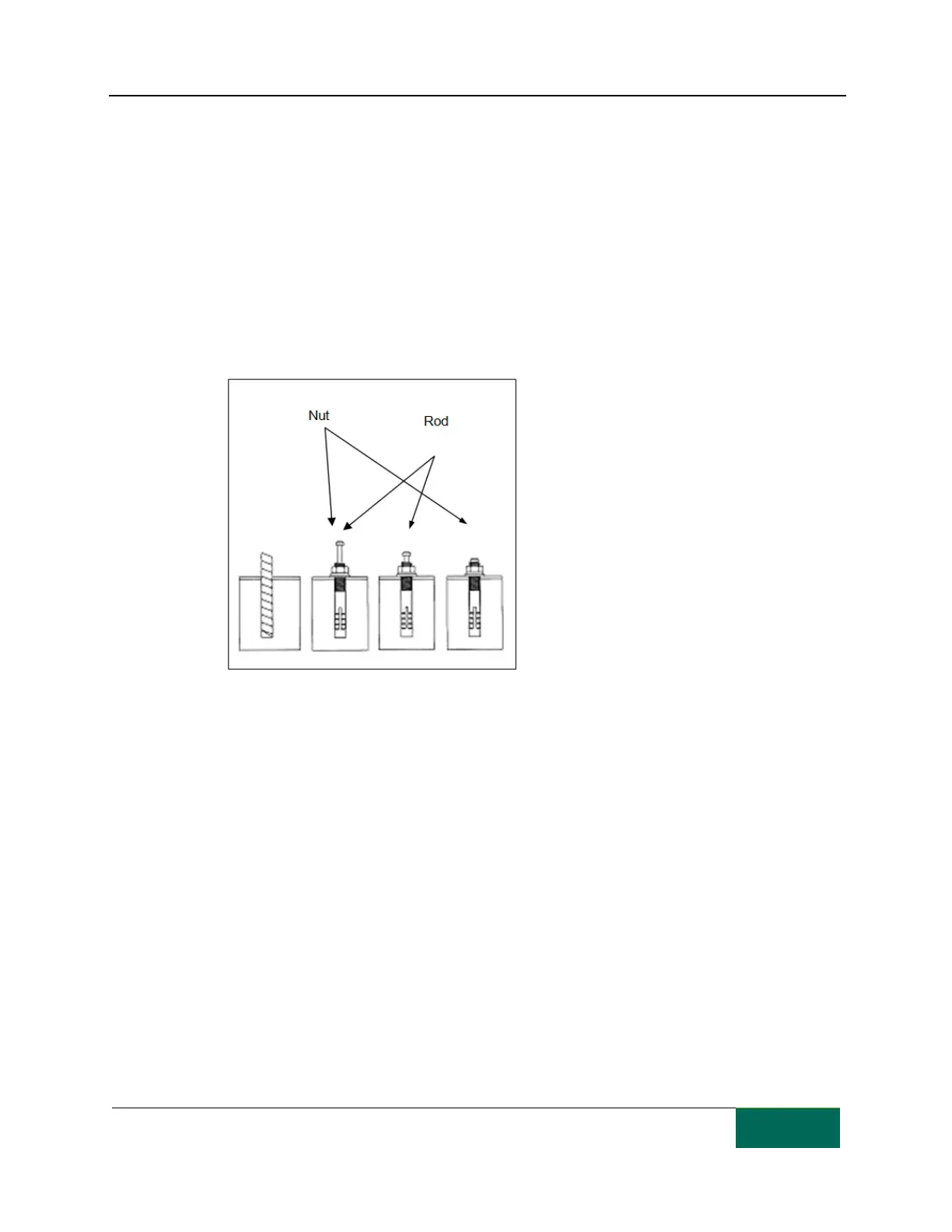

Figure 3-1
