TDE MACNO DVS200 - Page 113

User Manual Chapter 7 - Parameters Description  113
P.561 Deadtime cmp slp (Dead time compensation slope)
Compensation gradient value.
Dead time slope
i
v
Dead time level
Voltage cmd to pwrOutput voltage
+
+

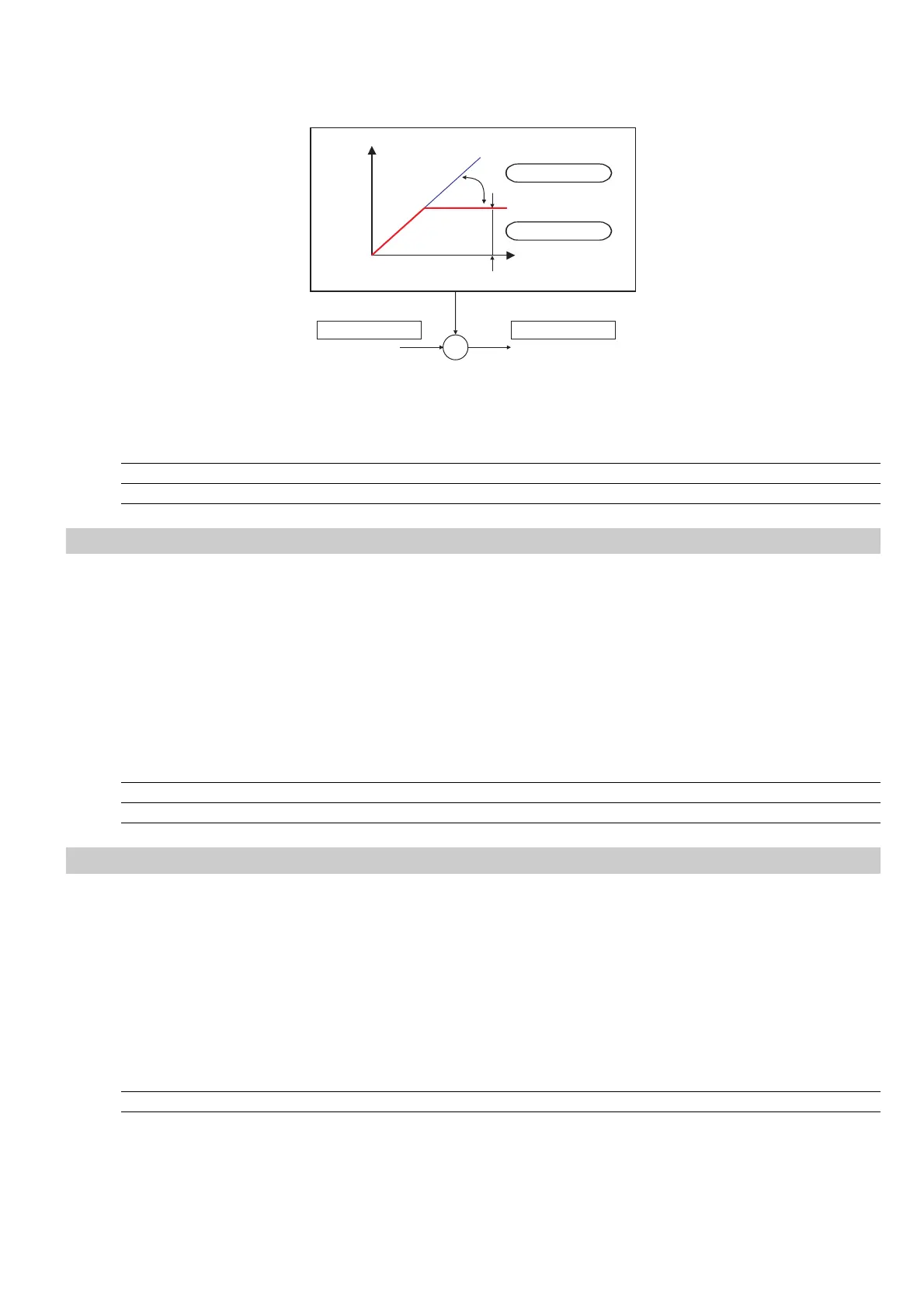

Figure 7.6.18: Dead Time Compesation
Code Name [Code] & Function. Default MIN MAX Unit Variation IPA
P.560 Deadtime cmp lev (*) 0 255 486
P.561 Deadtime cmp slp (*) 0 255 487
Display Setting
P.580 Startup display
It is possible to define the first parameter that will be displayed at every power-on of the drive.
The choice can be carried out by the setting of the corresponding "IPA", reported in the parameters list table.
P.600 Speed dsply fact (Startup display factor)
Costant conversion for variables displaying, as speed and speed reference .
The parameters can be applied at the variable reported at the chapter DISPLAY, section Basic and Encoder.
Code Name [Code] & Function. Default MIN MAX Unit Variation IPA
P.580 Startup display 1 1 1999 488
P.600 Speed dsply fact 1 0.01 99.99 0.01 489
Protection
P.999 Param prot code (Parameters protection code)
Protection against undesired modification of the parameters.
P.999 = 0 No protection and storage of the parameters with motor stopped
P.999 = 1 All the parameters are protected a part the digital frequencies F.100F.116
P.999 = 2 All the parameters are protected
P.999 = 3 No protection and storage of the parameters with the motor running (NOT RECCOMENDED).
Code Name [Code] & Function. Default MIN MAX Unit Variation IPA
P.999 Param prot code 0 0 3 490
