requirements of the network server. These settings do not change as the power supply is moved to different
LAN connections.
In this mode, there is no hostname connectivity so the hostname and DNS server fields are disabled (gray)
Controller Access: Select the security feature for One Controller Only or Multiple Clients. The multiple
client setting is needed to allow more than one controller connection at a time and to enable UDP socket
connections. See section 9.4 for details.
Apply: Click this button to save the new settings
Close: Click this button to close the window

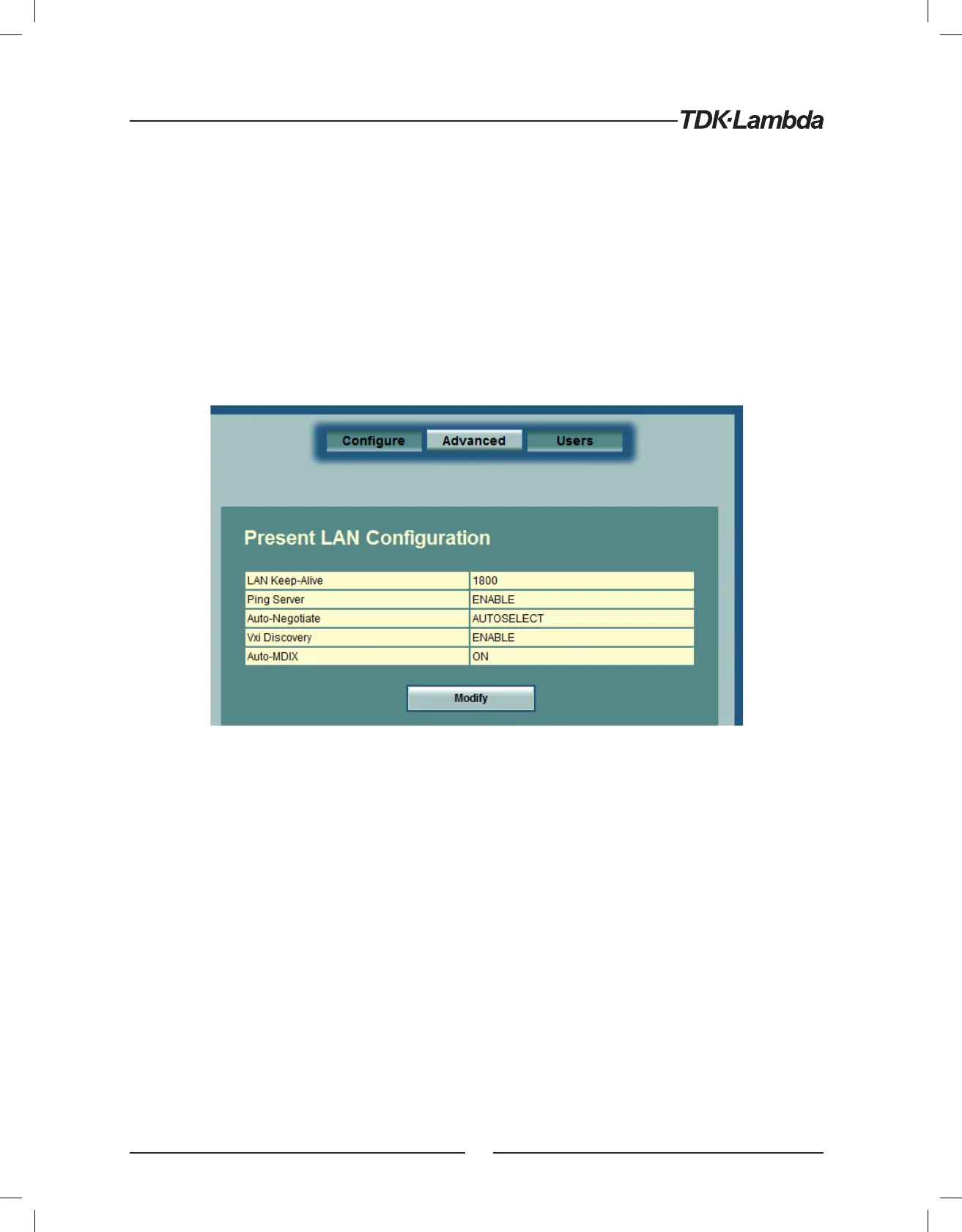

6.6.3. LAN ➞ Advanced Page
Click the “LAN ➞ Advanced” button to view and set four advanced LAN settings:
LAN Keep-Alive: If you are logged in as an administrator, this is how many seconds the web pages may be
unused (idle) before the power supply automatically logs you out.
The default is 1800 seconds = 30 minutes.
Ping Server: ‘Ping’ is a network utility that allows the a computer to verify communication with the LAN
power supply. This service may be disabled in the “Modify” panel.
Auto-Negotiate: This shows what network speed the LAN card is allowed to operate at.
VXI Discovery: This is a protocol which allows the network server to detect what instruments are connected
to the LAN. It may be disabled in the “Modify” panel for security reasons.
Auto-MDIX: This service is always enabled in the power supply. The power supply LAN connection will
always detect a patch or cross-over cable.
Modify: After logging in, click this button to open the window shown below.
28
