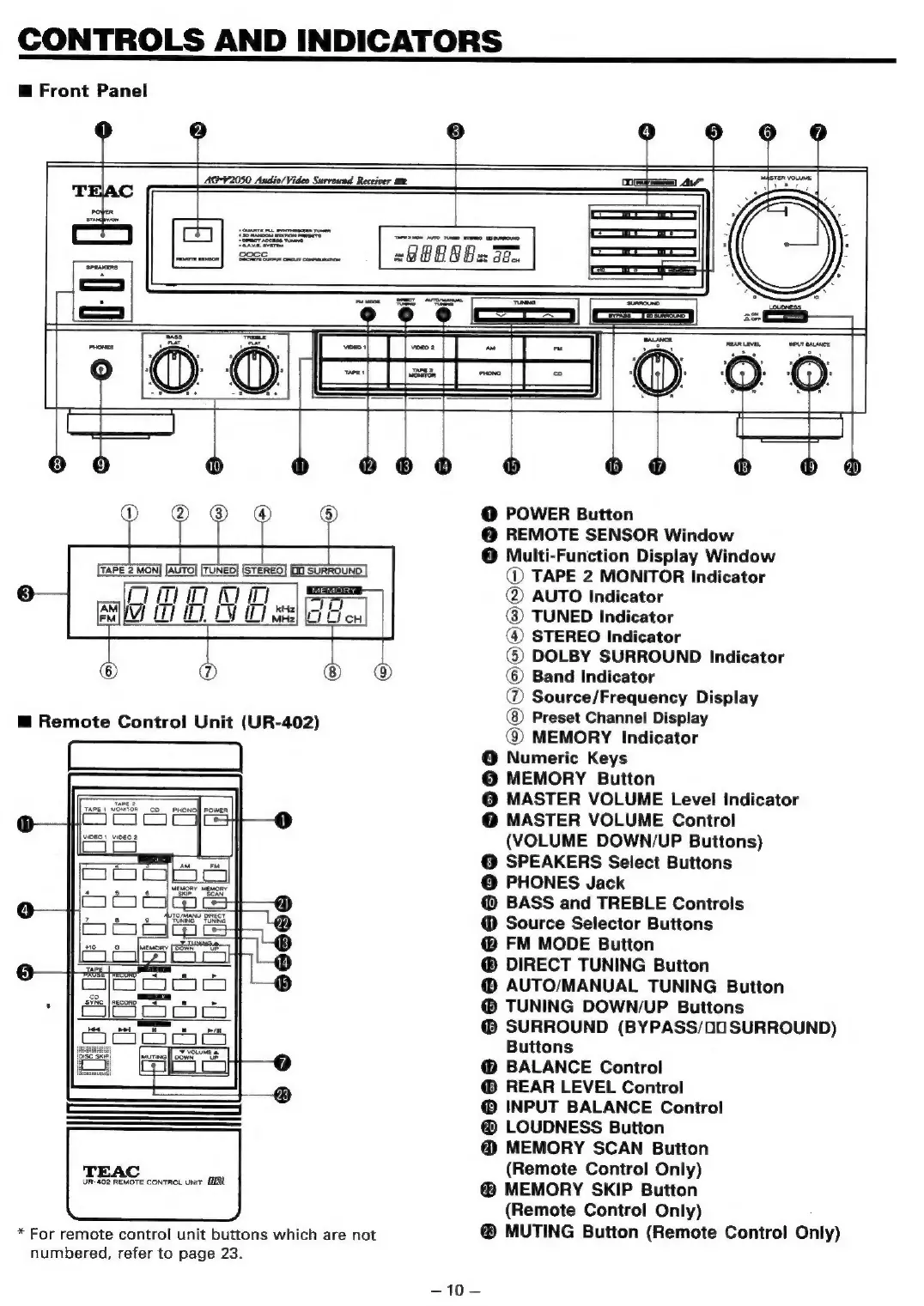

CONTROLS AND INDICATORS
@ Front Panel
«GBG8Bx te
@ POWER Button
@ REMOTE SENSOR Window
© Multi-Function Display Window
@ TAPE 2 MONITOR Indicator
@ AUTO Indicator
@) TUNED Indicator
@) STEREO Indicator
@ DOLBY SURROUND Indicator
® Band Indicator
@ Source/Frequency Display
Preset Channel Display
@ MEMORY Indicator
© Numeric Keys
@ MEMORY Button
@ MASTER VOLUME Level Indicator
@ MASTER VOLUME Control
(VOLUME DOWN/UP Buttons)
© SPEAKERS Select Buttons
© PHONES Jack
@ BASS and TREBLE Controls
@ Source Selector Buttons
@ FM MODE Button
@® DIRECT TUNING Button
@ AUTO/MANUAL TUNING Button
@® TUNING DOWN/UP Buttons
@ SURROUND (BYPASS/O0 SURROUND)
Buttons
@ BALANCE Control
@ REAR LEVEL Control
@® INPUT BALANCE Control
@ LOUDNESS Button
@ MEMORY SCAN Button
(Remote Control Only)
@ MEMORY SKIP Button
(Remote Control Only)
* For remote control unit buttons which are not @® MUTING Button (Remote Control Only)
numbered, refer to page 23.
