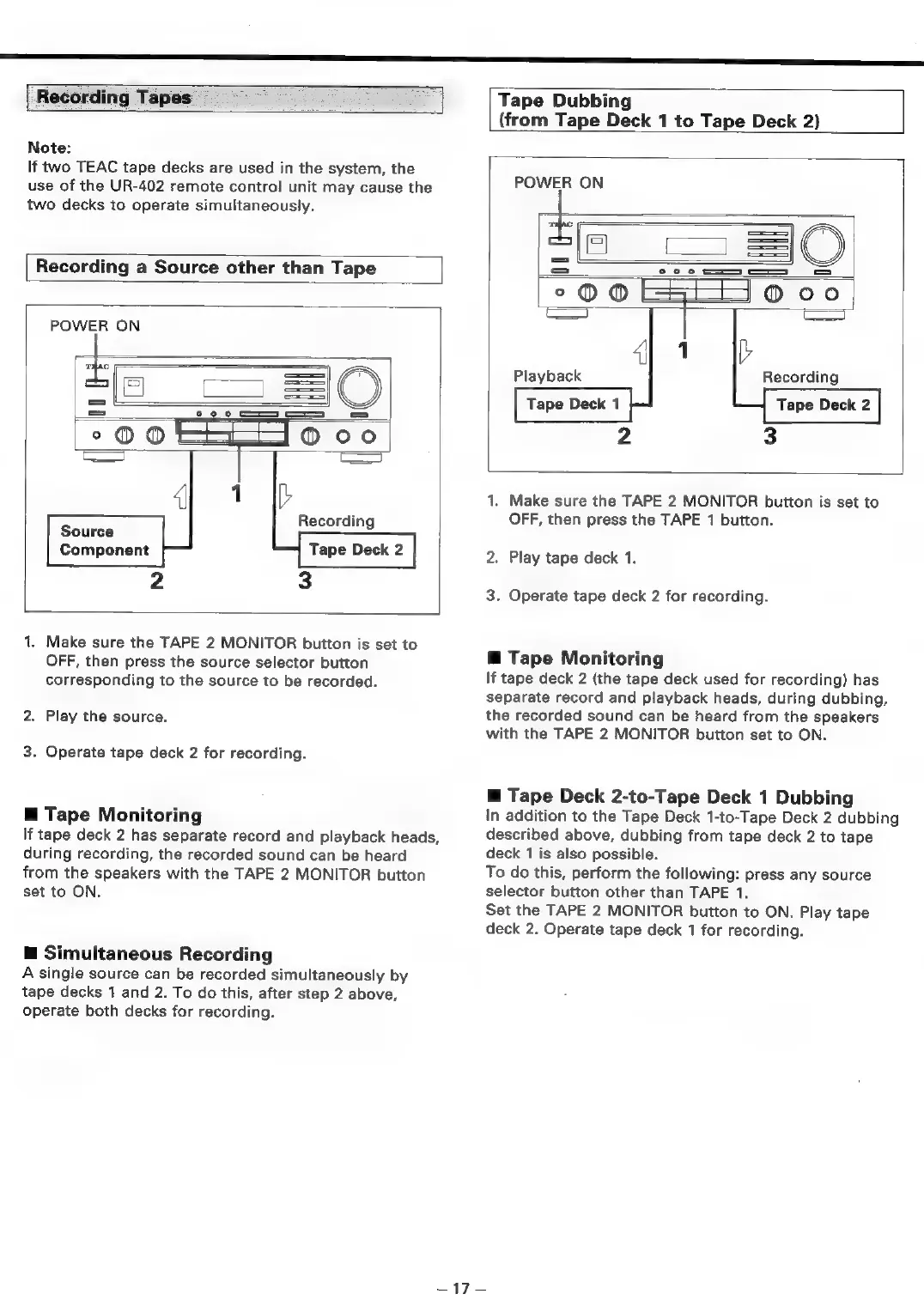

Teac AG-V2050 - Recording a Source Other than Tape; Recording Tapes; Tape Dubbing

Recording Tapes ~
Note:
If two TEAC tape decks are used in the system, the
use of the UR-402 remote control unit may cause the
two decks to operate simultaneously.
Recording a Source other than Tape
POWER ON
JJ
ll
1O
@ 00)
—
|
Source
Component
1. Make sure the TAPE 2 MONITOR button is set to
OFF, then press the source selector button
corresponding to the source to be recorded.
2. Play the source.
3. Operate tape deck 2 for recording.
@ Tape Monitoring
If tape deck 2 has separate record and playback heads,
during recording, the recorded sound can be heard
from
the
speakers
with
the
TAPE
2
MONITOR
button
set to ON.
@ Simultaneous Recording
A single source can be recorded simultaneously by
tape decks 1 and 2. To do this, after step 2 above,
operate both decks for recording.
Tape Dubbing
(from Tape Deck 1 to Tape Deck 2)
POWER ON
i 22/0
@oo
aed
1 |P
Recording
Tape Deck 2
1. Make sure the TAPE 2 MONITOR button is set to
OFF, then press the TAPE 1 button.
2. Play tape deck 1.
3. Operate tape deck 2 for recording.
@ Tape Monitoring
If tape deck 2 (the tape deck used for recording) has
separate record and playback heads, during dubbing,
the recorded sound can be heard from the speakers
with the TAPE 2 MONITOR button set to ON.
™@ Tape Deck 2-to-Tape Deck 1 Dubbing
In addition to the Tape Deck 1-to-Tape Deck 2 dubbing
described above, dubbing from tape deck 2 to tape
deck 1 is also possible.
To do this, perform the following: press any source
selector button other than TAPE 1.
Set the TAPE 2 MONITOR button to ON. Play tape
deck 2. Operate tape deck 1 for recording.
