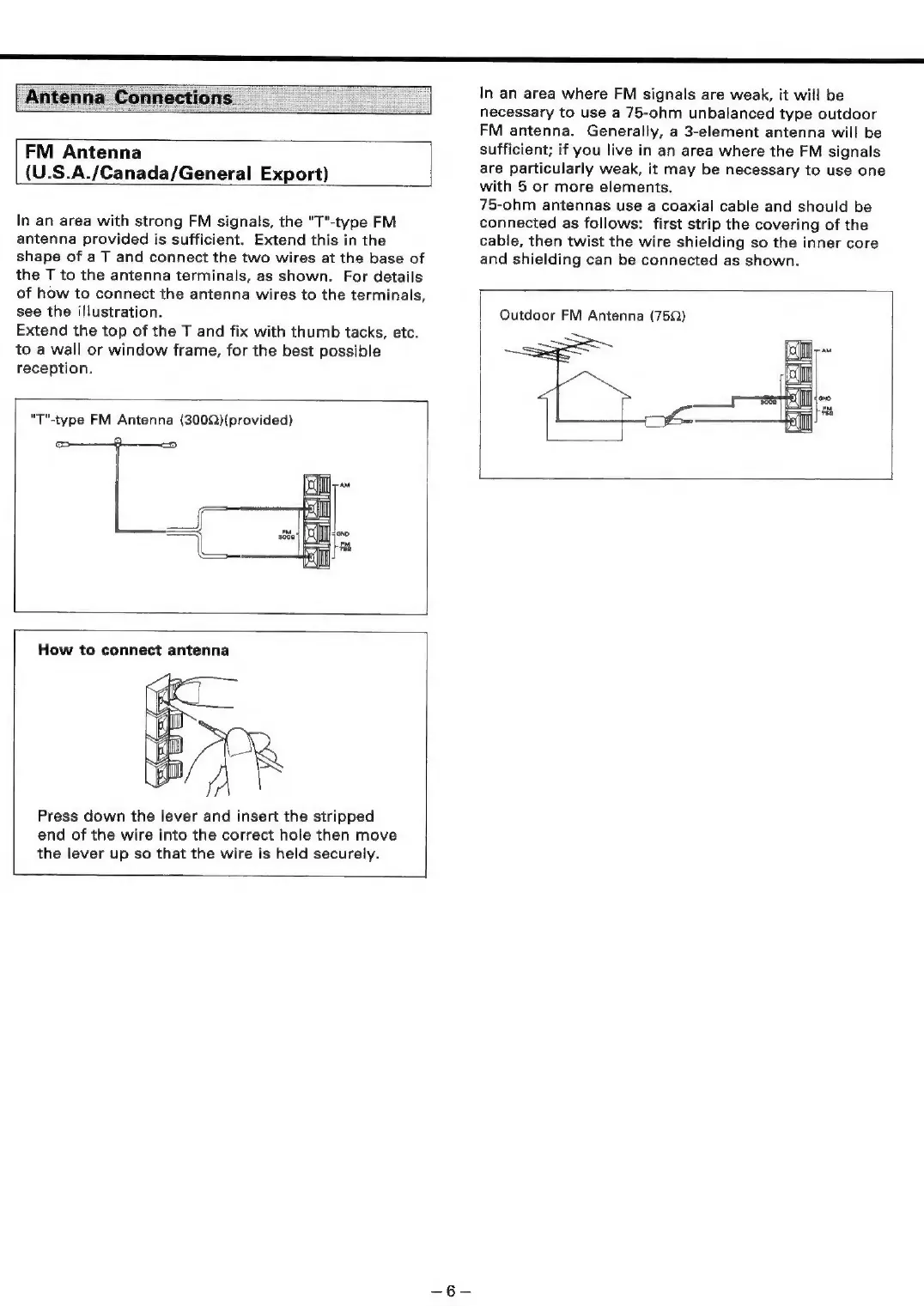

| Antenna Connections
FM Antenna
(U.S.A./Canada/General Export)
In an area with strong FM signals, the "T"-type FM
antenna provided is sufficient. Extend this in the
shape of a T and connect the two wires at the base of
the T to the antenna terminals, as shown. For details
of how to connect the antenna wires to the terminals,
see the illustration.
Extend the top of the T and fix with thumb tacks, etc.
to a wall or window frame, for the best possible
reception.
7
"T"-type FM Antenna (300)(provided)
=)
————4
FM LOND
680
Fm
ad
How to connect antenna
Press down the lever and insert the stripped
end of the wire into the correct hole then move
the lever up so that the wire is held securely.
In an area where FM signals are weak, it will be
necessary to use a 75-ohm unbalanced type outdoor
FM antenna. Generally, a 3-element antenna will be
sufficient; if you live in an area where the FM signals
are particularly weak, it may be necessary to use one
with 5 or more elements.
75-ohm antennas use a coaxial cable and should be
connected as follows: first strip the covering of the
cable, then twist the wire shielding so the inner core
and shielding can be connected as shown.
Outdoor FM Antenna (75Q)
[
ies
oa
