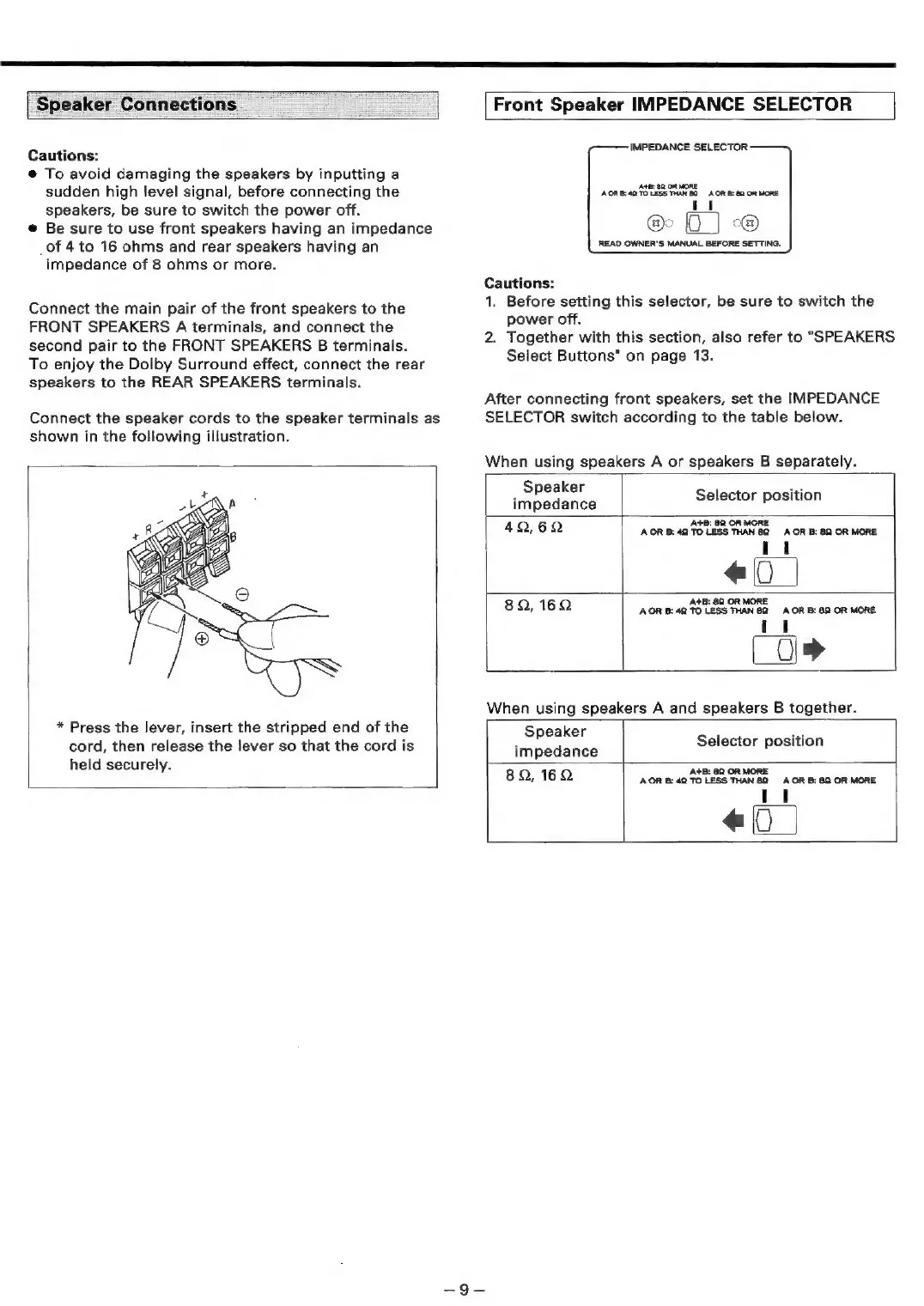

Teac AG-V2050 - Speaker Connections; Front Speaker IMPEDANCE SELECTOR

Speaker Connections. Front Speaker IMPEDANCE SELECTOR
Cautions:
@ To avoid damaging the speakers by inputting a
sudden high level signal, before connecting the
speakers, be sure to switch the power off.
® Be sure to use front speakers having an impedance
of 4 to 16 ohms and rear speakers having an
impedance of 8 ohms or more.
Connect the main pair of the front speakers to the
FRONT SPEAKERS A terminals, and connect the
second pair to the FRONT SPEAKERS B terminals.
To enjoy the Dolby Surround effect, connect the rear
speakers to the REAR SPEAKERS terminals.
Connect the speaker cords to the speaker terminals as
shown in the following illustration.
* Press the lever, insert the stripped end of the
cord, then release the lever so that the cord is
held securely.
IMPEDANCE SELECTOR
‘A+B: 89 OR MORE
AORB:40 TO LESS THAN 89 AOR B: 82 OR MORE
READ OWNER’S MANUAL BEFORE SETTING.
Cautions:
1. Before setting this selector, be sure to switch the
power off.
2. Together with this section, also refer to "SPEAKERS
Select Buttons" on page 13.
After connecting front speakers, set the IMPEDANCE
SELECTOR switch according to the table below.
When using speakers A or speakers B separately.
Speaker kes
impedance Selector position
42,62 AOR B40 70 LESS THAN 6G AOR B: 89 OR MORE
Ll
8Q, 16.Q AOR B40 70 Less TAN EG AOR B: B2 OR MORE
Ll
When using speakers A and speakers B together.
; Speaker Selector position
impedance
8Q, 162 A+B: 82 OR MORE
AOR B: 40 TO LESS THAN 89 AOR B: 89 OR MORE
«01
