TechniSat DIGITRADIO UP 1 User Manual

The DIGITRADIO UP1 can be mounted both horizontally and vertically.

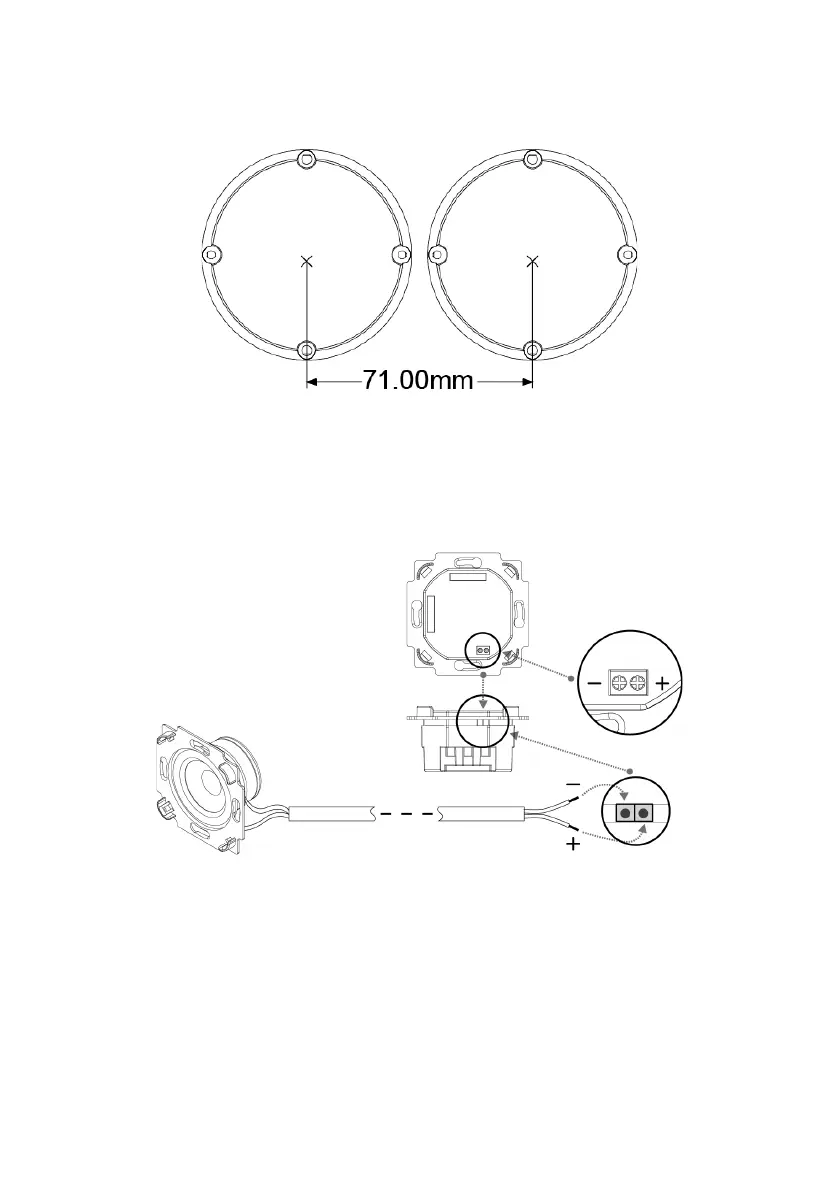

With recessed sockets, ensure that the distance is correct according to the following
illustration:
Speaker cable connection:
connect the blue speaker cable (+) to the speaker connection marked (+) on the
radio unit and tighten using a suitable Phillips screwdriver.
Connect the brown speaker cable (-) to the speaker connection marked (-) on the
radio unit and tighten using a suitable Phillips screwdriver.
Power connection:
Connect the phase for domestic wiring (AC 100-240V, 50/60Hz) to the terminal
marked (L) on the radio unit and tighten using a screwdriver.
Connect the neutral connector to the terminal marked (N) on the radio unit and
tighten using a screwdriver.
The antenna is connected to the terminal marked (Antenna) on the radio unit.
28

TechniSat DIGITRADIO UP 1 Specifications

General

Display type	LCD
Backlight color	Blue
Built-in display	Yes
Display diagonal	1.7 \
Radio type	Wall mounted
Tuner type	Analog & digital
FM band range	87.5 - 108 MHz
Supported radio bands	DAB+, FM
Preset stations quantity	20
Bluetooth profiles	A2DP, AVRCP
Docking station included	No
Apple docking compatibility	Not supported
Package depth	105 mm
Package width	185 mm
Package height	95 mm
Package weight	352 g
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	5 - 90 %
Bluetooth version	2.1+EDR
Number of built-in speakers	1
RMS rated power	2 W
Power source	AC
AC input voltage	230 V
AC input frequency	50 Hz
Product color	Black

Weight and Dimensions

Depth	45 mm
Width	151 mm
Height	80 mm
Weight	250 g
