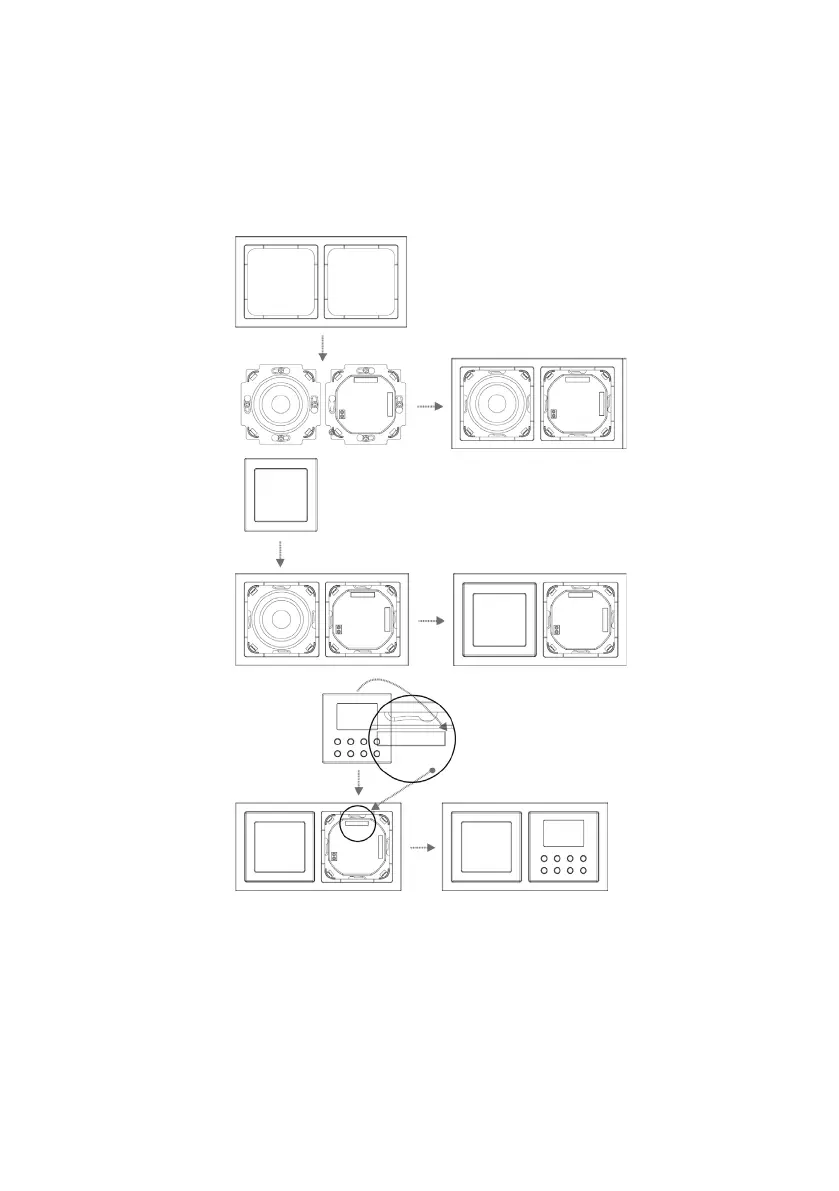

Aer successfully installing the radio unit and the speaker, the frame is aached by
way of the speaker cover (Figure 1 - 2). In doing so, fit the speaker cover carefully by
pressing gently on the speaker until it engages.
The display unit is then pressed carefully onto the radio unit, taking into account the
alignment of the plug contact strip, until it engages (Figure 3).
Horizontal layout:
1
2
3
32
