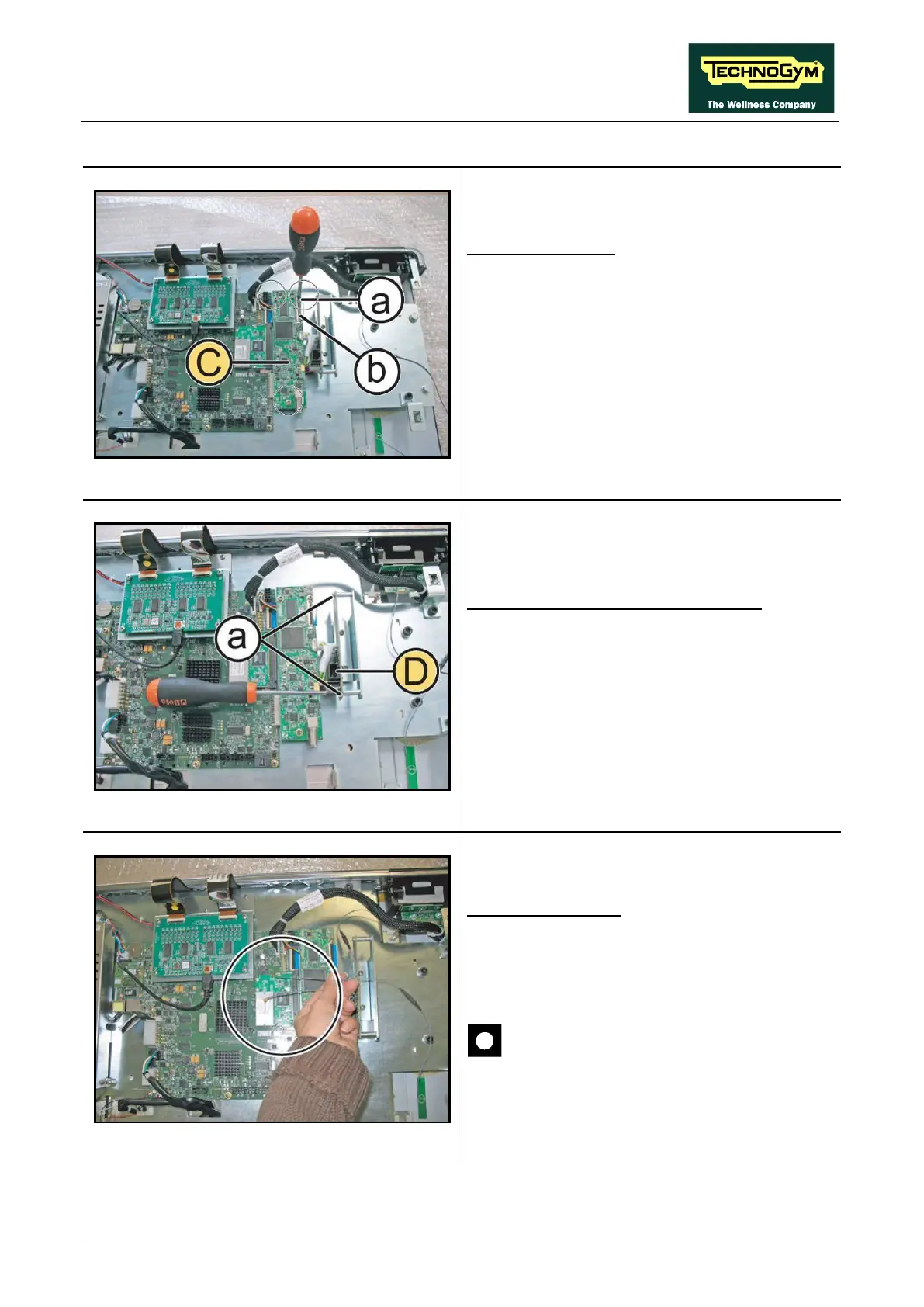

Figure 7.5-5
TUNER board (C):
1. Unplug the flat cable (a).
2. Back off the 3 screws (b)
using a small
Phillips screwdriver.
3. Remove the TUNER Board (C).
Figure 7.5-6
USB and C-Safe connector board (D):
1. Back off the 3 screws (a) using a small
Phillips screwdriver.
2. Remove the USB and C-Safe board (D).
Figure 7.5-7
Wireless Board (E):
1.
Unplug the 2 wireless antenna connectors
indicated in the figure.
CAUTION: Be careful not to break the
antenna cables.
Continued on following page…
