WARNING: CAREFULLY FOLLOW THE PROCEDURE EXPLAINED BELOW.
[1]: PROCEDURE FOR REMOVING THE ANGLE SENSOR BOARD AND
CHECKING THE CONDITION OF THE ANGLE SENSOR.
[1A]: REMOVING THE ANGLE SENSOR BOARD: Carefully follow the procedure explained
in paragraph “7.14.1 disassembling the angle sensor board”.
[1B]: CHECKING THE CONDITION OF THE ANGLE SENSOR.
Check a) the condition of the soldering; b) the condition of the wiring.

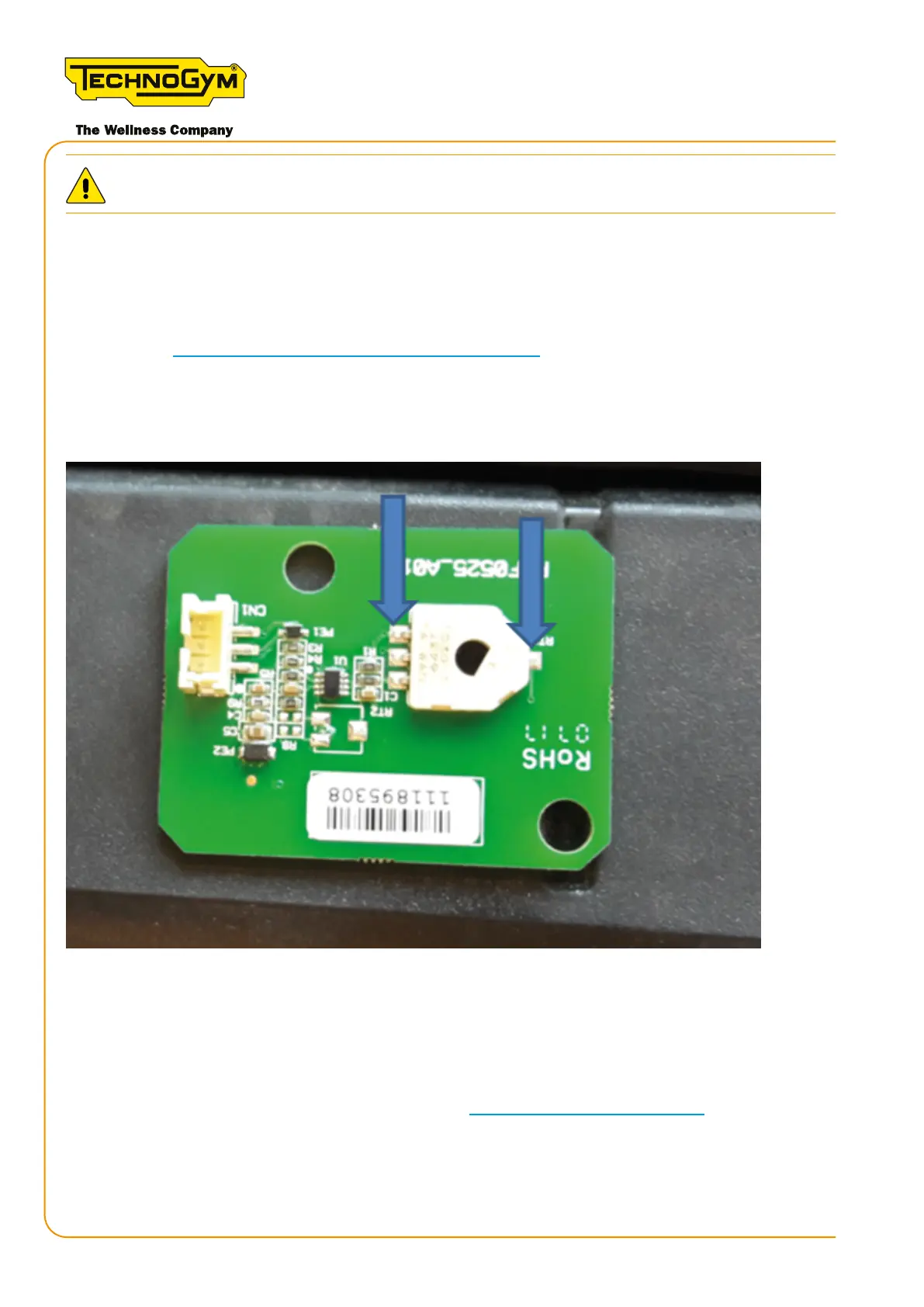

Figure 38 - details of solder check
[2]: ASSEMBLING THE ANGLE SENSOR BOARD: carefully follow the procedure
explained in paragraph “7.14.2 assembling the angle sensor board”.
[3]: REPLACING THE PIN: for the details, see “7.8.2 FITTING THE PIN”.
(*): for the details, see “6.1 Procedure for replacing components”, Low Kit section.
