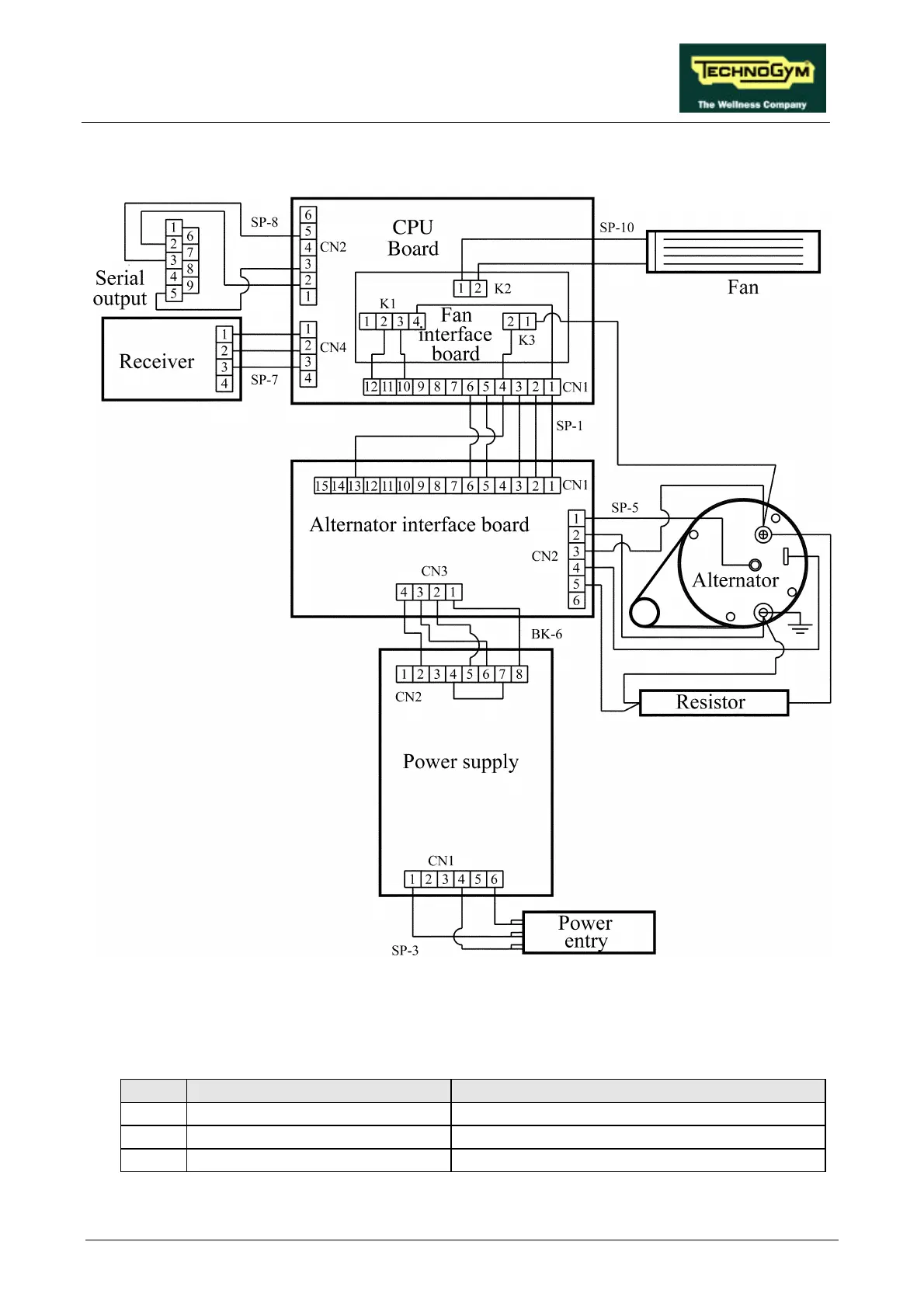

2.6. WIRING DIAGRAM
2.6.1. CONNECTORS
• CPU board
name type of connector connection
CN1 AMP MATE-N-LOCK 12-pin F. to alternator interface board
CN2 AMP MODU II 6-pin M. to serial connector
CN4 AMP MODU II 4-pin M. to cardio receiver
