Technogym spin trainer - Disassembling the Bushings

SPIN TRAINER: Service & Maintenance Manual - rev. 2.0
Page 7.15
7.15. DISASSEMBLING THE BUSHINGS

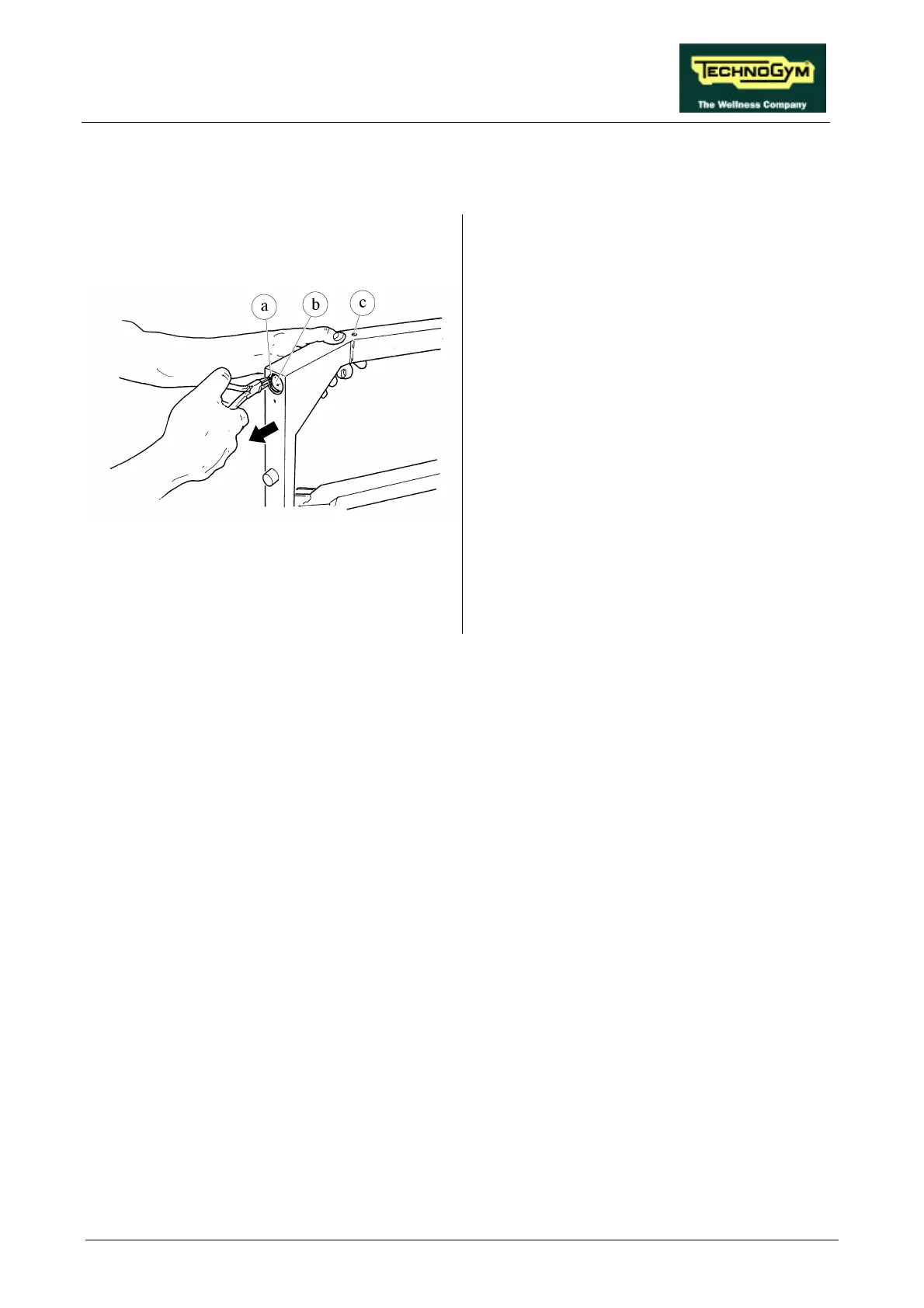

Figure 7.15-1
Carry out the procedure described in paragraph
7.14. “Disassembling the rear hub supporting
frame ”.
With the rear hub frame placed on a bench, and
working from both sides:
1. Remove the snap ring a securing the
BUSHINGS with the special pliers.
2. Remove the first BUSHING b and its spacer
using a hooked tool.
3. Push through hole c until the second
BUSHING comes out.
To reassemble the BUSHINGS, carry out the
above steps in reverse order.
