7.14. DISASSEMBLING THE REAR HUB SUPPORTING FRAME

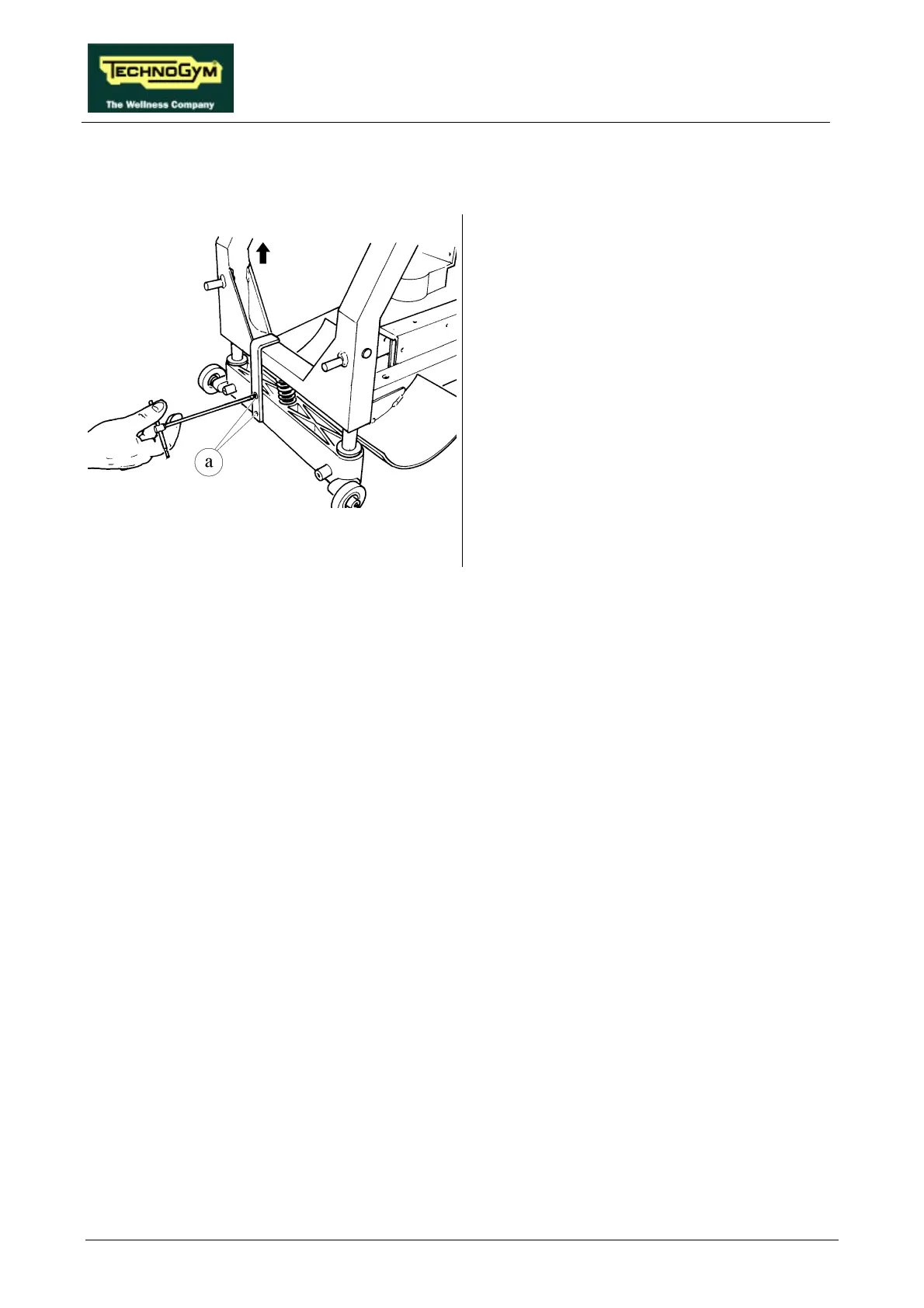

Figure 7.14-1
Carry out the procedure described in paragraph
7.8. "Disassembling the guard".
1. Unscrew the two screws a fixing the limit
stop bracket to the machine frame using 4-
mm hex T-wrench.
2. Remove the bracket.
3. Pull the REAR HUB SUPPORTING
FRAME upward to remove.
To reassemble the REAR HUB SUPPORTING
FRAME, carry out the above steps in reverse
order.
