Technogym spin trainer - Disassembling the Front Hub Shock Absorbers

SPIN TRAINER: Service & Maintenance Manual - rev. 2.0
Page 7.17
7.17. DISASSEMBLING THE FRONT HUB SHOCK ABSORBERS
VersionA:

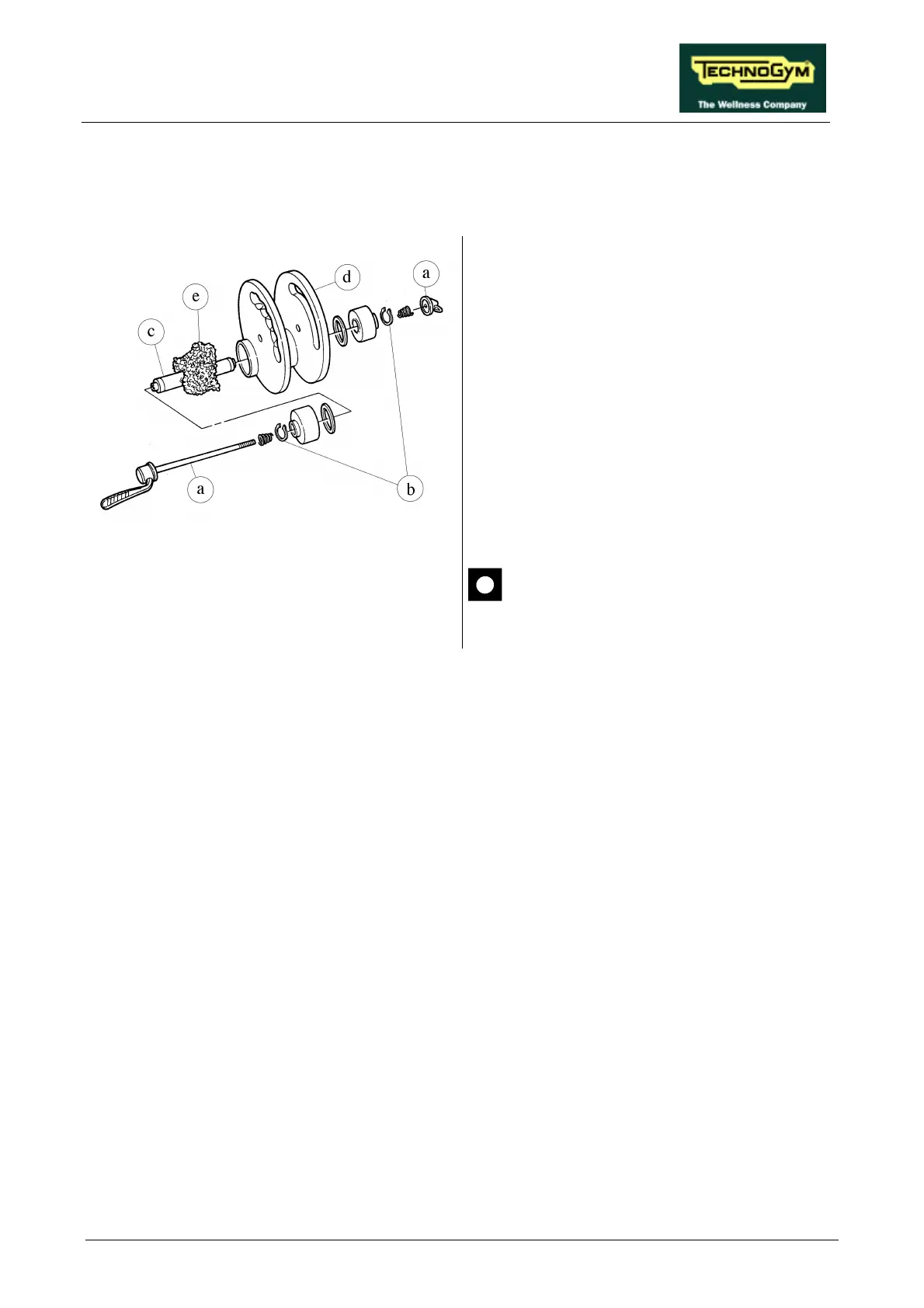

Figure 7.17-1
1. Turn off the machine and unplug the mains
lead from the wall outlet.
2. Disassemble bicycle fork clamp a.
3. Remove snap ring b using the special pliers.
4. Remove pin c.
5. Working through the slot in support d, use a
pointed tool to push out the 2 SHOCK
ABSORBERS, knocking against the edges.
To reassemble the SHOCK ABSORBERS, carry
out the above steps in reverse order.
Always reassemble the steel wool to
ensure grounding of the bicycle frame.
