SPIN TRAINER: Service & Maintenance Manual - rev. 2.0
Page 7.19
7.18. DISASSEMBLING THE ALTERNATOR BRUSHES

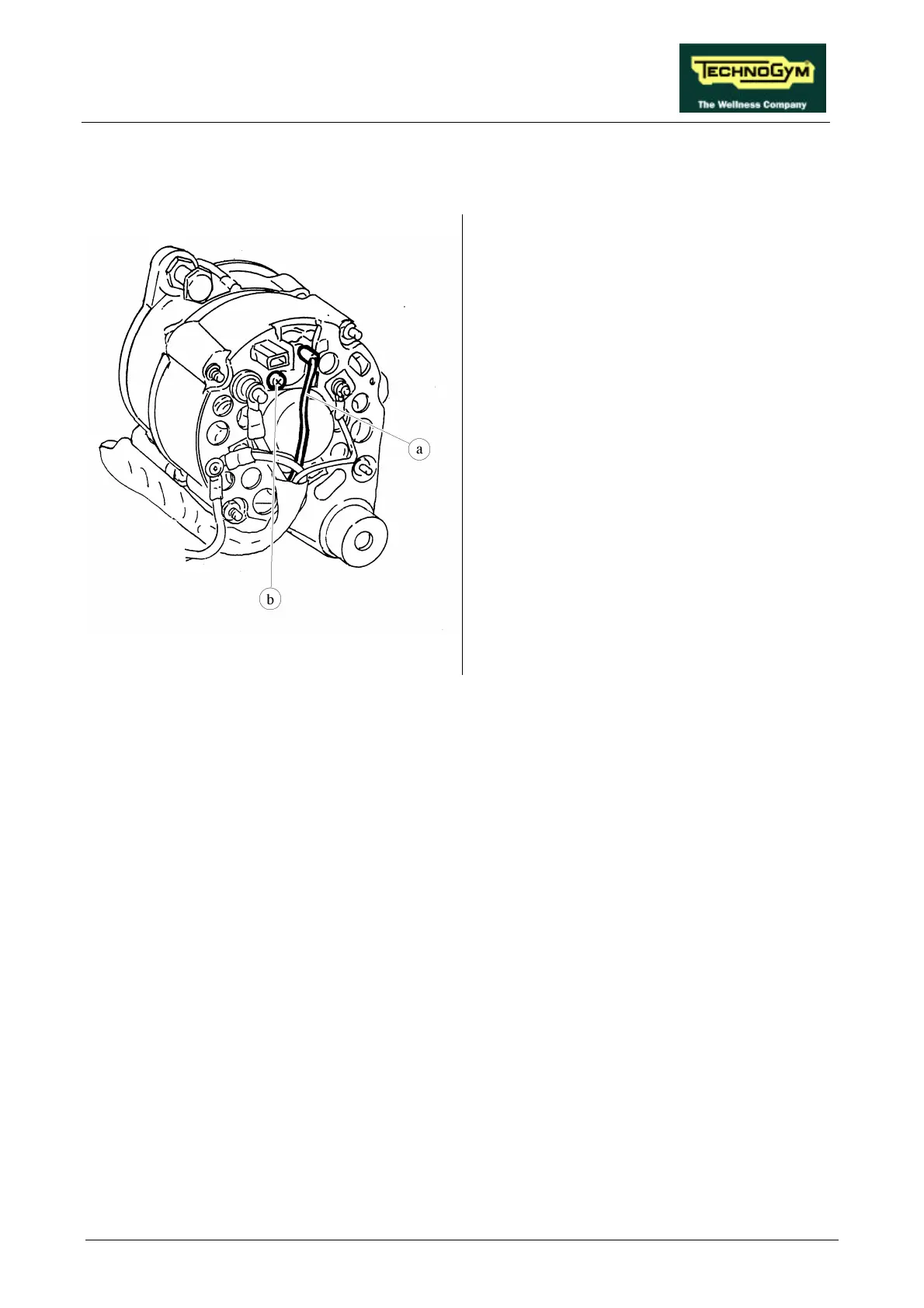

Figure 7.18-1
Carry out the procedure described in paragraph
7.8. “Disassembling the guard ”.
1. Disconnect alternator cable a.
2. Unscrew BRUSH group fixing screw b.
3. Remove the BRUSHES.
To reassemble the BRUSHES, carry out the
above steps in reverse order.
