SPIN TRAINER: Service & Maintenance Manual - rev. 2.0
Page 7.4
7.4. DISASSEMBLING THE CPU BOARD

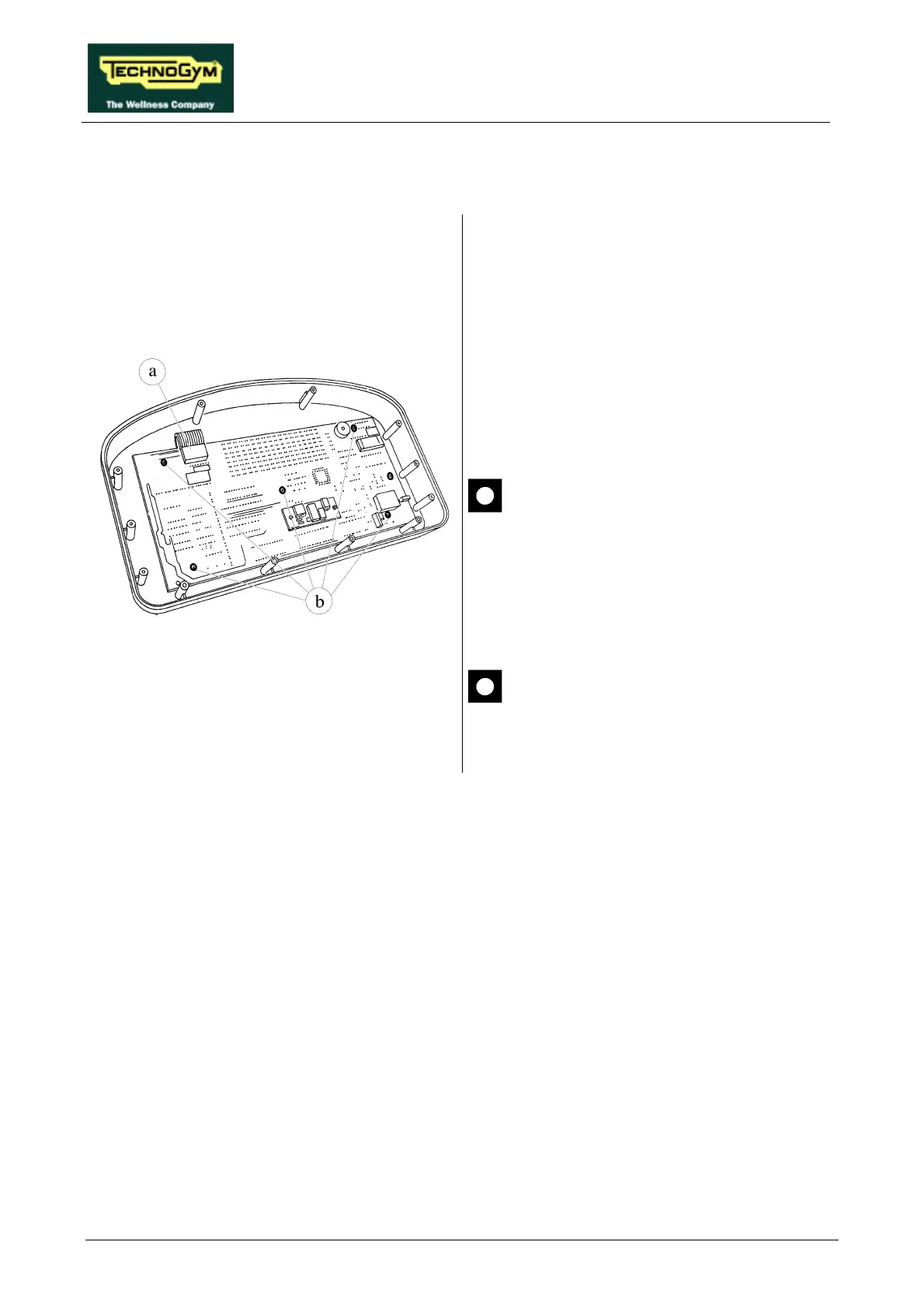

Figure 7.4-1
Carry out the procedures described in paragraph
7.1. “Disassembling the display” and 7.3.
“Disassembling the fan control board”.
With the display placed on a work bench:
1. Disconnect keyboard connector a.
2. Remove the 5 screws b, using a small Phillips
screwdriver.
3. Remove the CPU board.
These procedures must be carried out on
a work bench.
To reassemble the CPU BOARD, carry out the
above steps in reverse order and reassemble the
fan control board disassembled previously.
After completing this operation, carry
out machine calibration as instructed in
paragraph 8.2.
