Technogym spin trainer - Disassembling the Runner Bars

SPIN TRAINER: Service & Maintenance Manual - rev. 2.0
Page 7.16
7.16. DISASSEMBLING THE RUNNER BARS

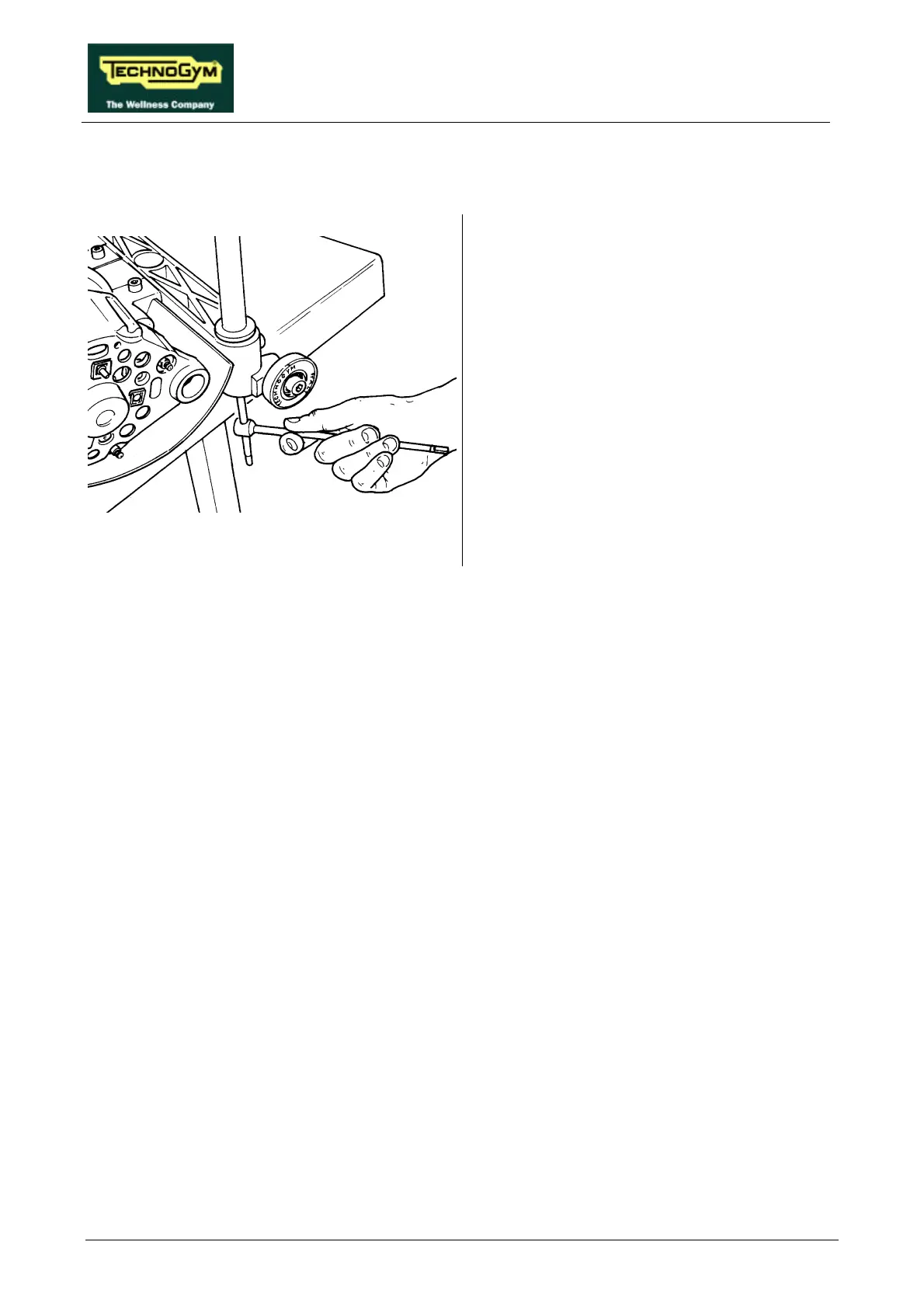

Figure 7.16-1
Carry out the procedure described in paragraph
7.14. “Disassembling the rear hub supporting
frame ”.
For both RUNNER BARS:
1. Remove the screws which clamp the
RUNNER BARS to the machine frame using
an 8-mm T-wrench.
To reassemble the RUNNER BARS, carry out
the above steps in reverse order.
