7.13. DISASSEMBLING THE FLYWHEEL AND ALTERNATOR
GROUP

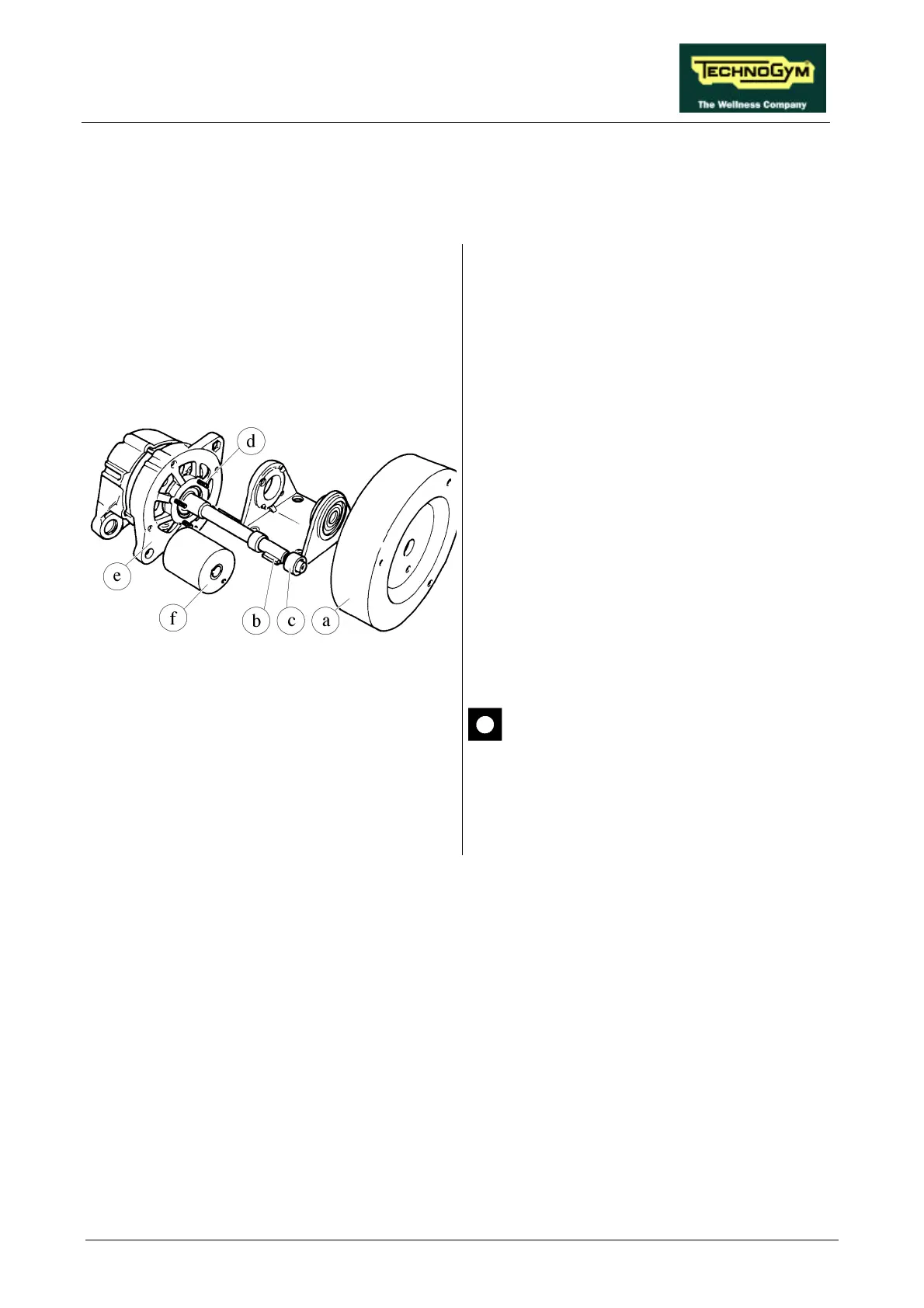

Figure 7.13-1
Carry out the procedure described in 7.11.
“Disassembling the rear assembly”.
1. Unscrew the nut on the flywheel side using a
24-mm socket wrench.
2. Back off the dowel on the inner side of the
flywheel using a 2.5-mm hex T-wrench.
3. Remove flywheel a.
4. Remove tab b.
5. Remove the flywheel-side spacer c.
6. Unscrew the four nuts of the pins which fix
the support on alternator d using a 10-mm
wrench.
7. Remove alternator e.
8. Remove roller f .
To reassemble the ALTERNATOR and
FLYWHEEL group, carry out the above steps in
reverse order.
To avoid bending the alternator shaft
during reassembly, back off the 4
alternator fixing screws from its
connector side, and tighten them again
after completing the procedure.
